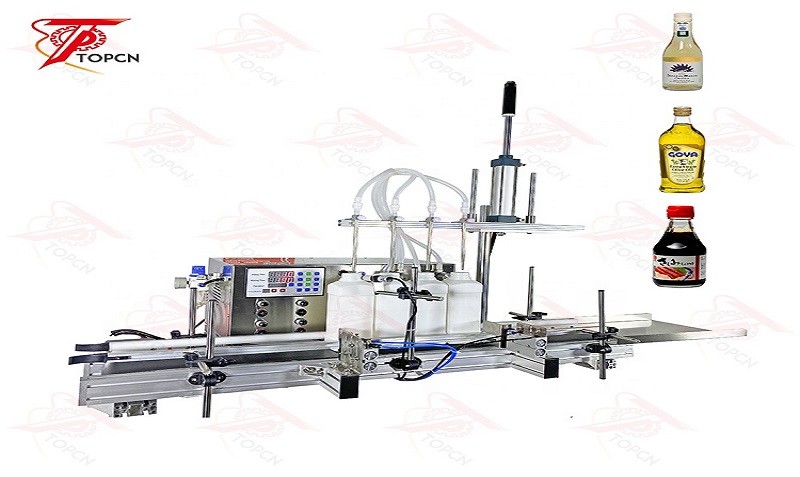

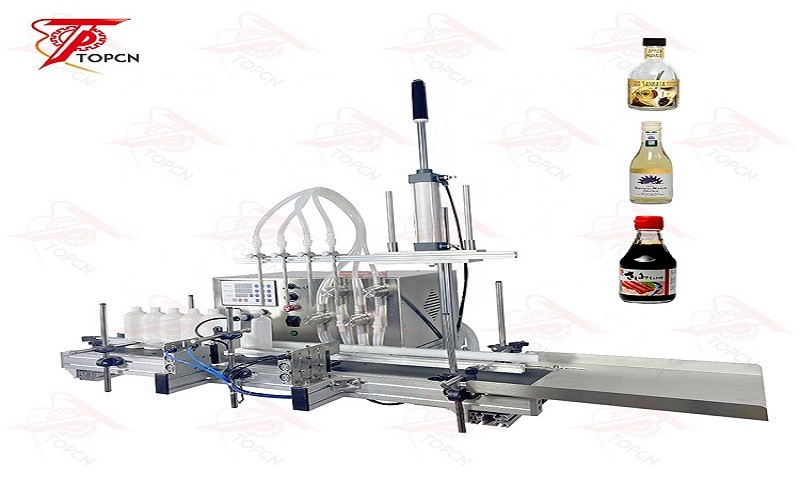

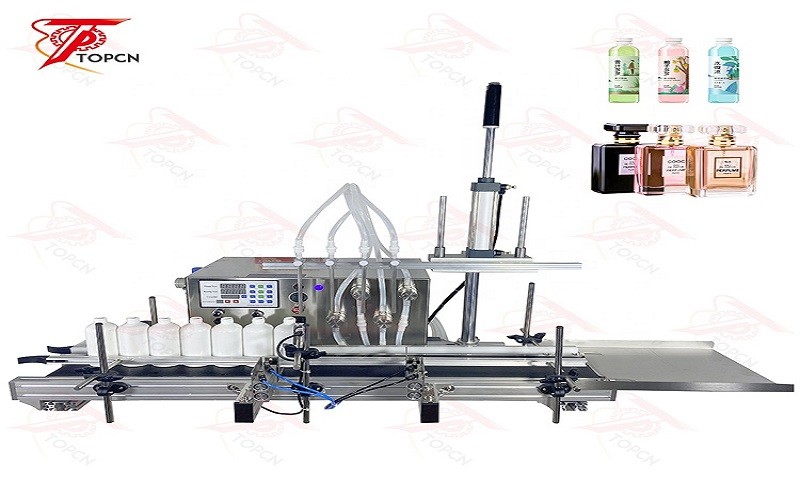

Automatic 4 Heads Diving Head Magnetic Pump Liquid Machine

Application
Description
Products Parameters
Video
Package&Shipping
FAQ

Application:This machine is suitable for filling corrosive and egranular liquid like eyewash, solvent, cooking oil, toner or a little foamy liquid like care solution, detergent.

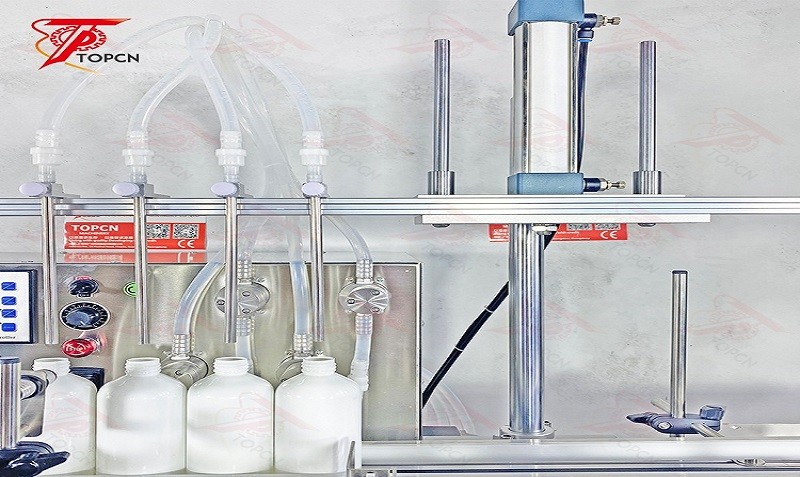

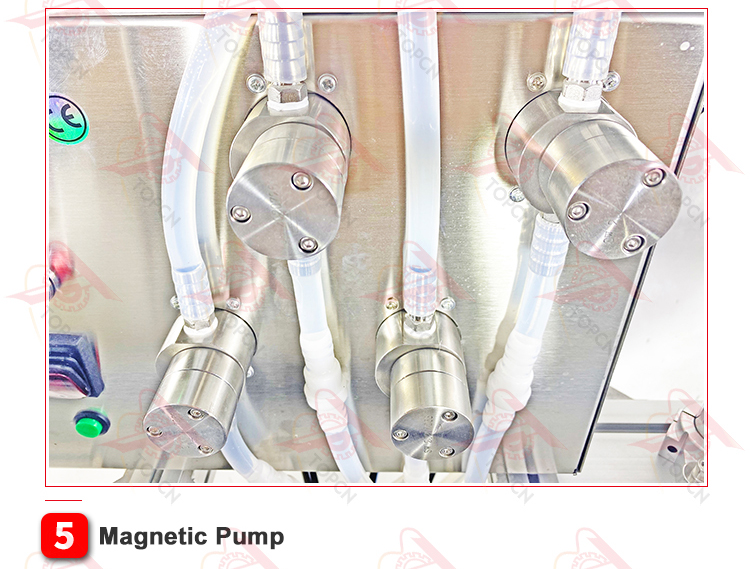

This automatic filling machine is with small machine body, and it is with diving nozzles, designed for filling foamy liquid like shampoo, hand sanitizer, care solution, detergent etc. It can fill liquid accurately. Machine with magnetic pump is good choice for low viscous corrosive liquid, a little foamy liquid. 316 stainless steel pump can use for very high temperature liquid fill. It is also suitable for small laboratories.

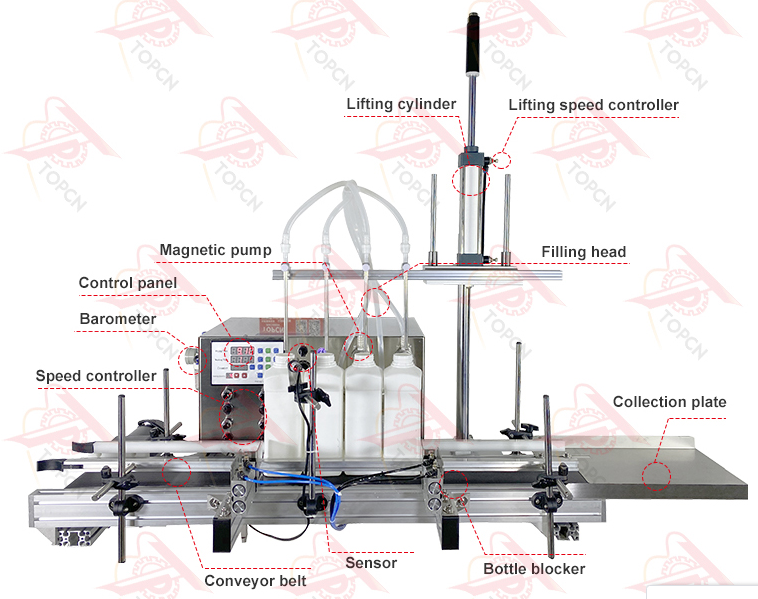

Automatic 4 Heads Diving Head Magnetic Pump Liquid Machine

Specification

Power supply	110/220V 50-60HZ
Maximum flow velocity	5500ml/min(Each nozzle and base on water)

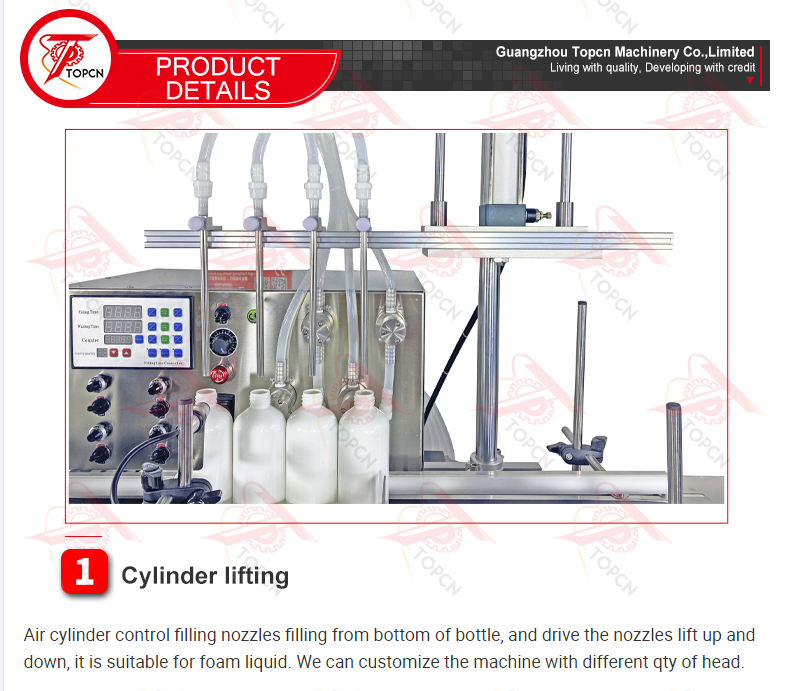

Lifting type	Pneumatic lifting
Working speed	1500-3000 bottles/hour(depends on bottle size and liquid)

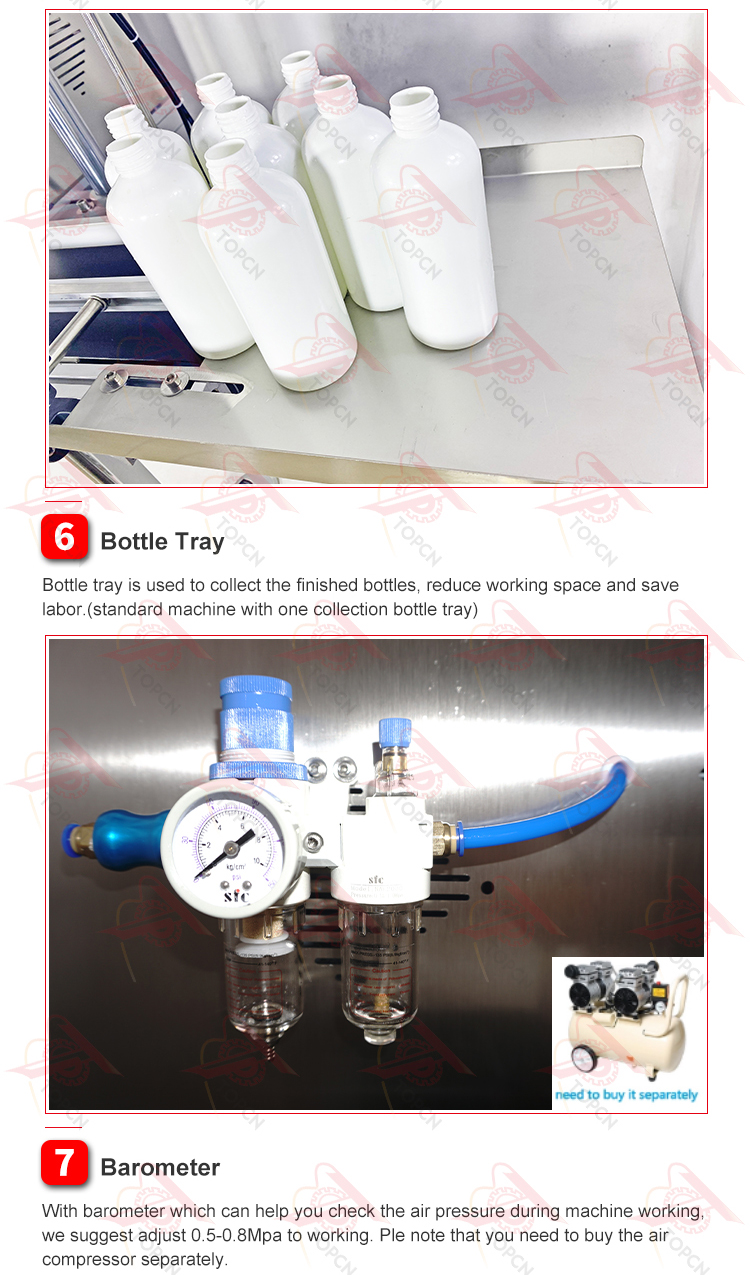

Air pressure	0.3-0.4MPa
Filling accuracy	≤±1% (For water)
Diameter of filling nozzle	6/8mm

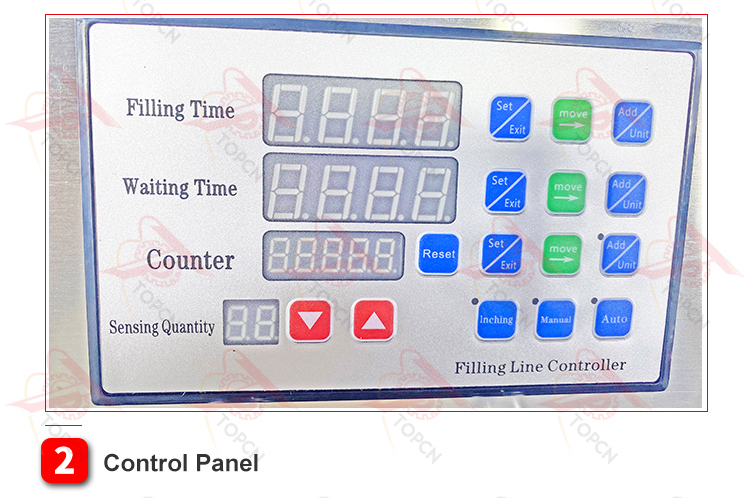

Delay Range	0.01-999.9s
Count Range	1-99999 Times

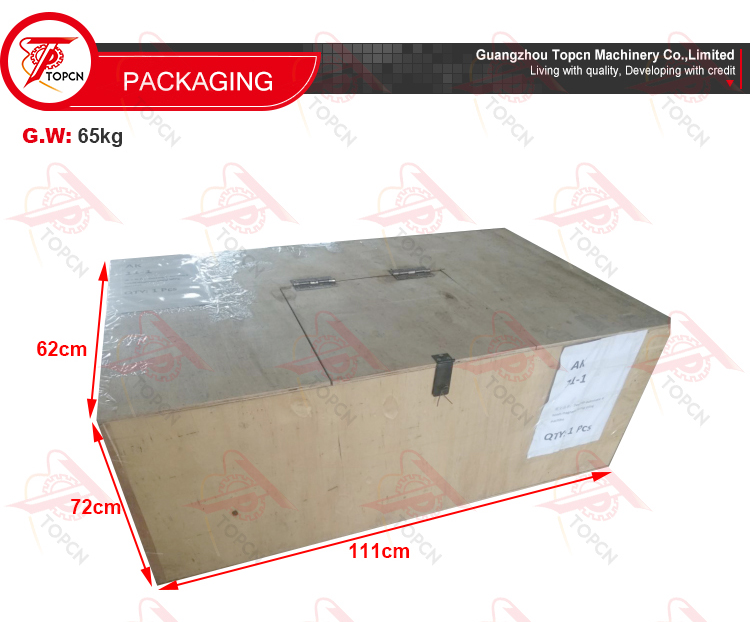

Package Size	About 1110650420mm
Package weight	About 54kg
Volume weight	68kg
Filling Volume	3-1000ml(220V)3-500ml(110V)
Size of air compressor connector	OD 8mm

Automatic 4 Heads Diving Head Magnetic Pump Liquid Machine

FAQ

Q1: Are you a machine manufacturer or trading company?A1: We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory!Q2: How do you guarantee this machine normally operating?A2: Every machine is tested by our factory and other client before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.
Q3: How can I install this machine when it arrives?A3: We will send the engineers overseas to help client installing, commissioning and training.
Q4: Could I choose the language on touch screen?A4: It's no problem. You can choose Spanish, French, Italian, Arabic, Korean, etc,.
Q5: What should I do to choose the best machine for us?A5: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider.
2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine.
3) At last tell me the inner diameter of your container to help us choose the best diameter of the filling head for you.
Q6: Do you have manual or operation video for us to know more about the machine?A6: Yes, we will send you the manual and operation video after you ask for us.
Q7: If there's some spare parts that broke, how to solve the problem?A7: Yes, we will send you the manual and operation video after you ask for us.
Q8: If there's some spare parts that broke, how to solve the problem?A8: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
Q9: Do you have manual or operation video for us to know more about the machine?A9: Yes, we will send you the manual and operation video after you ask for us.
Q10: If there's some spare parts that broke, how to solve the problem?A10: Yes, we will send you the manual and operation video after you ask for us.
Q11: If there's some spare parts that broke, how to solve the problem?
A11: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
