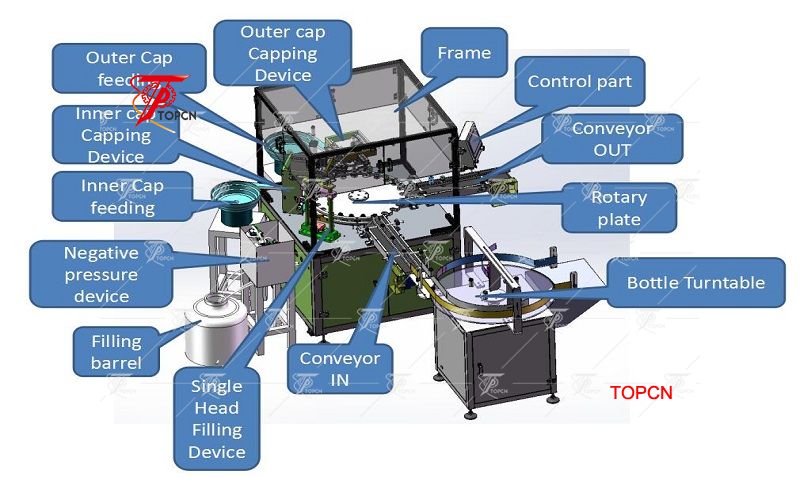

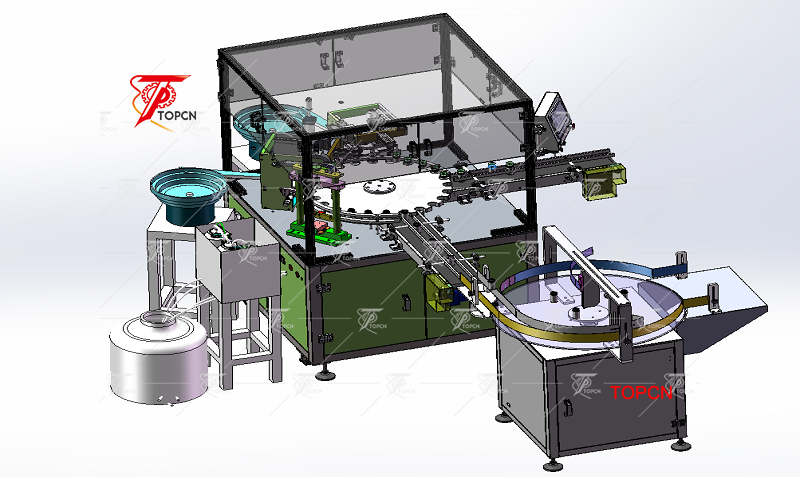

Automatic eyedrops filling capping machine line manufacturer is The machine is used for filling, stoppering and capping for 5-30ml plastic or glass eye drop bottles;The cosine acceleration cam drive makes screw-capping nozzle up and down.this eyedrop filling machine consists of bottle feeding, tracing filling device, stoppering system, bottle outlet track and electric control system. It depends on synchronized filling device to drive the filling needle to filling the liquid. the turntable and screw conveyro feed the bottle.the filling needle is used as tracing filling. The fillng pump fills the liquid according to preset dosage of the electric control system. Finally, the bottles to to stppering roller to get half stoppered or full-stoppered and then be pushed out one by one

► Workflow: bottle unscrambling-- bottle washing (optional)-- filling-- adding dropper/(adding plug -- adding cap)-- screw capping--self adhesive labeling/shrink sleeve labeling (optional) --ribbon printing/inkjet printing (optional)-- cartoning (optional).

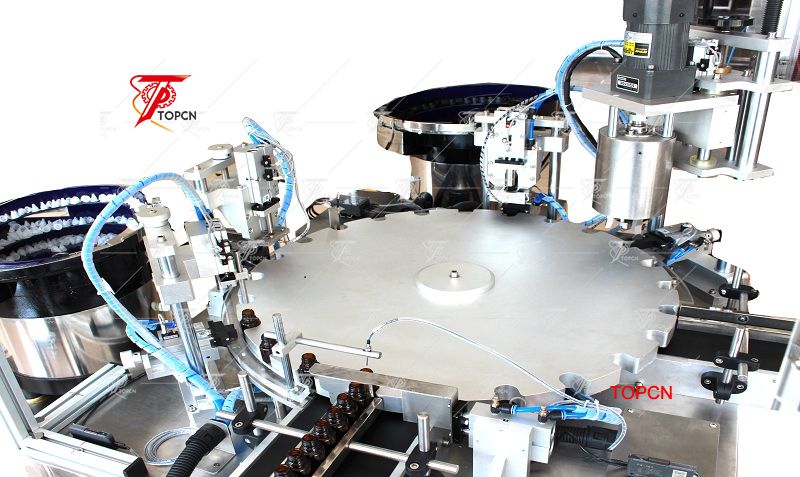

►This machine uses a  mechanical arm to screw caps, equipped with automatic sliding device, to prevent damage to the cap.

► Peristaltic pump or piston pump filling, accurate measurement, easy to control.

► Filling system has function of suck back, liquid no drip.

► Color touch screen display, PLC control system, no bottle no filling (only peristaltic pump)/ no adding plug/ no capping.

► The whole line is compact, high speed, high degree of automation, save the manpower cost.

►Main electrical elements well-known brands.

►Machine shell is made of 304 stainless steel, easy to clean, machine meets GMP requirements

►Operator interaction Even though filling machines are trending toward more automation, equipment must be easy for operators to use. More attention is being paid to designing intuitive human machine interface (HMI) with panels that are easier to use and read.

Automatic perfume production equipment filling line is used for the automatic bottle unscrambling, plugs & caps inserting & rotating by manipulator of perfume drops & all kinds of bottle + stopper + cap units. If it’s needed, bottle unscrambling or feeding can be equipped. No filling when no bottle; No plugging when no bottle; No capping when no stopper. The manipulator is used for the plugging & capping structure, and the pass rate gets to more than 99.9%. Its property is stable and reliable. The packing material can be customized, the isolating & protective system can be equipped, and the aseptic eye drop can be produced in this line. As to user’s demand, the configuration can be customized, so the requirement with different specification or different capacities can be satisfied.

Automatic small perfume bottle filling machine pocket perfume filling machine

Automatic essential oil vial perfume filling crimping collaring machine

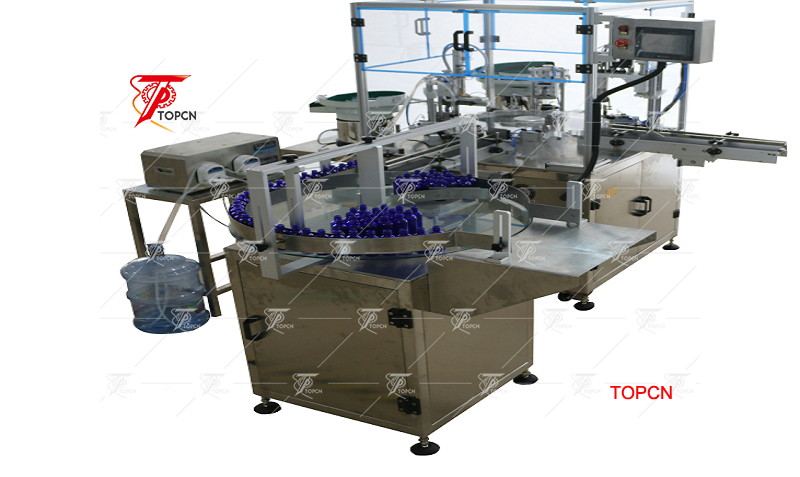

Automatic eyedrops filling capping machine line

Eye Drops filling adding plug and outer cap machine Eye drops bottle unscramble

1. DELIVERY LEAD TIME:

35-50 WORKING DAYS FOR THE SEMI AUTOMATIC MACHINE AFTER RECEIVED DEPOSIT

2. TERMS OF PAYMENT

BY 40% IN ANVANCED, THE BALANCE 60% BY T/T BEFORE SHIPMENT

3. PRICE VALID UNTIL

30 DAYS.

4. PACKING: WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT

5. PORT OF SHIPMENT

GUANGZHOU or SHENZHEN PORT
