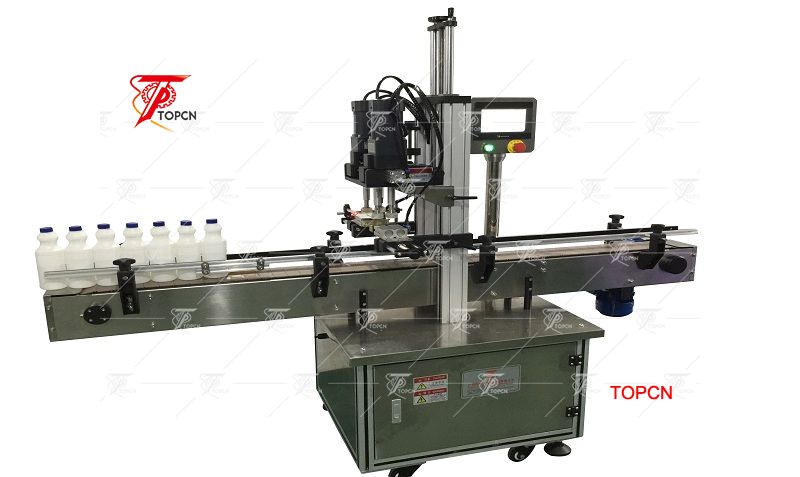

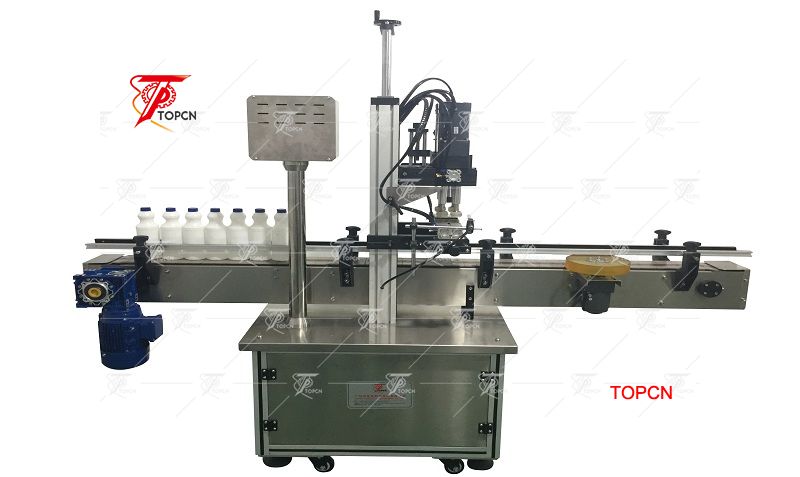

Automatic Linear Lug Capping Machine
- Application
- Description
- Products Parameters
- Video
- Package&Shipping
- FAQ
automatic linear capping machine is suitable for different sizes of plastic bottles, glass botles, metal bottles and special for spray pump cap and nipple cap in such industries as food, condiment,medicine,wine,oil and cosmetics etc.. Automatic feeding cap and capping in one machine. If it's needed, bottle unscrambling, filling, or labeling can be equipped.
Automatic linear capping machine is one of the main equipment of automatic filling production line, linear capping machine is a kind of sealing machine, widely used in glass bottle or PET bottles of screw cap sealing,
because the screw cap with sealing fast, easy to open and re-open Screw cap, etc., so some non-gas liquid material, such as beverages, alcohol, spices and other similar packaging of the bottle
with a large number of screw cap sealing. The use of invert control, the application of the principle of the cam drive, disk divider positioning, implementation of the circular screw cap screw cap.
Automatic put the cover on , screw cap, cap with magnetic combination of structure, the cap does not hurt the lid, screw cap easy to remove, different caps and bottles only need to replace a few
parts, you can use a machine, and filling machine, labeling Machine connection production, food, beverages, medicine, daily chemicals, chemical industry, the best equipment.

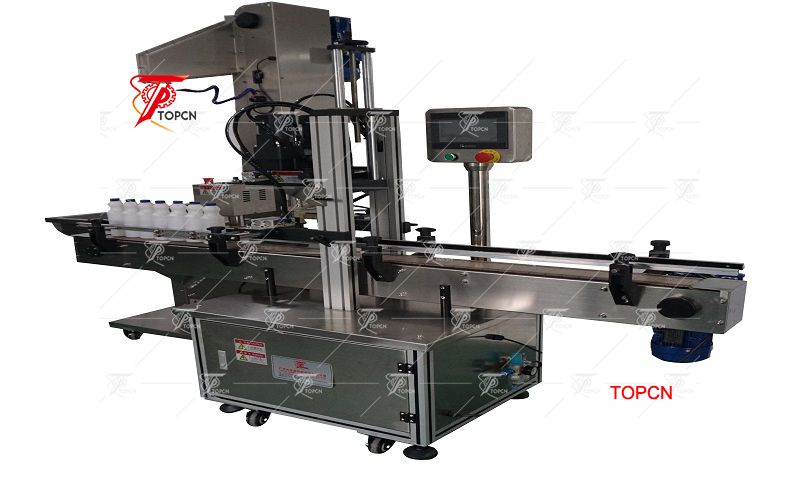

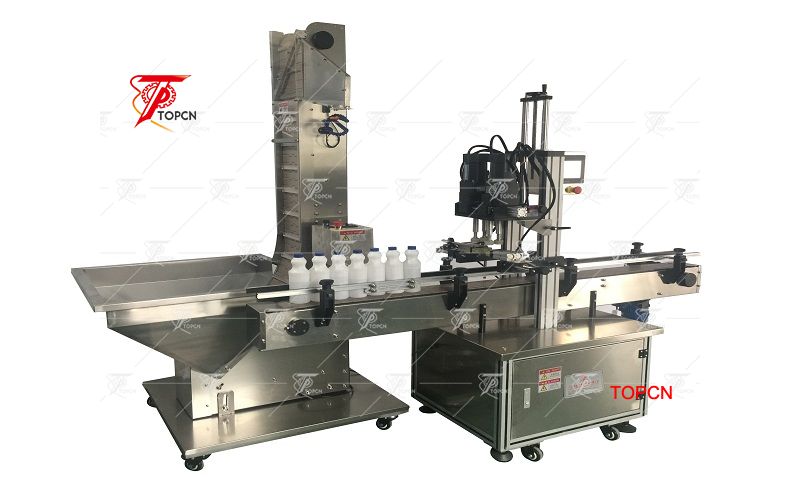

Lug Capping Machine With Cap Elevator
Type: | automatic linear capping machine,linear capping machine,lug capping machine |
Voltage: | 220V |
Bottle neck diameter: | 22-66mm |
Output: | 30-40(pcs/min) |
Air consumption: | 0.4MPA |
Degree of automatic | Automatic |
Power: | 1.5(Kw) |
Dimension: | 2700*840*1900(mm) |

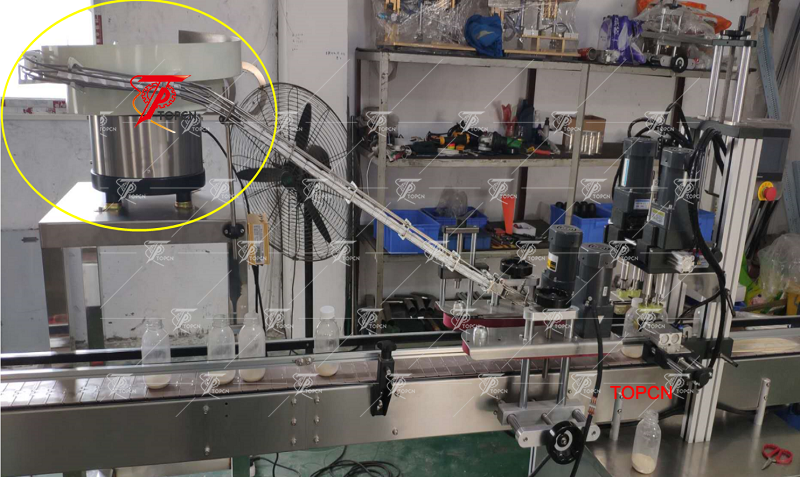

The cap sorting device is to let a large number of caps with a lid placed. They will be ordered into the lifting conveyor tunnel,

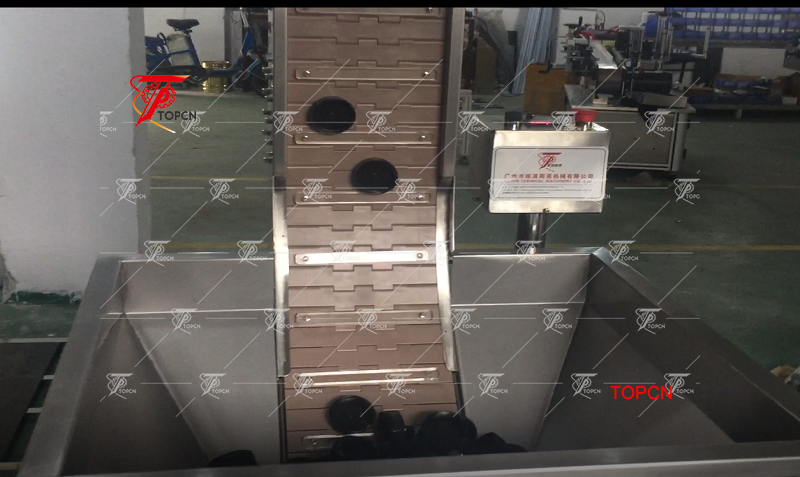

which is low noise.Cap elevator can feeding different diameter cap,height and shape of the lid which is not big difference.
vibration plates optional

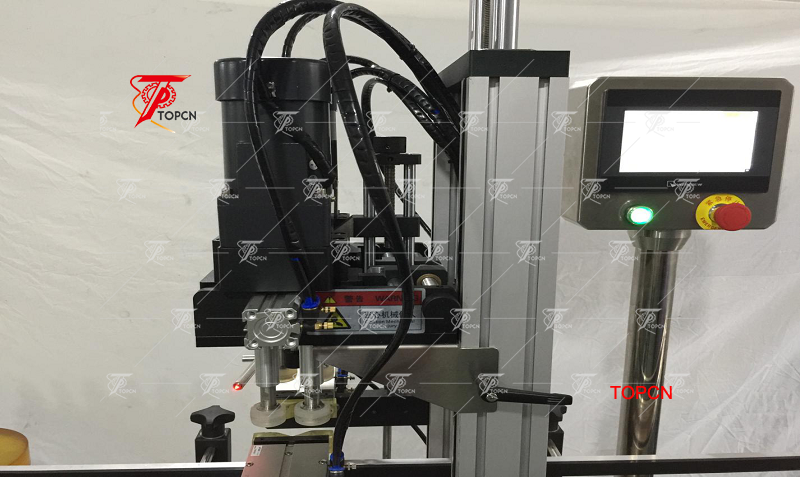

The chuck can be changed according to different cap size.
Applied for pump and screw cap( not for bottle with handle)
No damage to caps

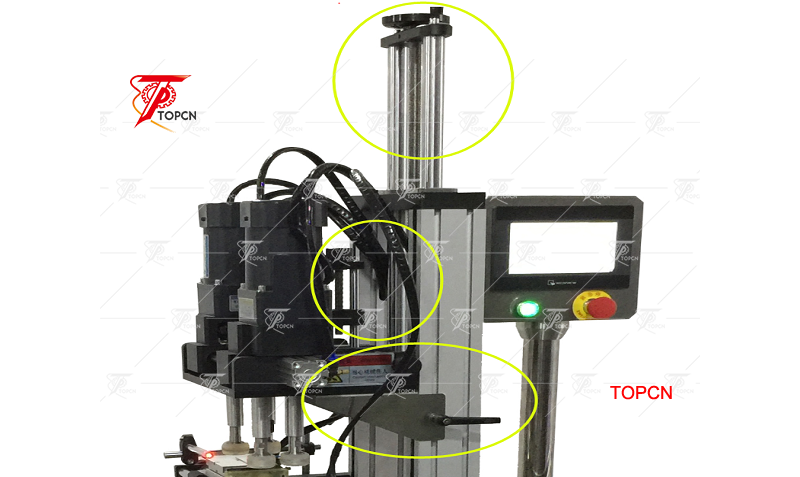

It is easy to adjust the height of capping
automatic linear capping machine,linear capping machine,lug capping machine testing video
High Speed Inline Automatic Bottle Capping Machine with Conveyor Working Video
High speed automatic twist off sealing capping machine introduction of each part
Automatic bottle liner trigger capping machine roller how to working
1. DELIVERY LEAD TIME:
35-50 WORKING DAYS FOR THE SEMI AUTOMATIC MACHINE AFTER RECEIVED DEPOSIT
2. TERMS OF PAYMENT
BY 40% IN ANVANCED, THE BALANCE 60% BY T/T BEFORE SHIPMENT
3. PRICE VALID UNTIL
30 DAYS.
4. PACKING: WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT
5. PORT OF SHIPMENT
GUANGZHOU or SHENZHEN PORT
Q: What should I do to choose the best machine for us?
A: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider.
2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine.
3) At last tell me the inner diameter of your container to help us choose the best diameter of the filling head for you.
Q: Do you have manual or operation video for us to know more about the machine?
A: Yes, we will send you the manual and operation video after you ask for us.
Q: If there's some spare parts that broke,how to solve the problem?
A: Yes, we will send you the manual and operation video after you ask for us.
Q: If there's some spare parts that broke,how to solve the problem?
A: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
