500 Liter Stainless Steel Cosmetic High Shear Mixing Tank Price With Circulating Pump
- Application
- Description
- Products Parameters
- Video
- Package&Shipping
- FAQ

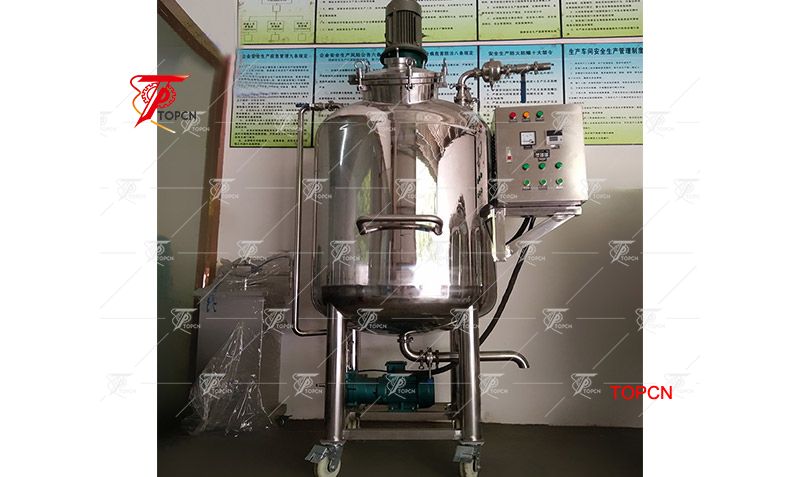

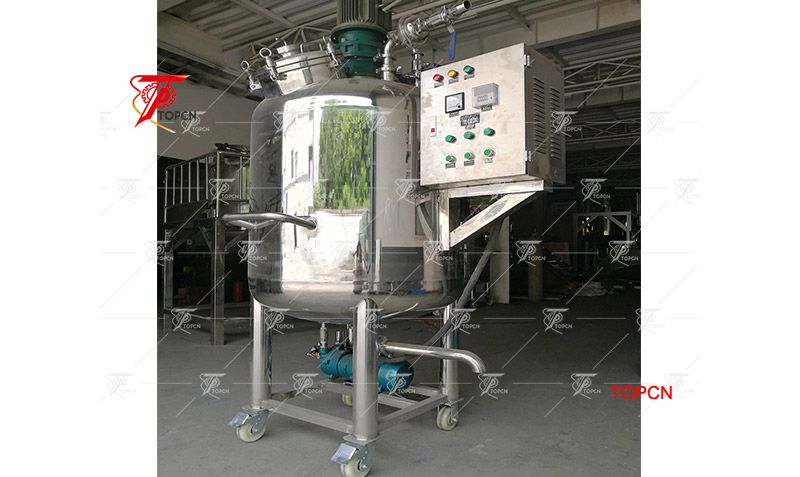

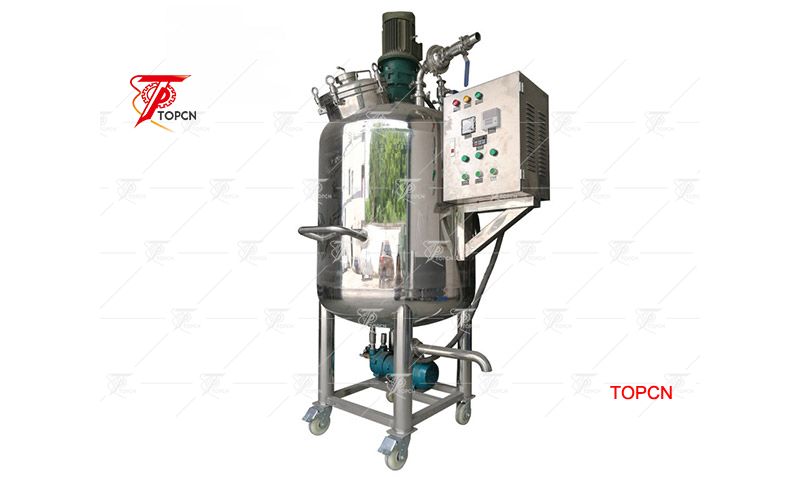

500 Liter High Shear Cosmetic Mixing Tank Price With Circulating Pump is available for manufacturing liquid products(such as detergent, cosmetic, shampoo, shower gel, etc. ) it integrates mixing, homogenizing, heating, cooling, pump discharge finished products and deforming(optional) functions. It is the ideal equipment for liquid products in domestic and international factories.
♠The blending tank equipment with high shear mixer adopts single-direction or double-direction wall scraping blending and frequency conversion speed adjustment to satisfy different technological requirements.
♠Materials can be heated or cooled according to technological requirements. The heating methods such as steam or electric heating can be selected according to customer requirements.
♠Made of imported SUS304 or SUS316L stainless steel. The mixing tank body and pipe are subjected to mirror polishing.
♠Bottom installation type dispenser and pipeline type emulsifier are optional to speed up dissolution and emulsification of materials.
♠Various forms of blending vanes are suitable for production of different types of products.
The tank can be add a jacket for cooling or heating .
Storage tanks also can for electric heating or steam heating.
| Specification | Volume(L) | Blending power (KW) | Blending rotation speed (r/min) | Homogenizing power (KW) | Homogenizing rotation speed (r/min) | Heating method |
| TOP-E-200 | 200 | 1.5 | 0~65 | 3 | 3000 | Steam heating |
| TOP-E-500 | 500 | 2.2 | 0~65 | 4 | 3000 | |
| TOP-E-1000 | 1000 | 2.2-4 | 0~65 | 7.5 | 3000 | |
| TOP-E-1500 | 1500 | 4-5.5 | 0~65 | 11 | 3000 | |
| TOP-E-2000 | 2000 | 5.5 | 0~53 | 11 | 3000 | |
| TOP-E-3000 | 3000 | 7.5 | 0~53 | 15 | 1500 | |
| TOP-E-5000 | 5000 | 11 | 0~53 | 22 | 1500 |
1. DELIVERY LEAD TIME:
30-50WORKING DAYS AFTER RECEIVED DEPOSIT.
2. TERMS OF PAYMENT:
BY 30% IN ANVANCED, THE BALANCE 70% BY T/T BEFORE SHIPMENT.
3. PRICE VALID UNTIL:
15-20DAYS.

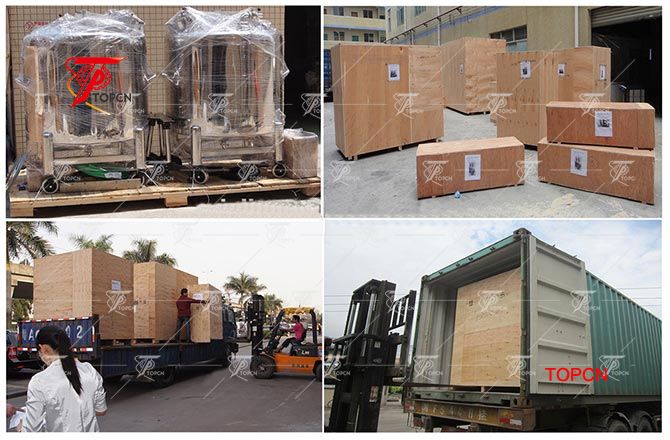

4. PACKING:
WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT.
5. PORT OF SHIPMENT:
GUANGZHOU or SHENZHEN PORT.
For your inquiries, pls kindly let us know:
1. What is your products?
2. What is the capacity do you want for this vacuum emulsifying machine? 100L, 200L300L, 500L, 1000L, etc.
3. Required heating method: electric heating or steam heating?
4. Required voltage and frequency of power supply? eg:380V 50Hz 3phase?
5. Requirement of Certificate (CE, UL, CSA, or no need)
Q1: Are you a machine manufacturer or trading company?
A1: We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory!
Q2: How do you guarantee this machine normally operating?
A2: Every machine is tested by our factory and other client before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.
Q3: How can I install this machine when it arrives?
A3: We will send the engineers overseas to help client installing, commissioning and training.
Q4: Could I choose the language on touch screen?
A4: It's no problem. You can choose Spanish, French, Italian, Arabic, Korean, Japanese and etc,.
Q5: If I need oil and water tank, would you provide for me? How much it cost?
A5: Yes, we could provide oil and water tank for you. The price of oil and water tank depends on the volume of tank.
Q6: Can this mixer programme with flow meter and pumps to realize auto material loading?
A6: Yes, we can offer you Siemens PLC and touch screen to programme auto material loading.
Q7: What kind of product can this machine make?
A7: Emulsifying machine is widely used in producing cream, sauce, wax, shampoo, and etc for food, cosmetic, chemical industry.
Q8: Do you have manual or operation video for us to know more about the machine?
A8: Yes, we will send you the manual and operation video after you ask for us.
Q9: If there's some spare parts that broke, how to solve the problem?
A9: Yes, we will send you the manual and operation video after you ask for us.
Q10: If there's some spare parts that broke, how to solve the problem?
A10: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
