TPGP-403 electric heating bottle Label heat shrink tunnel machine price
- Application
- Description
- Products Parameters
- Video
- Package&Shipping
- FAQ

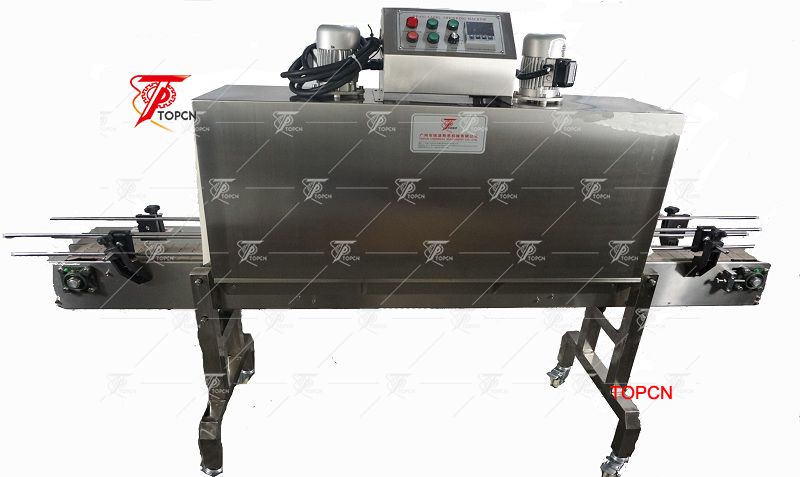

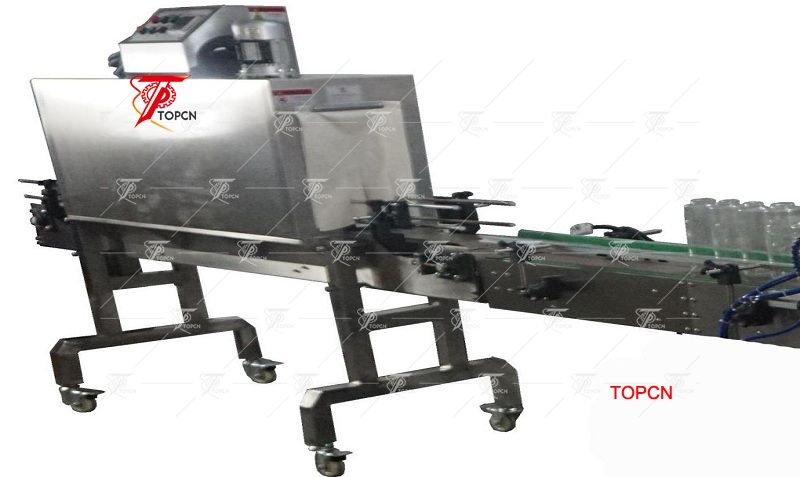

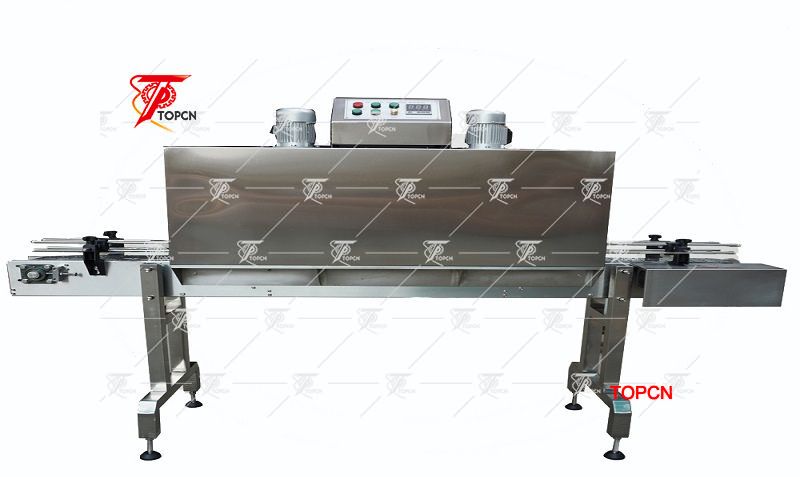

bottle Label heat shrink tunnel machine is a kind of new ideal packaging equipment, suitable for shrinking label packing for various goods,such as bottled beverage,chemical and other industries. After package,the products with perfect sealing,beautiful and clean surface.It can use films with various different material, such as PVC,PE,PP etc
►This machine has the advantages of high efficiency,low electricity,long life, stepless speed regulating and stable transmission.
►Steam label shrinking machine is a special type,after shrinking,the bottle will not be out of shape,particularly suitable for shrinking label of mineral water bottles in various shapes.
►Bottle cap label shrinking machine adopt stainless steel electric heat pipe heating, hot air circulating shrinking machine. Suitable for adjustable height bottle sealing surface bottle cap label.
►Bottle Body label shrinking machine adopt stainless steel electric heat pipe heating, hot air circulating shrinking machine. Suitable for the bottle body contraction.
►Our company can produce various specifications or all kinds of shrinkage machines according to the customer request
Model | TPGP-403 |
Voltage | 380V /50-60HZ |
Power | 12.5KW |
Tunnel size (L x W x H)mm |
L1500 x W350 x H150mm |
Max.Packing size(mm) | D110x 440H |
Conveyor motor | AC90W/220V |
Conveyor speed | 0-10m/min |
Max.loading | 15KGS |
Shrink film | POF,PVC,PP |
Weight | 90KGS |
Dimension (mm) | L3200 x W550 x H 1850mm |

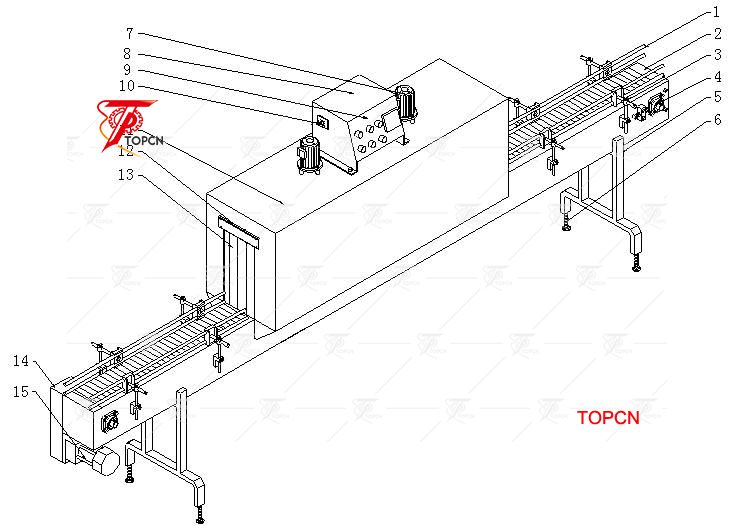

Diagram 1 sketch map of shrink tunnel machine
1. Guardrail. 2.conveyor belt. 3.Guardrail height adjustment. 4.Conveying platform tensioning device 5frame.
6 foot bolt. 7. Circulation fan. 8. electrical box. 9. Control panel.10. Circuit breaker.11.contraction furnace.
12. Splint. 13. teflon sheet. 14. Dust cover. 15.Conveyor motor.
conditions | thickness | Heating time | Thermal shrinkage chamber temperature(ºC) |
material | |||
PVC | 0.02-0.06 | 5-10 | 110-140 |
PP | 0.02-0.04 | 6-12 | 110-140 |
PE | 0.03-0.10 | 20-30 | 170-200 |
PE | 0.12-0.20 | 30-60 | 180-220 |
1. DELIVERY LEAD TIME:
5-7 WORKING DAYS FOR THE SEMI AUTOMATIC MACHINE AFTER RECEIVED DEPOSIT
2. TERMS OF PAYMENT
BY 40% IN ANVANCED, THE BALANCE 60% BY T/T BEFORE SHIPMENT
3. PRICE VALID UNTIL
30 DAYS.
4. PACKING: WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT
5. PORT OF SHIPMENT
GUANGZHOU or SHENZHEN PORT
Q: What should I do to choose the best machine for us?
A: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider.
2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine.
3) At last tell me the inner diameter of your container to help us choose the best diameter of the filling head for you.
Q: Do you have manual or operation video for us to know more about the machine?
A: Yes, we will send you the manual and operation video after you ask for us. &
Q: If there's some spare parts that broke,how to solve the problem?
A: Yes, we will send you the manual and operation video after you ask for us.
Q: If there's some spare parts that broke,how to solve the problem?
A: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
