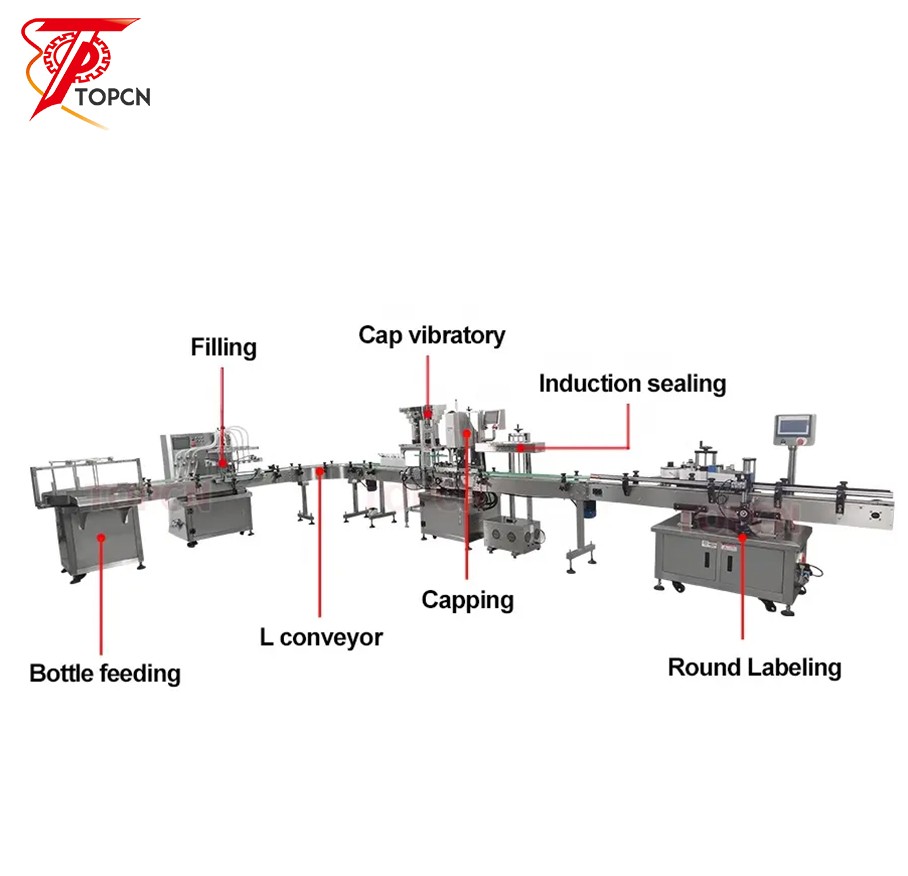

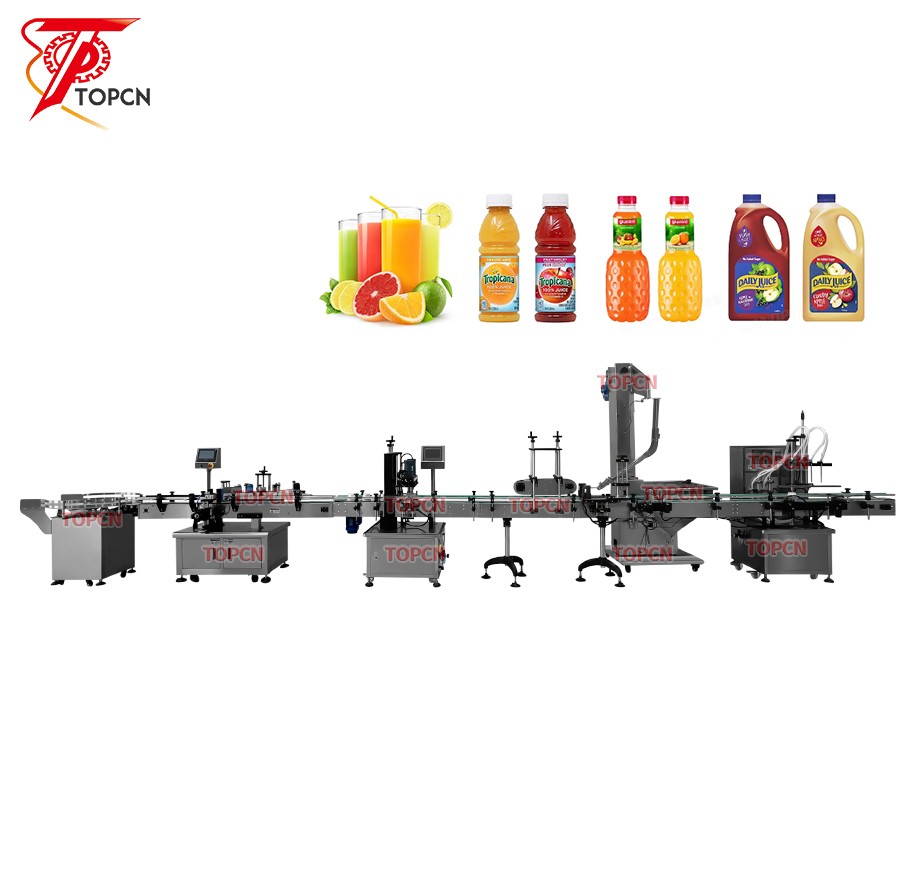

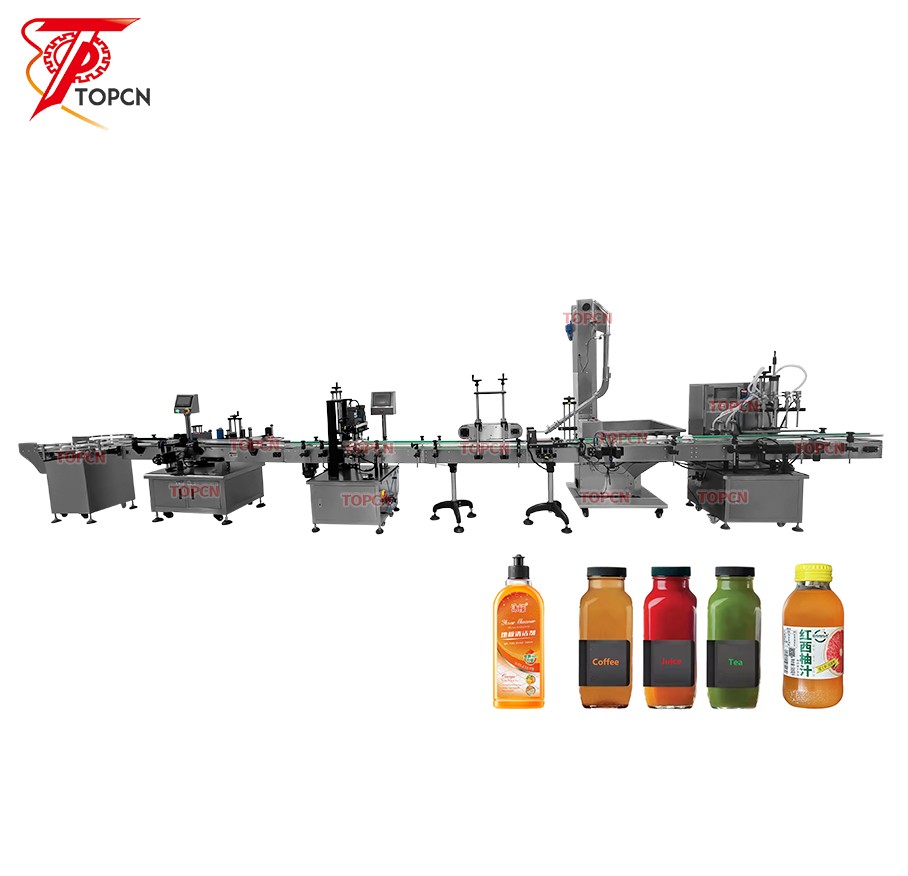

Automatic bottle filling beer fruit juice milk production line price

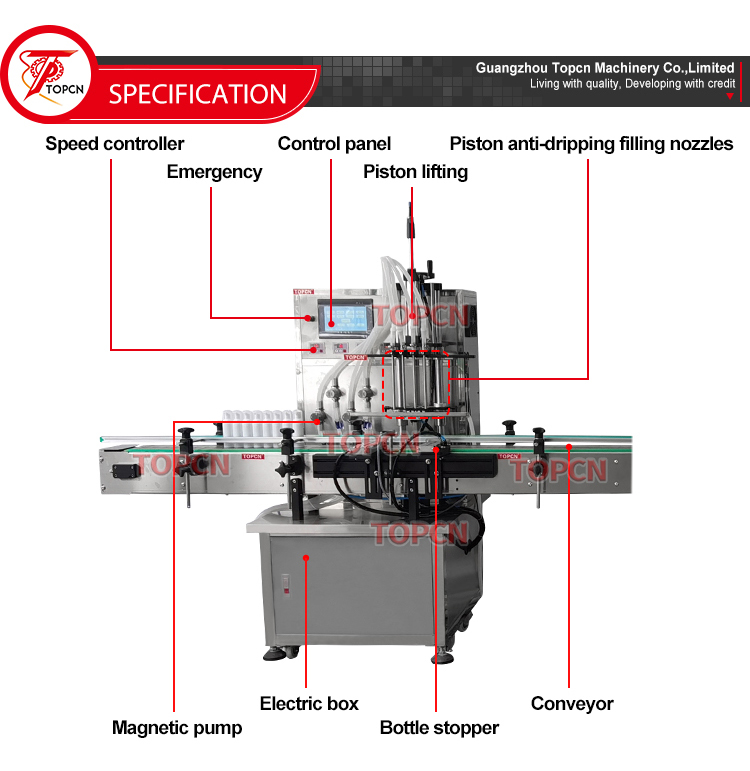

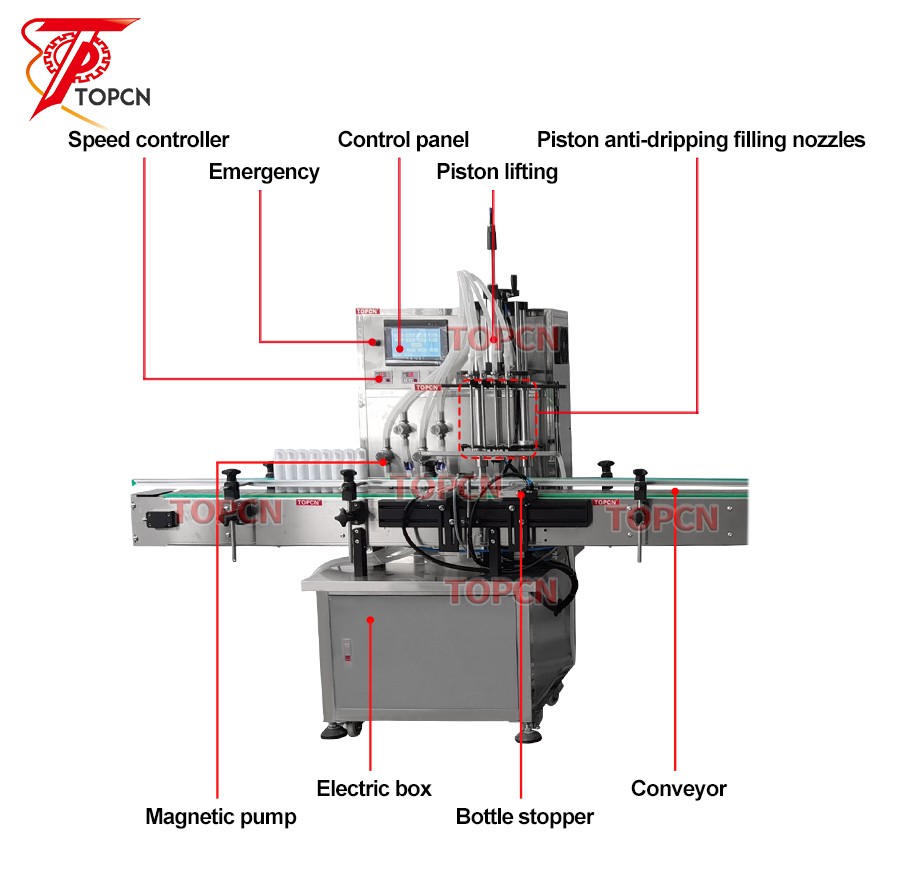

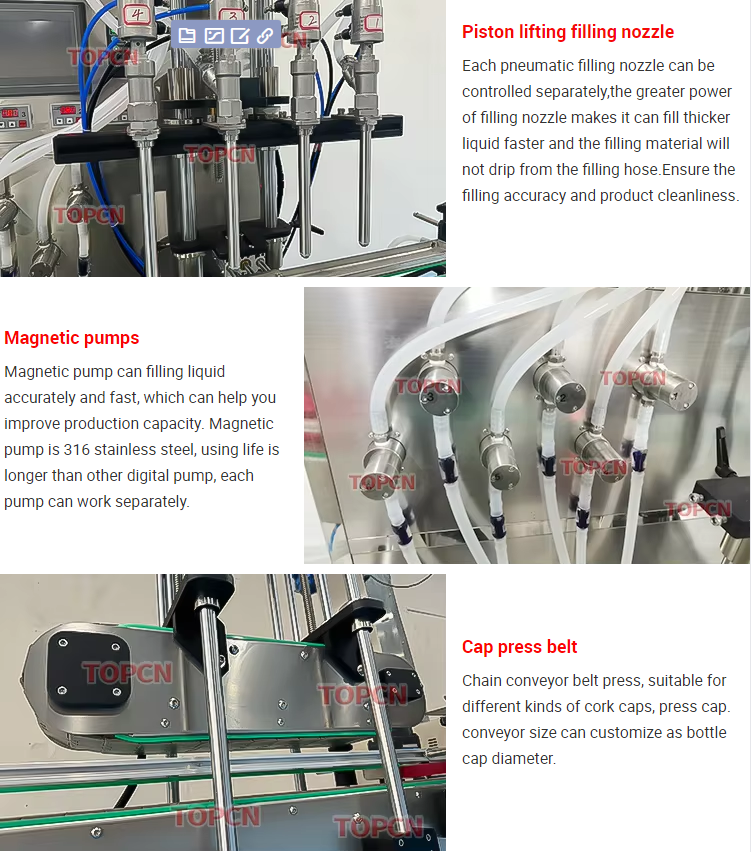

Filling head

4heads/6heads/8heads( Lifting cylinder or Servo motor driving)

Suitable bottle size

φ20-160mm H30-300mm

Max flow rate

3000ml/min

5500ml/min

5500ml/min

7500ml/min

Filling speed

20-40pcs/min

20-50pcs/min

20-50pcs/min

25-60pcs/min

Material of pump

Plastic

304stainless steel

316stainless steel

Filling accuracy

≤100ml ≤±1ml
> 100ml precision ≤±1% ( based on water)

Power supply

220V-50HZ/110V-60HZ

The whole machine power

2KW

Size of air compressor connector

OD 8mm

Machine size

200*85*175cm

Package weight

About 180kg

Package size

About 214*90*208cm

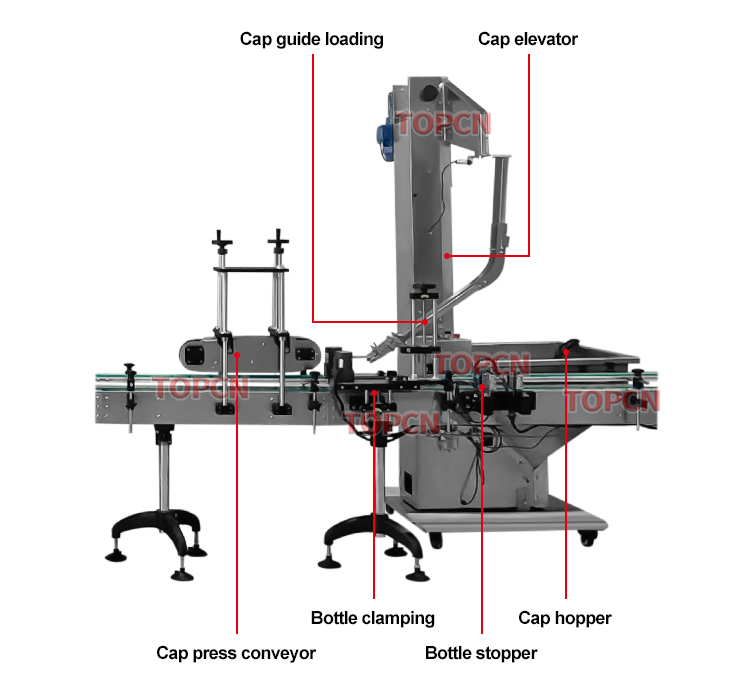

Elevator Cap Feeding

Motor

Gear motor

Applicable cap diameter

Φ20≤D≤Φ80mm

Applicable cap height size

15≤D≤40mm

Power

800W

Working pressure

Need compressed air

Require power supply

AC 220V, Single phase, 50/60HZ

Machine size(L*W*H)

235*80*103cm

Net weight

140kg

Package size

240*85*108*cm

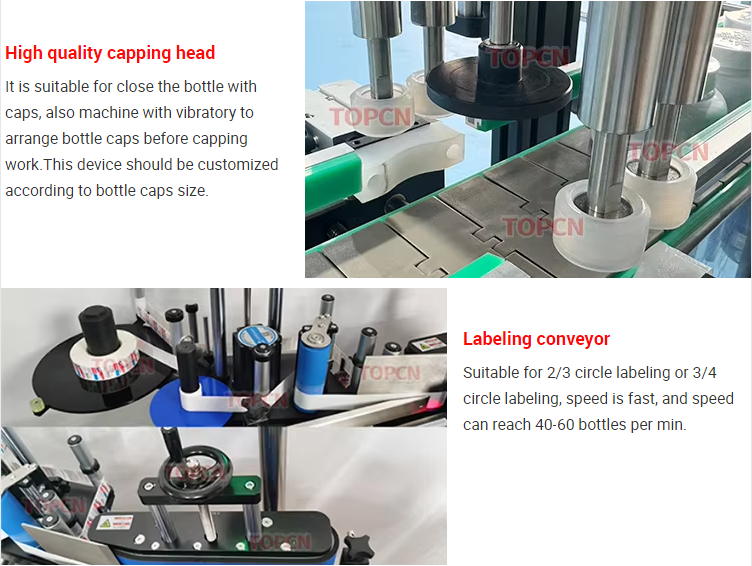

Cap Press Machine

Voltage

AC 220V/60HZ 110V/50HZ

Power

1.5 kw

Cap diameter

15-80mm

Bottle diameter

35-140mm

Bottle height

38mm-250 mm

Capping speed

30-60 pcs/min

Air pressure

0.4-0.6 Mpa

Machine size

200*85*180 cm

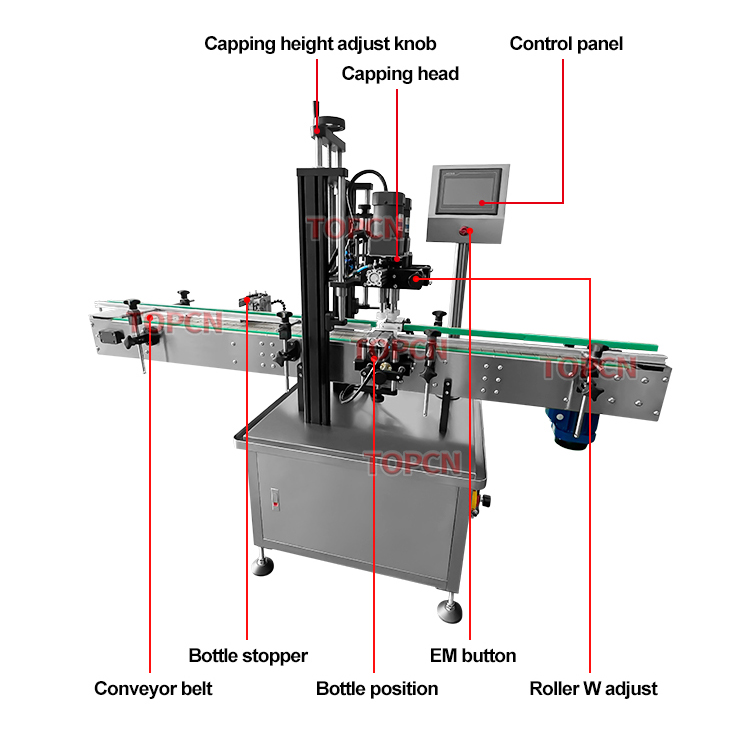

Product Name

Automatic capping machine

Power

1kw

Voltage

220v/110v(Customize)

Air Source

0.4MPa-0.6MPa

Bottle Cap Range

Standard:20mm-68mm; Customize:15mm-70mm;20mm-115mm

Bottle Size

Bottle height:80mm-300mm;
Can be customized 15mm-100mm; (other sizes can be customized)

Whole Machine Size

200*62*160cm

Package Size

205*67*175cm

 Weight

NW :250kg      GW:280kg

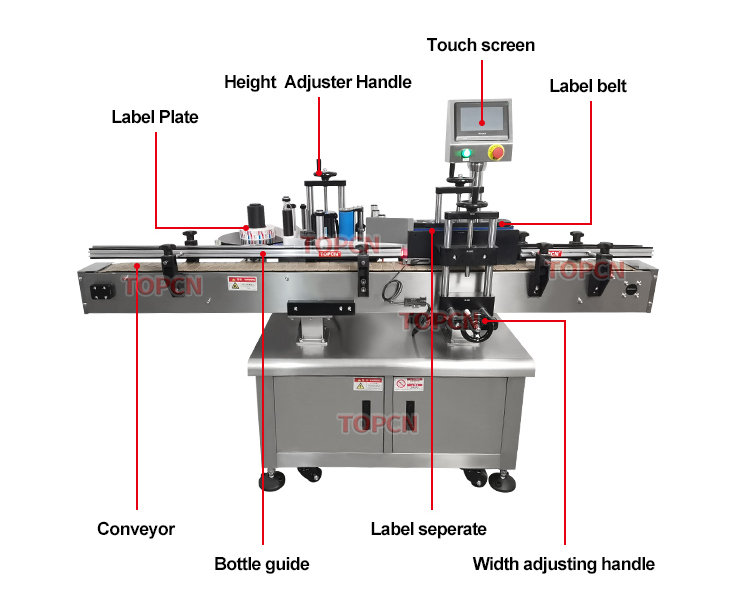

Labeling Precision

±1mm (excluding product and label error);

Power Supply

AC220V 50/60Hz 700W

Conveyor Speed

5~25 meters/minute;

Labeling Speed

40~60cs/min(Related to product, label size);

Sticker Out-Come Speed

Stepping Motor: 5~19 meters/minute

Servo Motor: 5~25 meters/minute

Application Bottle Size

External diameter: Φ25-100mm;

Height: 25mm~300mm;

Applicable label size

Label Length: 20mm~290mm;

Label Width(body paper width): 20mm~120mm; 180mm (option)

Inner dia. of paper roll

Φ76mm

External dia. of paper roll

Max. Φ300mm

Size (LXWXH)

200*115*160cm

Weight

222kg
