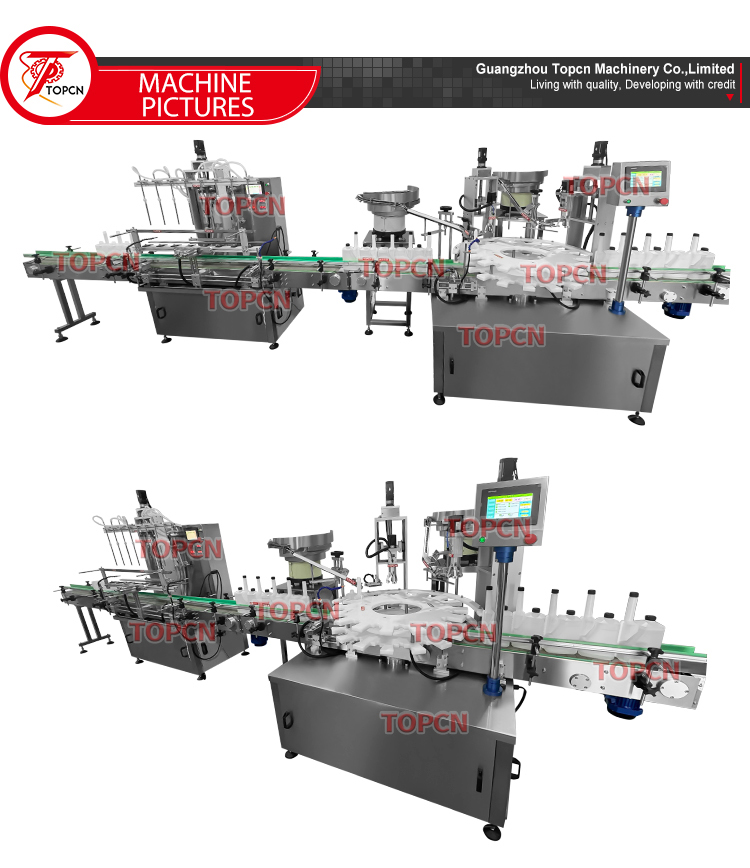

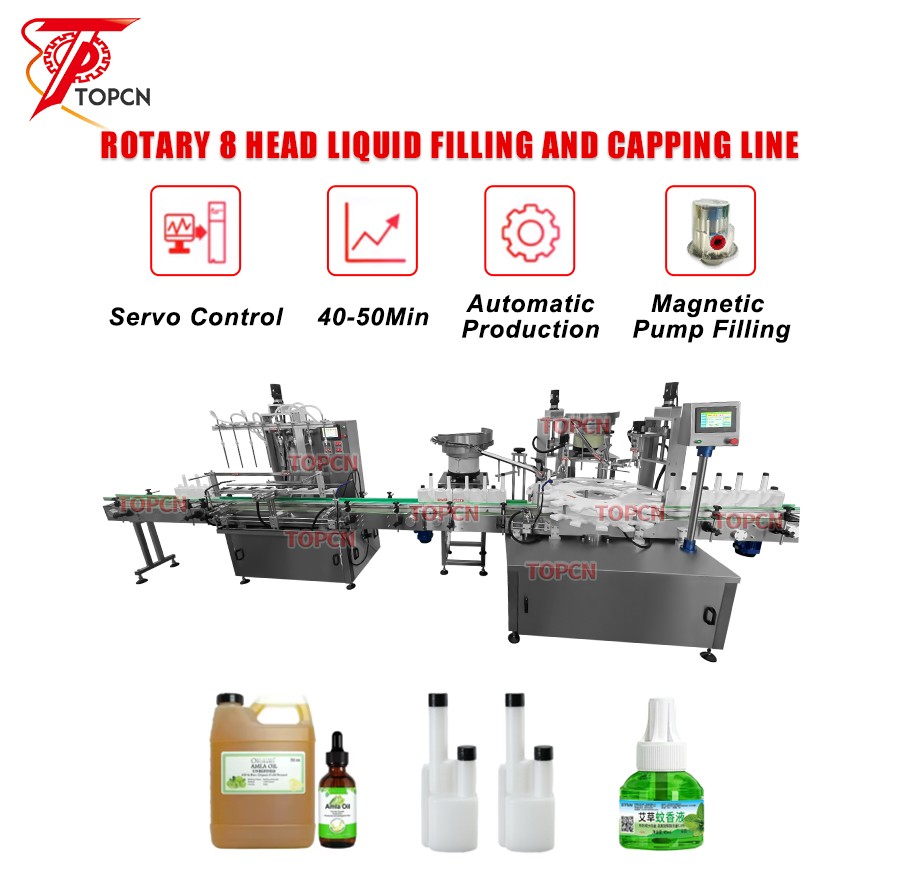

Eight Head Magnetic Pump 3 In 1 Rotary Engine Oil Liquid Filling Capping And Labeling Machine Line
- Application
- Description
- Products Parameters
- Video
- Package&Shipping
- FAQ

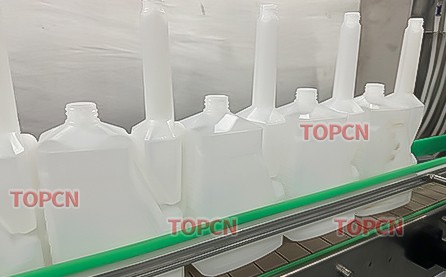

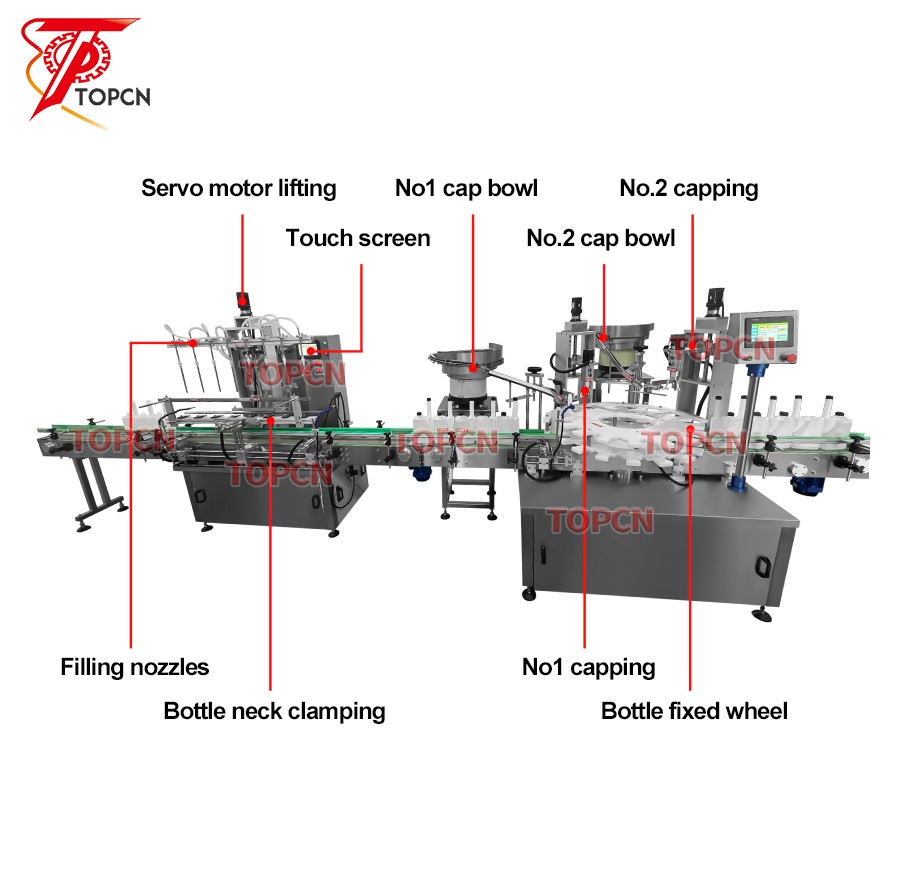

Chain conveyor
Chain convey belt, the width and height adjustable as different bottle size.

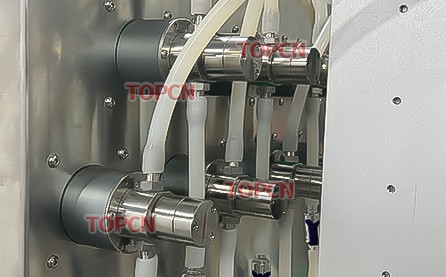

Magnetic Pump
Magnetic pump is good choice for low viscous corrosive liquid, a little foamy liquid, filling liquid accurately and fast, each pump,can work separately.

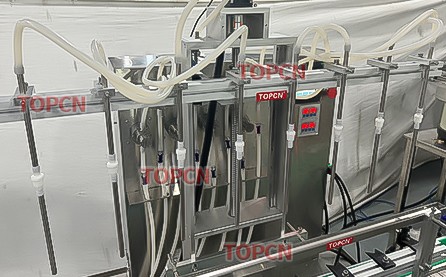

Filling Nozzles
Bottle Filling Nozzles with anti-dripping function, each nozzle can be used to fill different liquid at the same

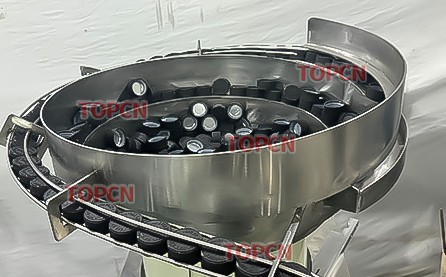

Cap feeder
With two cap feeder which can feed lids before capping bottle,This one needs to be customized according to cap size.

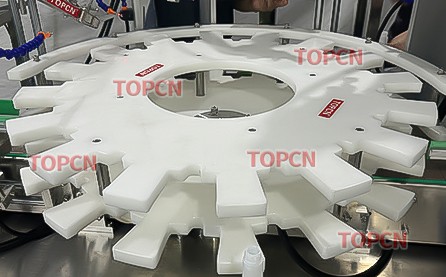

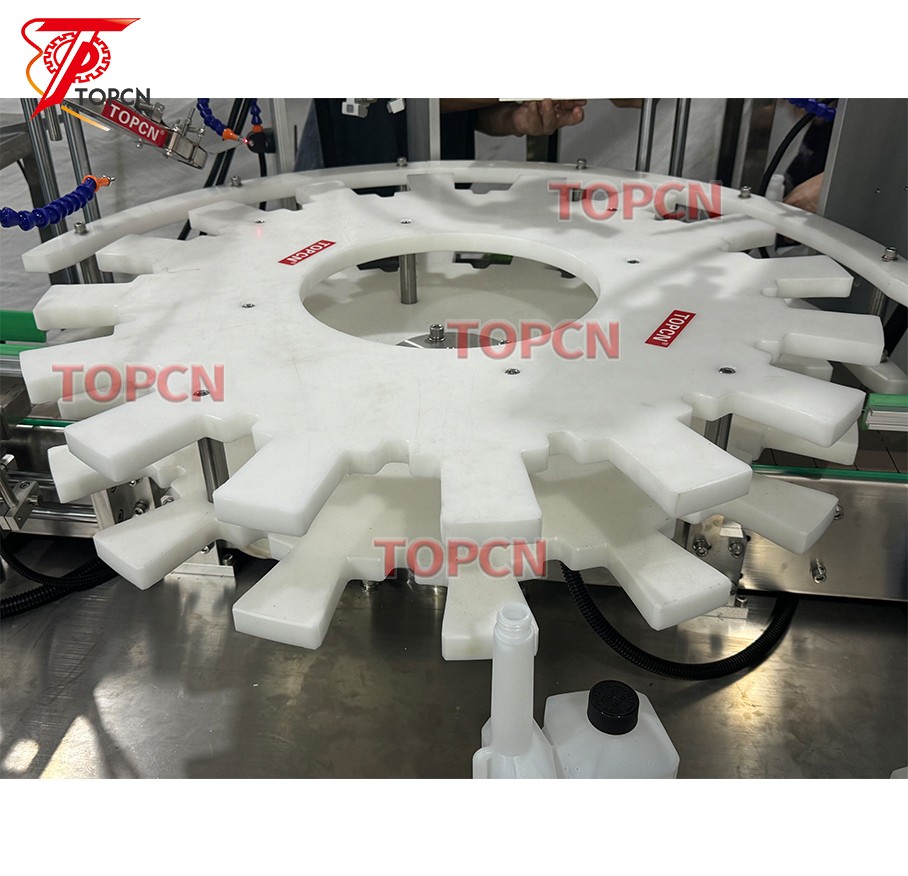

Rotary bottle mould
The rotary disk bottle mould is designed for transporting bottles and finish filling capping press.
It is suitable for all kinds of bottle.

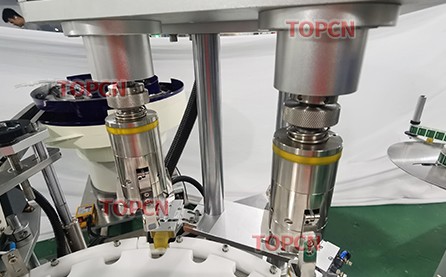

Capping chuck
Servo motor driving the capping, ensure the capping speed and finished cap good looking
Machine Model | TRFM-8 |
Filling type | Magnetic pump for liquid filling |
Filling head qty | 8 |
Voltage | 110-60HZ 220V-50HZ |
Power | 3KW |
Air Consumption | 0.4-0.6MPa |
Filling Accuracy | ±1% |
Working Speed | 40-45 bttles/min(based on material) |
Size Of Filing Nozzle | Φ8mm |
Size Of Air Compressor Connector | Φ8mm |
Filling Range | 10-120ML |
Machine Size | 430*125*190mm |
Package Size | 160*97*203cm 265*137*189cm |
Gross weight | 350kg 480kg |
