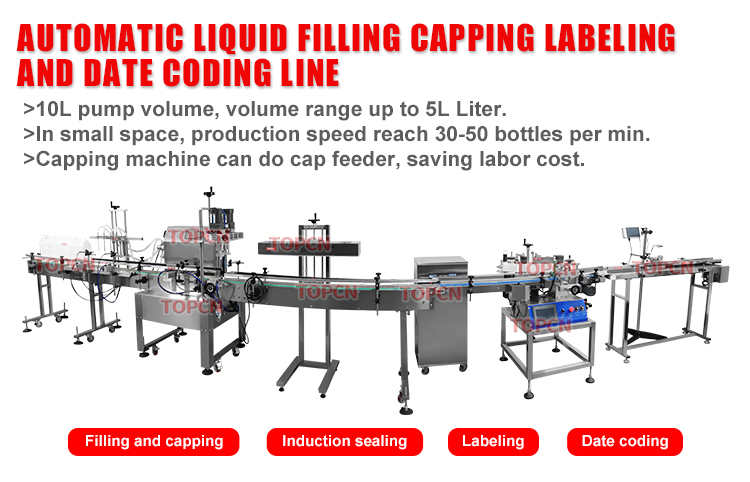

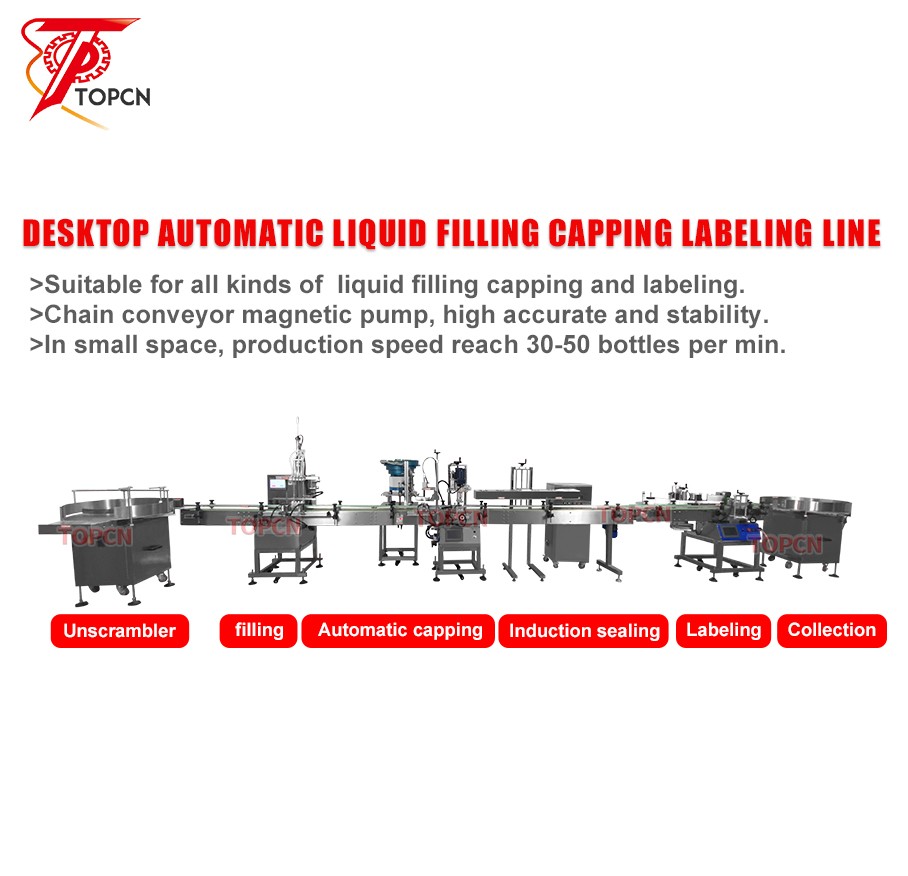

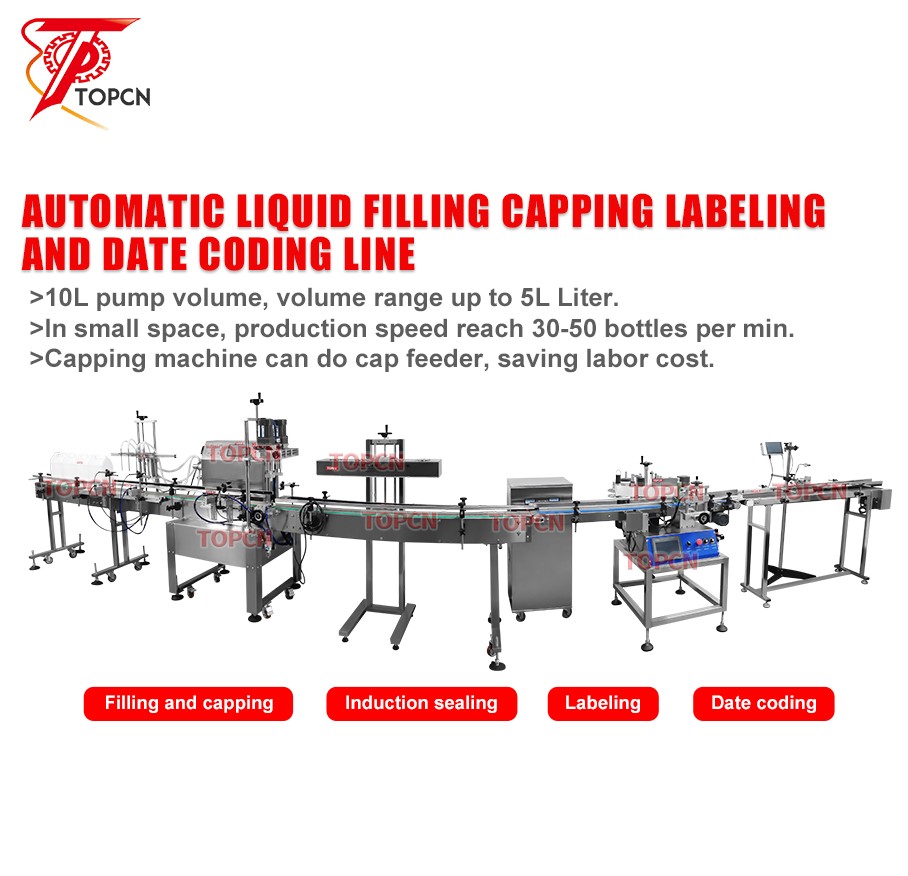

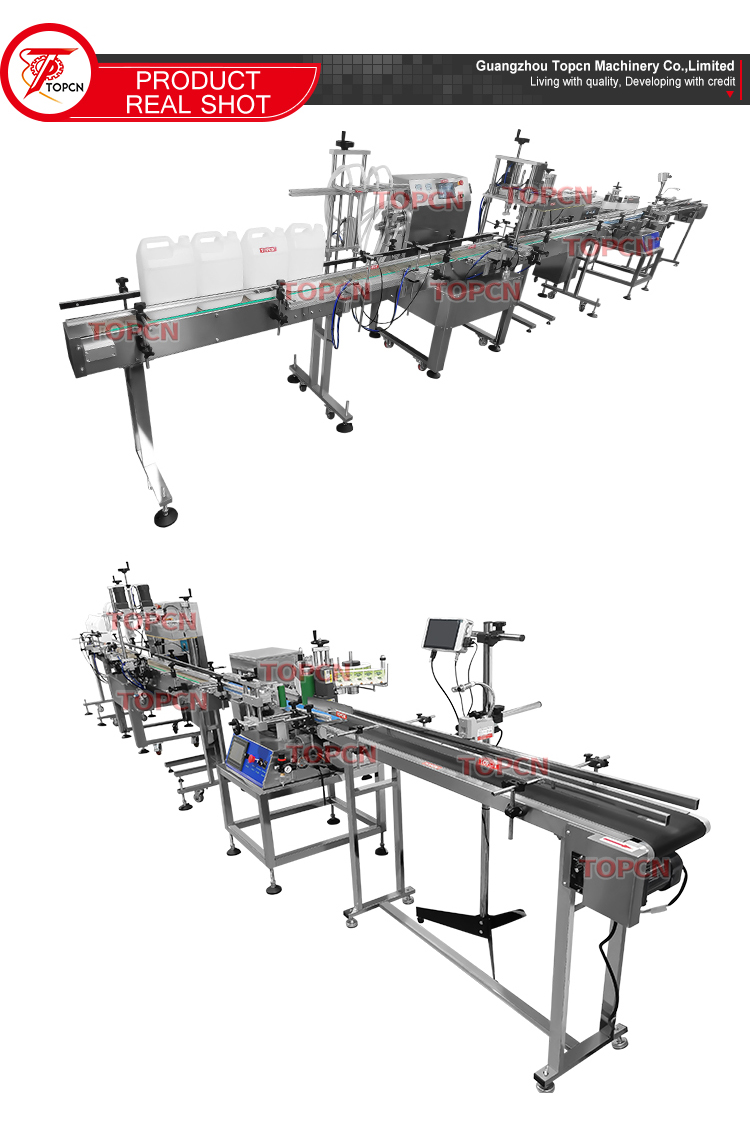

Top Quality Oil Chemical Liquid Refill Line Bottle Vegetable Oil Filling Capping Labeling Machine/plant/line

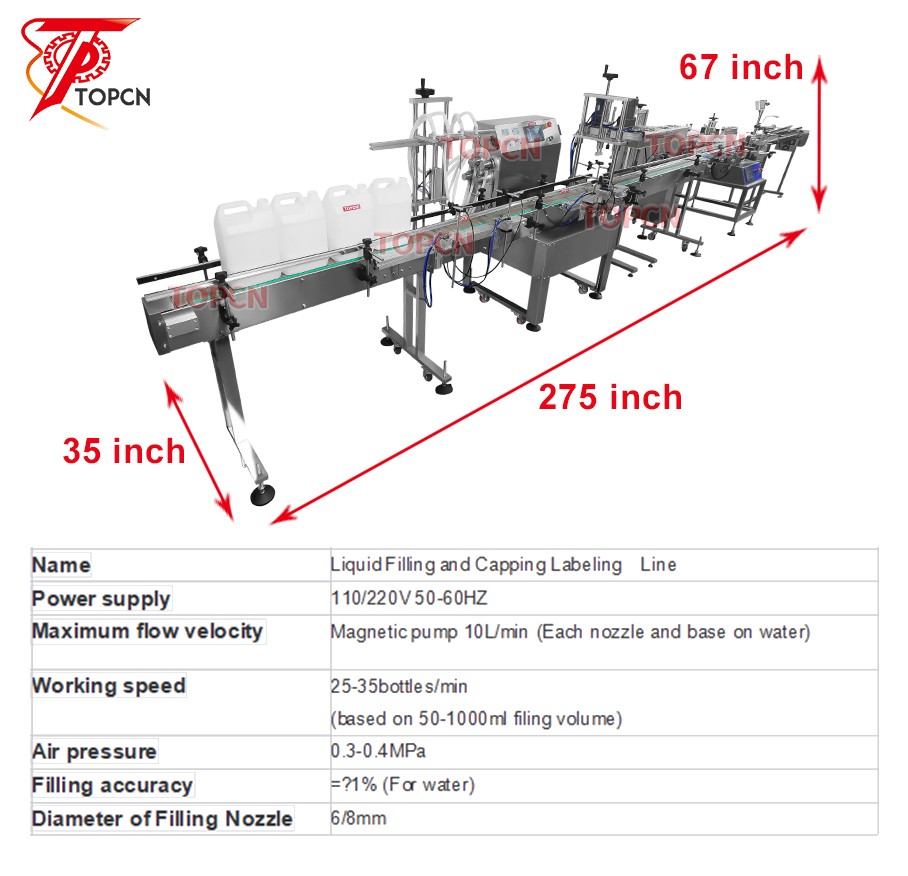

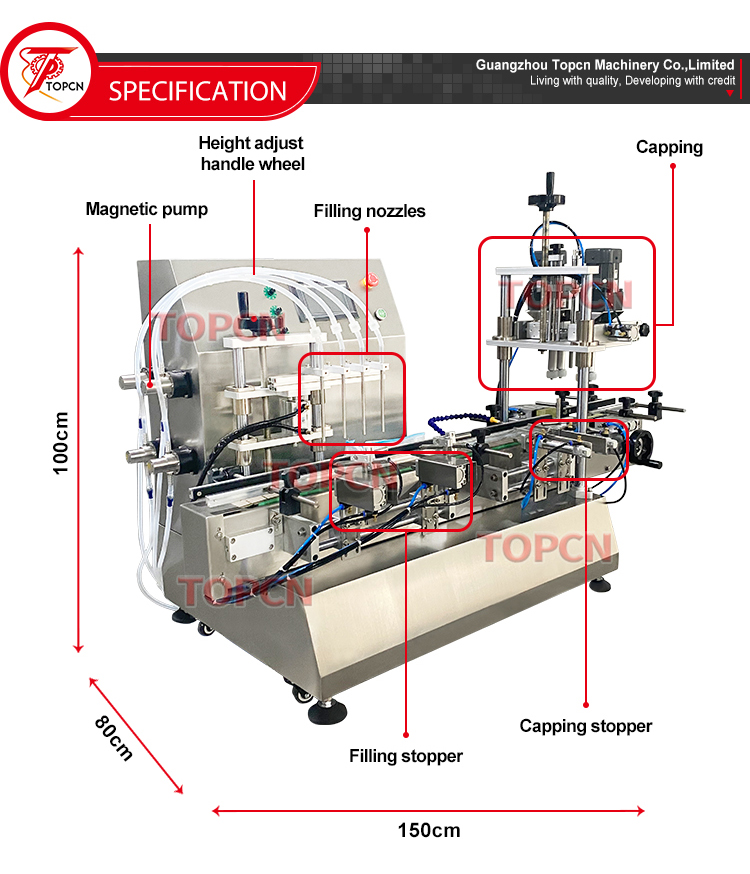

Name

Liquid Filling and Capping Machine

Power supply

110/220V 50-60HZ

Maximum flow velocity

Magnetic pump 10L/min (Each nozzle and base on water)

Working speed

25-35bottles/min
(based on 50-1000ml filing volume)

Air pressure

0.3-0.4MPa

Filling accuracy

≤±1% (For water)

Diameter of Filling Nozzle

6/8mm

Delay Range

0.01-999.9s

Count Range

1-99999 Times

Filling Volume

3- 500ml(110V/220V)

Size of air compressor connector

OD8mm

Bottle height

＜220mm(Can be customized,max height 300mm)

Machine Size

192*72*109cm

Package Size

About 197*77*122cm

Gross weight

190kg

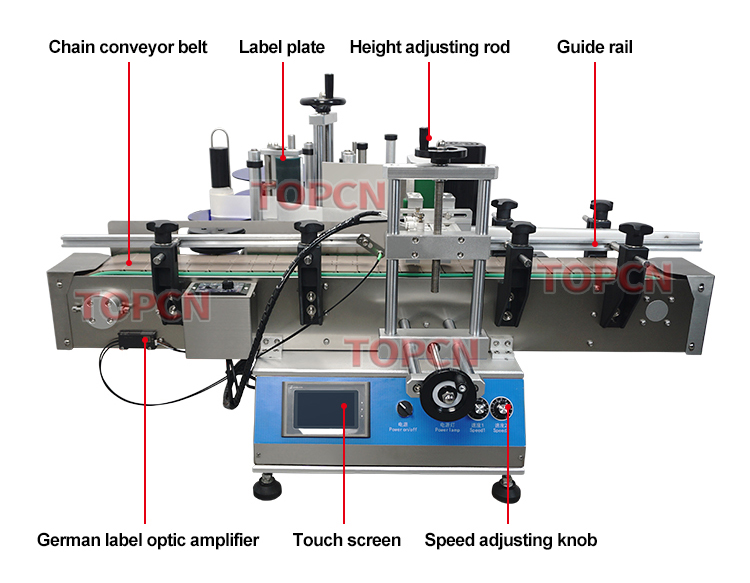

Model

TPLM-R-DTP

Voltage

AC 110V or AC 220V 50/60Hz 100w

Speed

20-100pcs/min

Bottle Height

25mm-380mm

Label size

Length:25-350mm; Width:25-150mm

Precision

±1mm(depends on bottle shape)

Label roll

φ76.2-φ350mm

Objects

Bottles, jars, cans, boxes, cartons, juice bottles, beer wine bottles, shampoo detergent bottles, etc.

N.W.

80Kg.(G.W. with wooden case 120KG)

Dimension

1220×850×800mm

Function

This machine can stick labels on various objects, Bottles, jars, cans, boxes, cartons, beer bottles, wine bottles, juice bottles,

shampoo detergent bottles, hardware, etc.

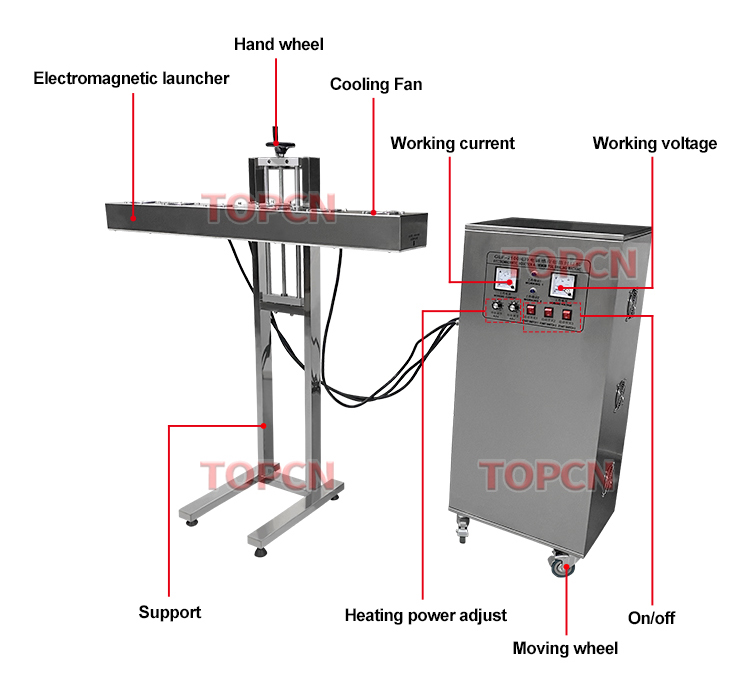

Model

TGLF-2100

Motor power

2600W

Sealing height

20-400mm

Sealing diameter

15-65mm

Way of working

Continuously working

Cooling method

Air cooling

Voltage

220V/50HZ

Sealing speed

0-250 bottles/min

Host size

500*360*1100mm

Equipment Weight

62kg

Package size

1400*470*130mm

Machine material

Stainless steel

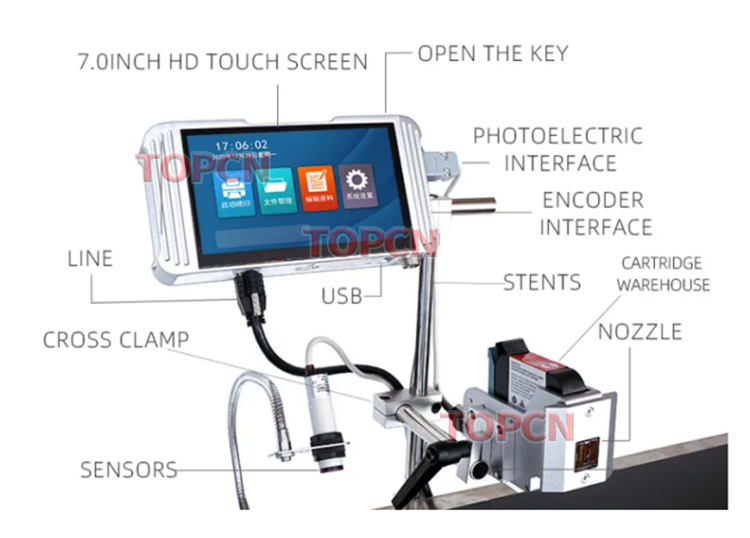

Name

Date coding machine

Printing height

1.2mm-12.7mm and 1.2mm-25.4mm

Print code

bar code, QR Code

Printing distance

1-10mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm)

Automatic print

date, time, batch number shift and serial number, etc

Printing speed

60m/min

Ink type

Quick-dry solvent environmental ink, water-based ink and oily ink
