Automatic 5-30ml dropper bottle filing capping machine manufacturer
- Application
- Description
- Products Parameters
- Video
- Package&Shipping
- FAQ

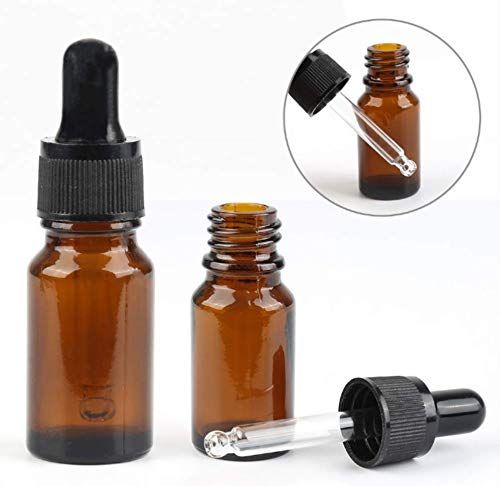

Automatic 5-30ml dropper bottle filing capping machine is widely used in filling of various of small bottle in 10-30ml 30ml-50ml 50ml-130ml for e-liquid essential oil massage oil eye drops liquid etc.
►dropper bottle filling capping machine is dosing by piston pr peristaltic pump which is with high precision.
►Filling volume can be customized from 5ml-30ml 30ml-50ml 50ml-120ml etc. Or more large volume can be customized.
►Filling nozzles can be customized. 2 nozzles/4nozzles/6nozzles with capacity from 1000-3000bottles/h
►5-30ml dropper bottle filling machine filling nozzles are specially made to avoid leakage.
►dropper bottle filling machine is made of full stainless steel, look beautiful and meet GMP standard.
►CE certificate.
►The machine will be a warranty for 1 whole year after you get the machine your factory, after-sales service will be offered forever.
►Full automatic with bottles feeding-filling-tips plugging-capping-labeling-ink printing-carton packing

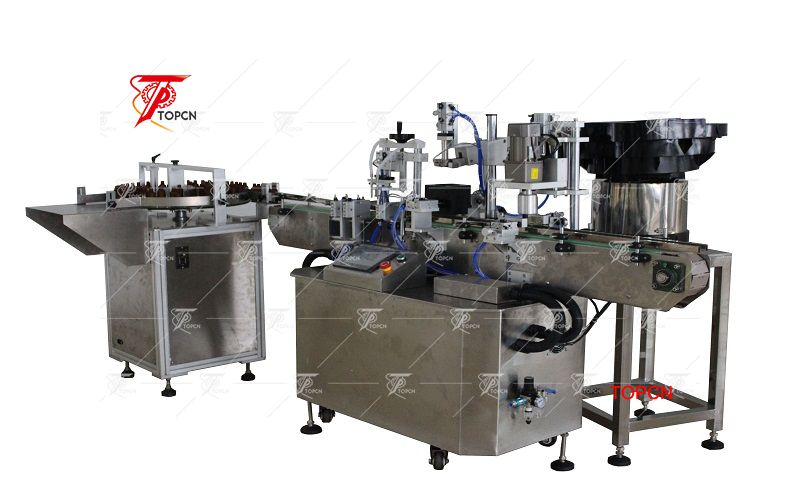

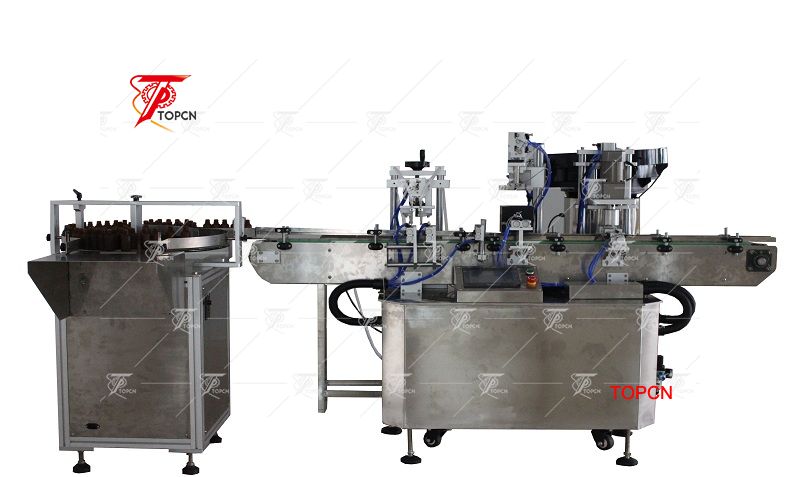

Name | Automatic 5-30ml dropper bottle filing capping machine |
Material | The parts contact with products are stainless steel 316/316L, other parts are stainless steel 304 or alloy. |
Products | Small volume liquid or powder pharmaceutical products |
Filling device | Peristaltic pump or magenetic pump |
Stoppers/caps feeding device | Electromagnetic vibrative bowls+photosensor |
Stoppers feeder | 1-2 heads |
Caps feeder | 1-2 heads |
Al cap crimp | 1-2 heads |
Capacity (BPH) | 30-55BPM |
Filling precision | ≤±1% |
Capping pass rate | 99% |
Air pressure | 0.4~0.6MPa |
Voltage | 220V 50Hz 1P |
Power | 1.5kw |
Noise | ≤70dB |
G.W. | 650 kg |
Dimension(mm) | 2500×1200×1950 |
Famous brand electrical parts
Machine frame | SUS304 and SUS316L Stainless steel | |
Peristaltic pump | WATSON MARLOW Peristaltic pump (UK) | |
Main Motor | ABB | Switzerland |
Inverter | Japan | |
Air Switch | Schneider | France |
Contactor | Schneider | France |
Relay | Omron | Japan |
OFA | Autonics | Korea |
Bearing | IGUS | Germany |
CAM indexer | Shangdong | China |
Turntable | Plastic POM | Japan |
Cylinder | AIRTAC | Taiwan |
Touch screen | Siemens | Germany |
PLC | Siemens | Germany |
Servo motor | Delta | Taiwan |

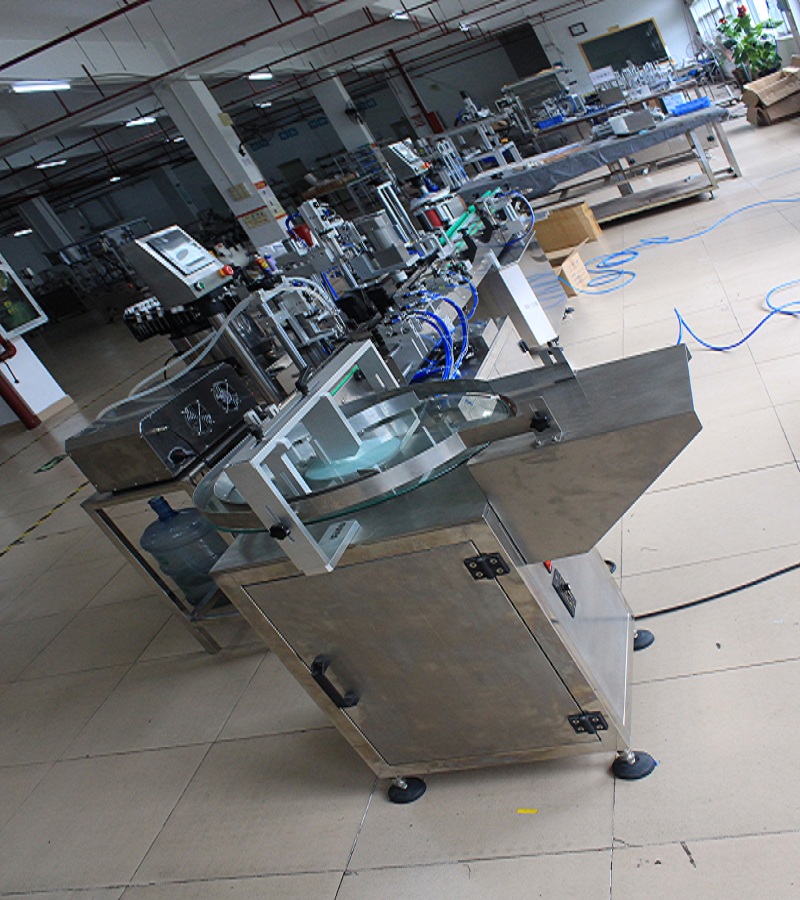

Feeding table for glass dropper bottle

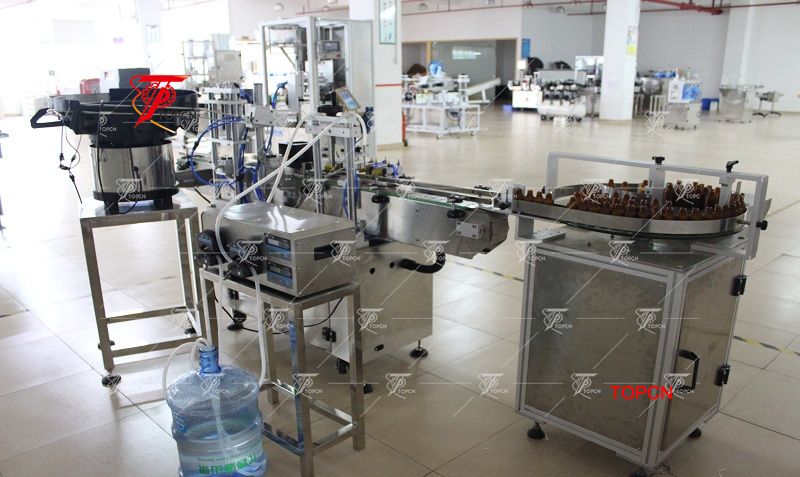

Working porgress:feeding bottle-filing-feeding dropper automatic-capping
1. DELIVERY LEAD TIME:
35-50 WORKING DAYS FOR THE SEMI AUTOMATIC MACHINE AFTER RECEIVED DEPOSIT
2. TERMS OF PAYMENT
BY 40% IN ANVANCED, THE BALANCE 60% BY T/T BEFORE SHIPMENT
3. PRICE VALID UNTIL
30 DAYS.
4. PACKING: WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT
5. PORT OF SHIPMENT
GUANGZHOU or SHENZHEN PORT
Q: What should I do to choose the best machine for us?
A: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider.
2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine.
3) At last tell me the inner diameter of your container to help us choose the best diameter of the filling head for you.
Q: Do you have manual or operation video for us to know more about the machine?
A: Yes, we will send you the manual and operation video after you ask for us. &
Q: If there's some spare parts that broke,how to solve the problem?
A: Yes, we will send you the manual and operation video after you ask for us.
Q: If there's some spare parts that broke,how to solve the problem?
A: First of all, please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
