Factory Price 500L 1000L Double Jacket Heating and Mixing Tank

  • Application
  • Description
  • Products Parameters
  • Video
  • Package&Shipping
  • FAQ

Factory Price 500L 1000L Double Jacket Heating and Mixing Tank

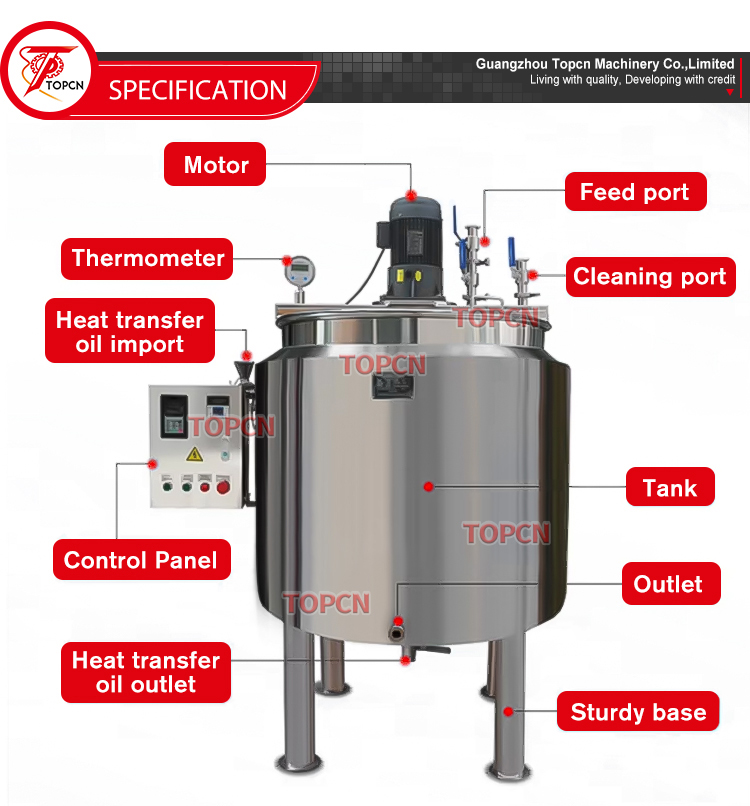

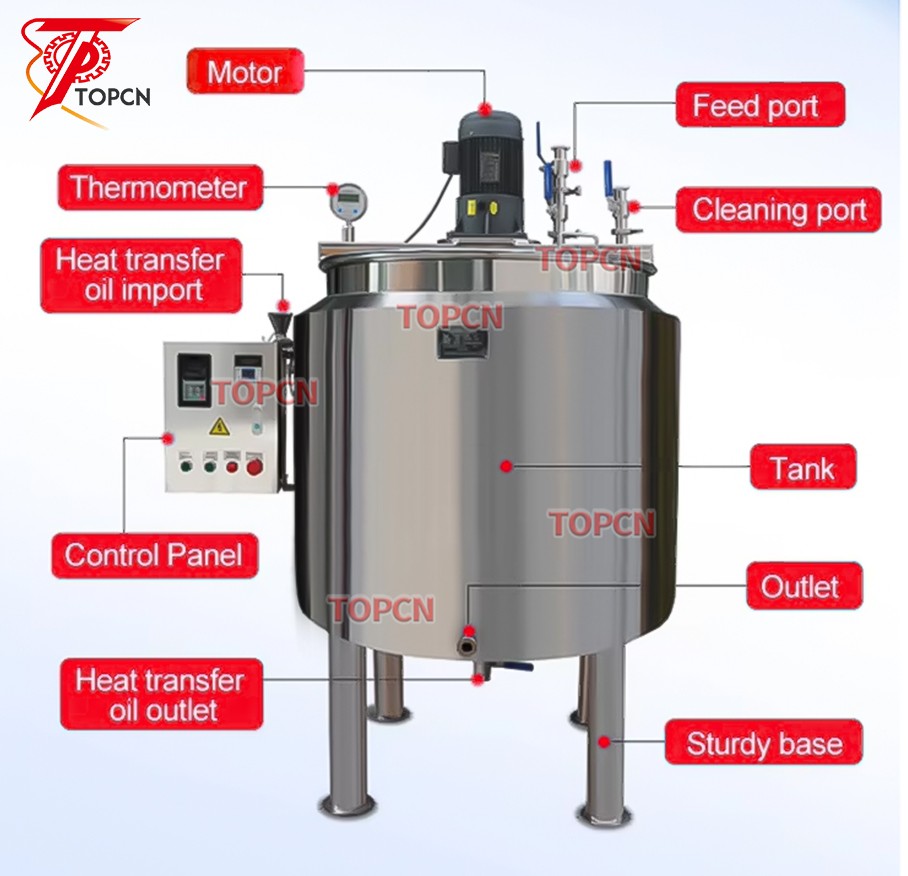

Specification

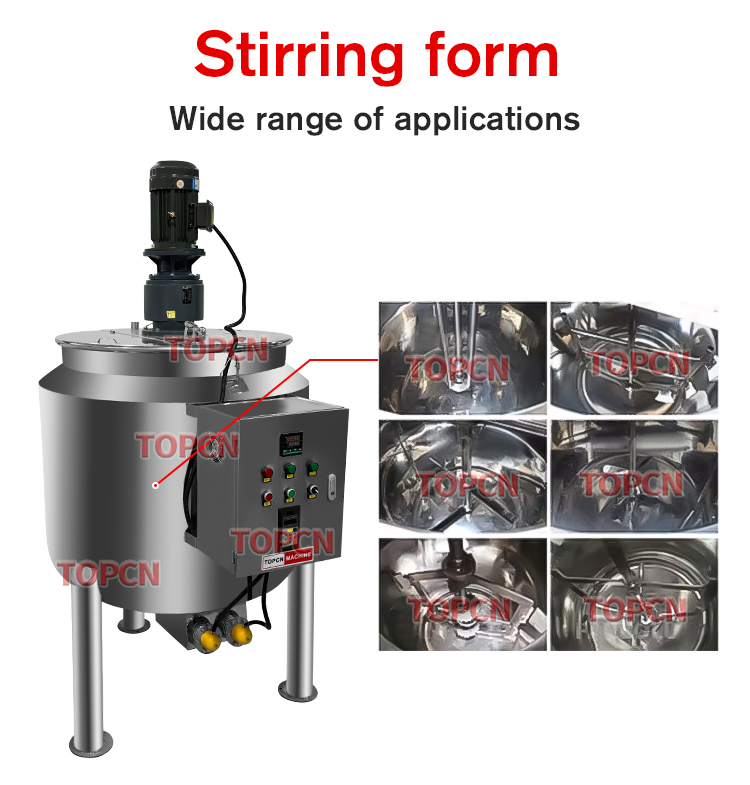

Stainless steel food grade Dissolving heating agitation tanks, widely used in beverage, food, dairy, Chemical and processing industries as dissolving Heating agitation tanks, buffer tanks, SUS316l aroma making equipment Melting tanks, High shear agitation tanks and Emulsification tanks, which can be cleaned in accordance with hygienic standards.


Factory Price 500L 1000L Double Jacket Heating and Mixing Tank

Factory Price 500L 1000L Double Jacket Heating and Mixing Tank

Factory Price 500L 1000L Double Jacket Heating and Mixing Tank

Factory Price 500L 1000L Double Jacket Heating and Mixing Tank

Factory Price 500L 1000L Double Jacket Heating and Mixing Tank


Model
Motor power(kw)
Material
Tank structure
Dimension of tank (mm)
Agitator speed(r/min)
MT-100
0.55
304/316L
Single/Multilayer
Φ500*h500*t3
0-80
MT-200
0.75
304/316L
Single/Multilayer
Φ600*h600*t3
0-80
MT-300
0.75
304/316L
Single/Multilayer
Φ750*h600*t3
0-80
MT-500
1.5
304/316L
Single/Multilayer
Φ900*h750*t3
0-80
MT-1000
2.2
304/316L
Single/Multilayer
Φ1000*h1200*t3
0-80
MT-2000
4.0
304/316L
Single/Multilayer
Φ1250*h1500*t3
0-80
MT-3000
5.5
304/316L
Single/Multilayer
Φ1500*h1500*t3
0-80
MT-5000
7.5
304/316L
Single/Multilayer
Φ1800*h1800*t4
0-80
MT-10000
11
304/316L
Single/Multilayer
Φ2000*h3000*t4
0-80
We can customize the equipment according to customer requirements.

Factory Price 500L 1000L Double Jacket Heating and Mixing Tank

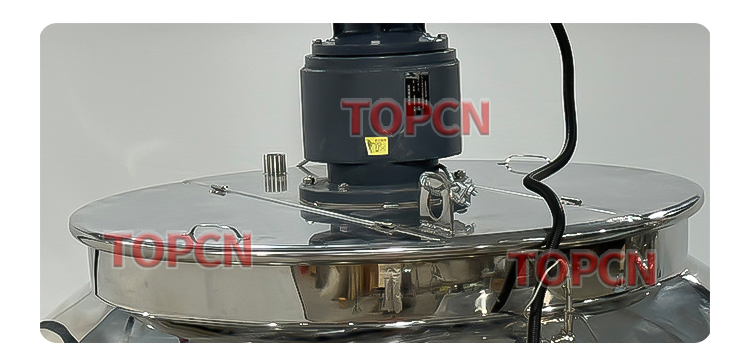

Upper cover
The top head of the mixing tank can be provided with feed inlet and visual window according to customer requirements.

Factory Price 500L 1000L Double Jacket Heating and Mixing Tank

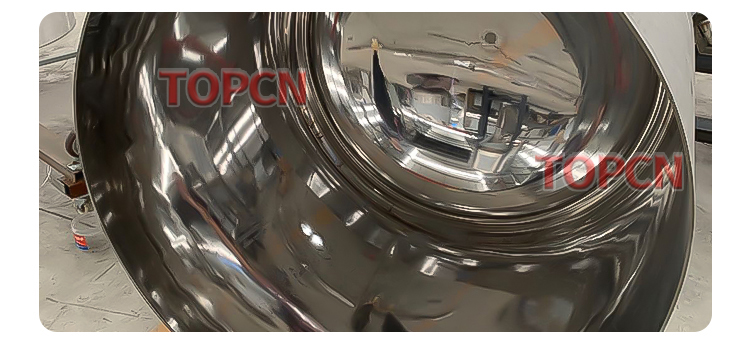

Stainless steel

Made of high-quality stainless steel,with good ductility, not easy to-deform, durable and easy to clean.

Factory Price 500L 1000L Double Jacket Heating and Mixing Tank

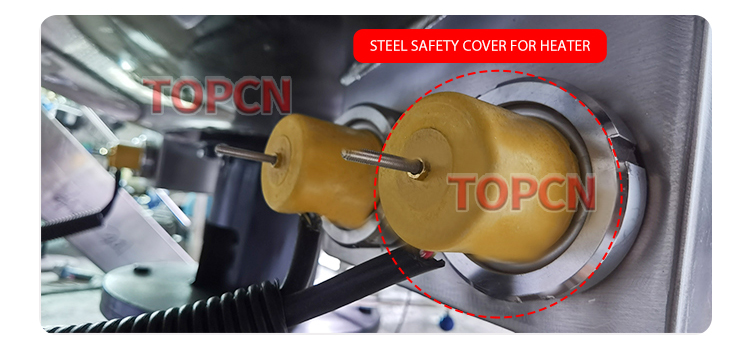

Power Heater
Tank with big power heater, which has steel saftey cover, and heating speed is fast, which can help you shorten the production speed. When using water as the heating medium, you can heat up to 100 degrees. If you need to reach more than 100 degrees, you can use heat conduction oil, which can be heated up to 300 degrees

Factory Price 500L 1000L Double Jacket Heating and Mixing Tank

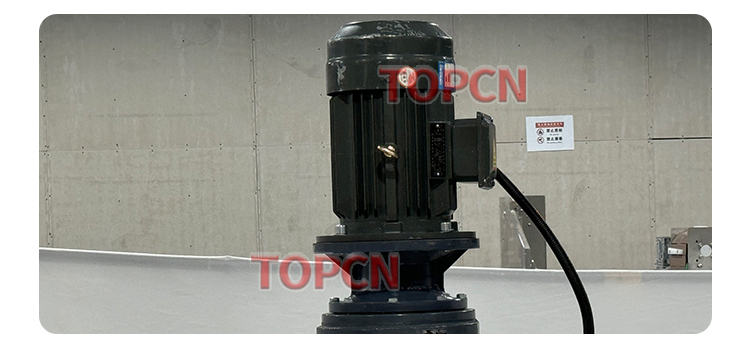

Motor
International brand motors, energy saving,stable operation and low Noise.
