5-20 Liters Liquid Filling Machinery Chemical Oil Fill Semi-automatic Weighing Filling Machine For Liquid

5-20 Liters Liquid Filling Machinery Chemical Oil Fill Semi-automatic Weighing Filling Machine For Liquid

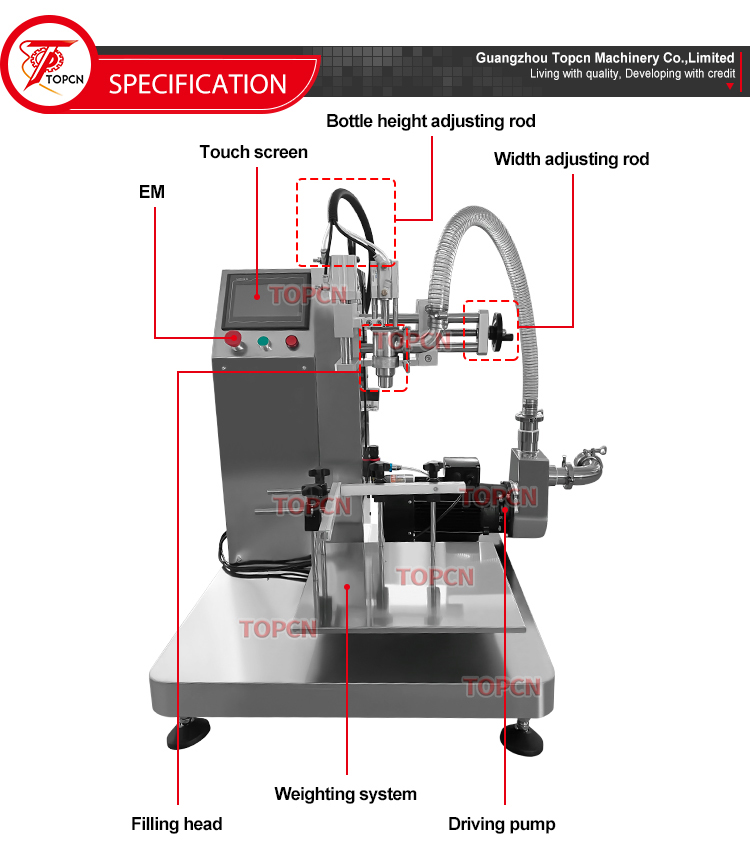

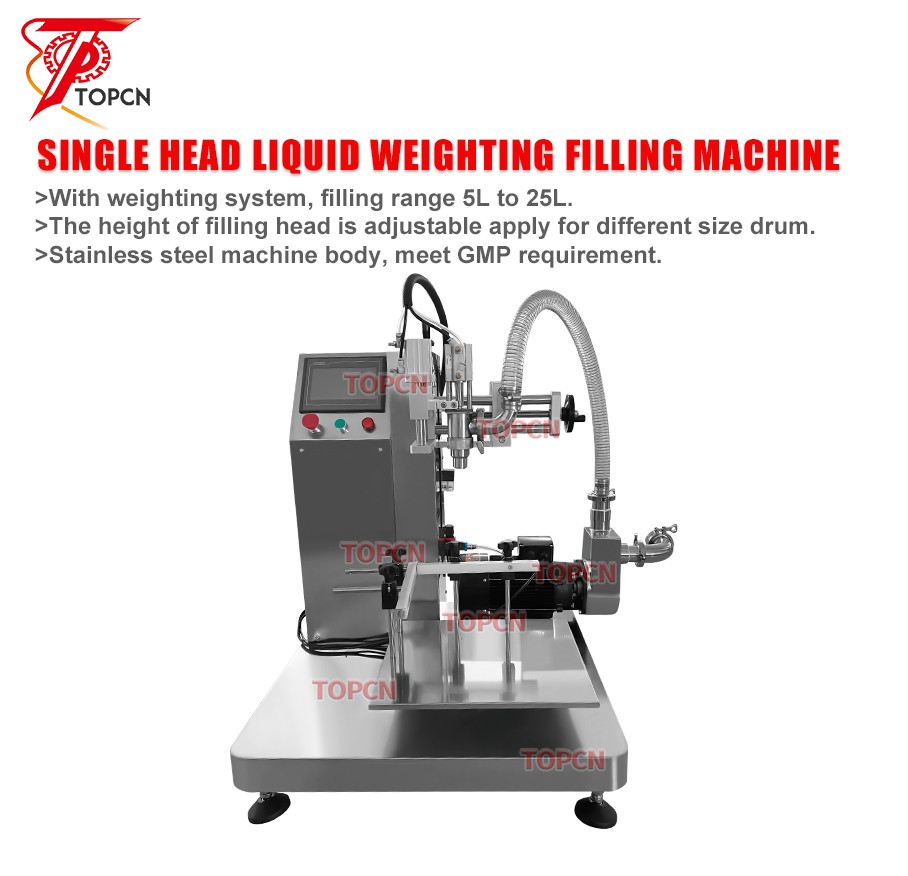

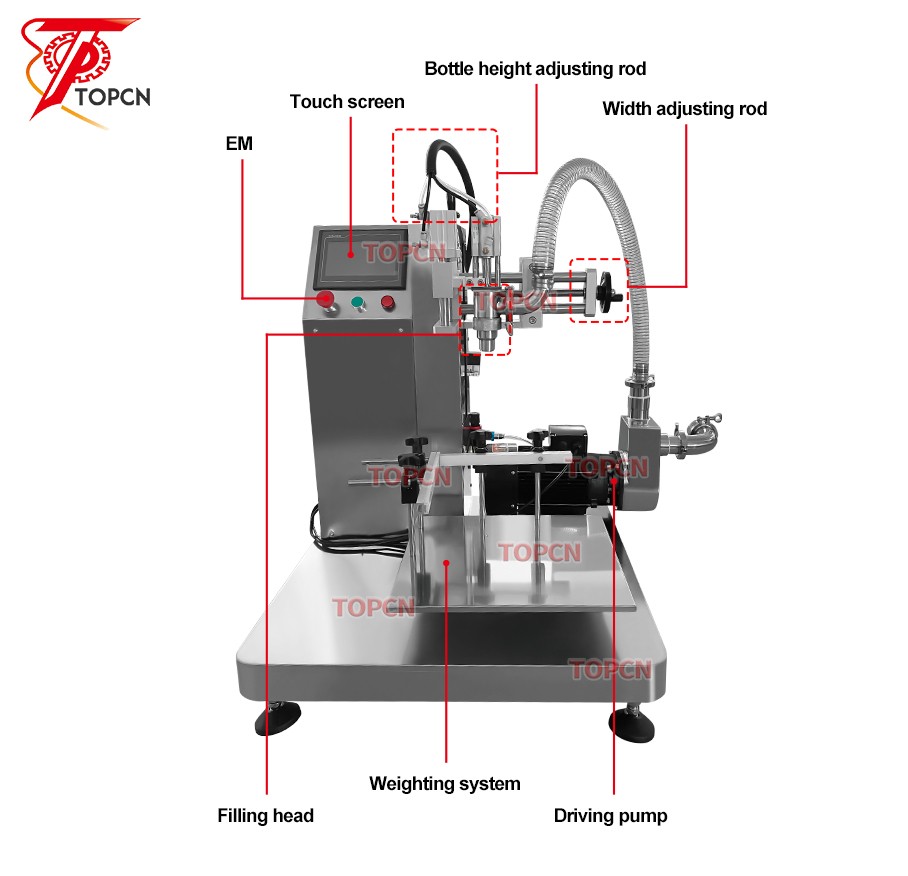

The single-head weighing filling machine integrates light, machine, electricity and gas, with accurate quantitative, high filling precision, simple operation and convenient maintenance. The equipment is made of high-quality SUS304 stainless steel, The process is isolated from the outside world to ensure the hygienic requirements of filling. The filling principle adopts weighing filling, which does not need to be equipped with high-level tanks, which simplifies the installation process and improves the filling efficiency. This machine is suitable for liquid meter weight filling. Each filling head has a weighing and feedback system, which can set the filling weight for the filling amount of each head, and has high filling accuracy.

5-20 Liters Liquid Filling Machinery Chemical Oil Fill Semi-automatic Weighing Filling Machine For Liquid

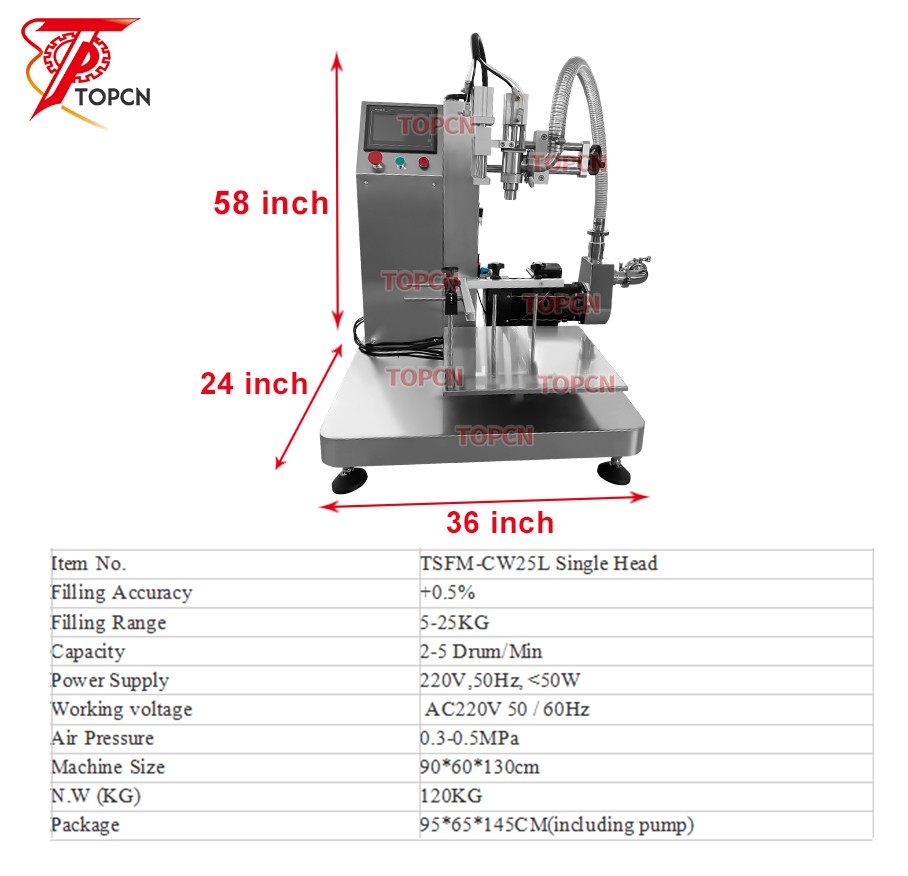

Item No.

TSFM-CW25L Single Head

Filling Accuracy

+0.5%

Filling Range

5-25KG

Capacity

5-10PCS/Min

Power Supply

220V,50Hz, <50W

Working voltage

 AC220V 50 / 60Hz

Air Pressure

0.3-0.5MPa

Machine Size

90*60*130cm

N.W (KG)

120KG

Package

95*65*145CM(including pump)
