TSFM-1504 Electric Digital Control Pump Filling Machine

  • Application
  • Description
  • Products Parameters
  • Video
  • Package&Shipping
  • FAQ

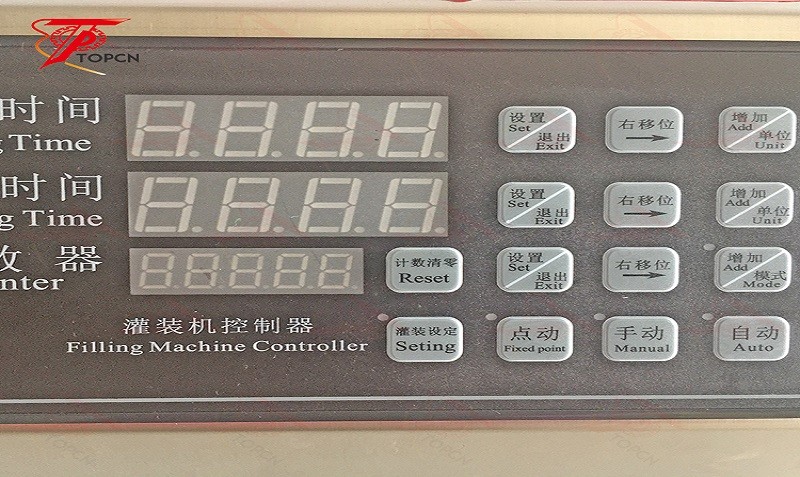

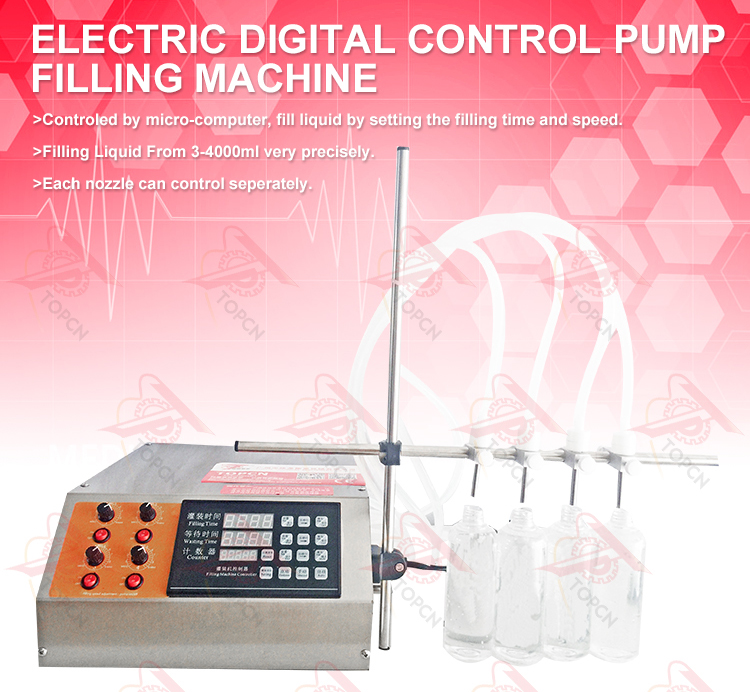

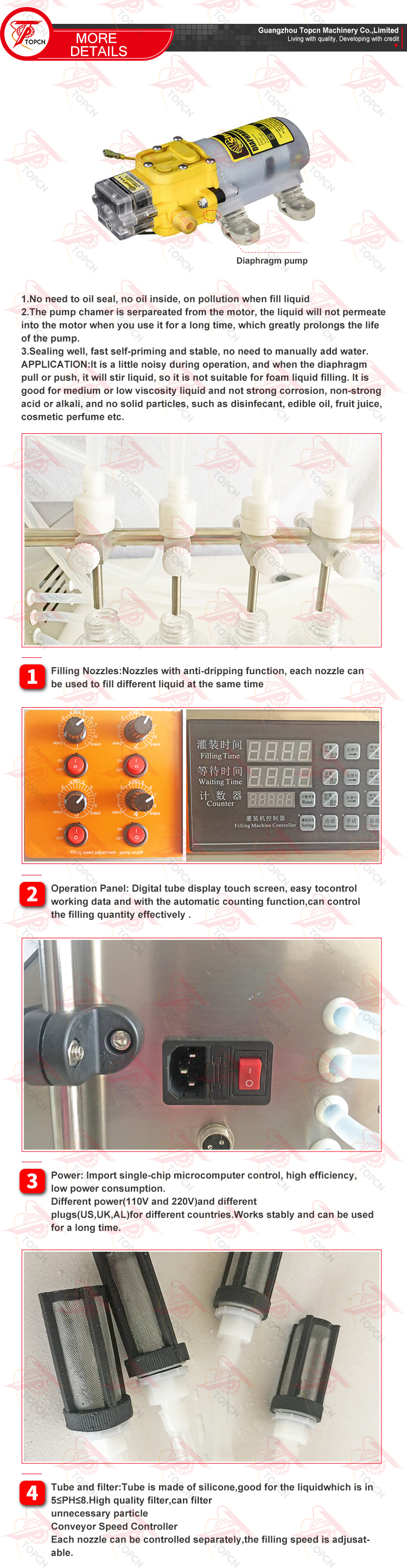

Compact Digital Control Pump Liquid Filling Machine.Controled by micro-computer, fill liquid by setting the filling time and speed.Filling Liquid From 3-4000ml very precisely per filling head.Digital Panel, very easy to operate.

TSFM-1504 Electric Digital Control Pump Filling Machine

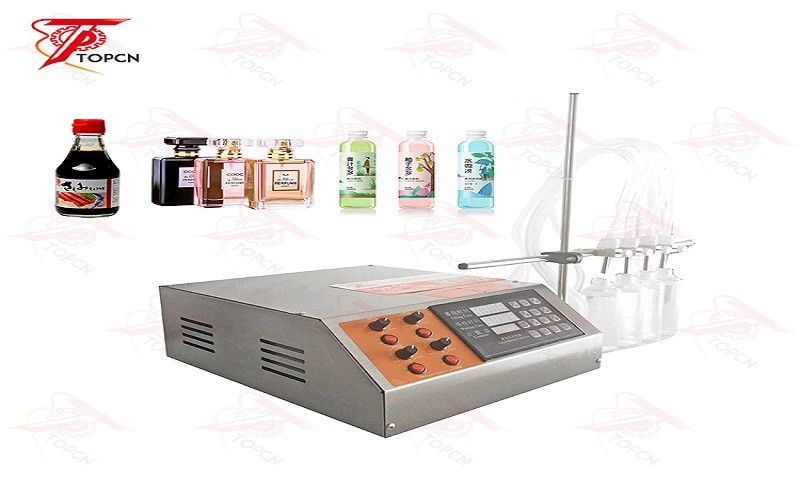

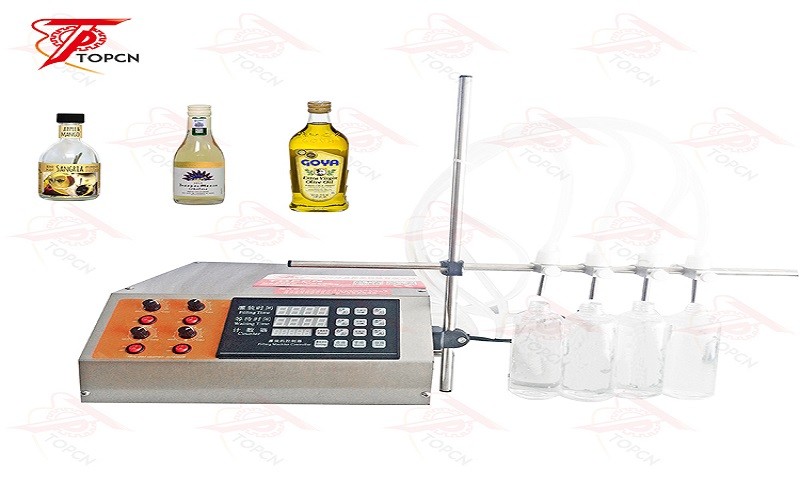

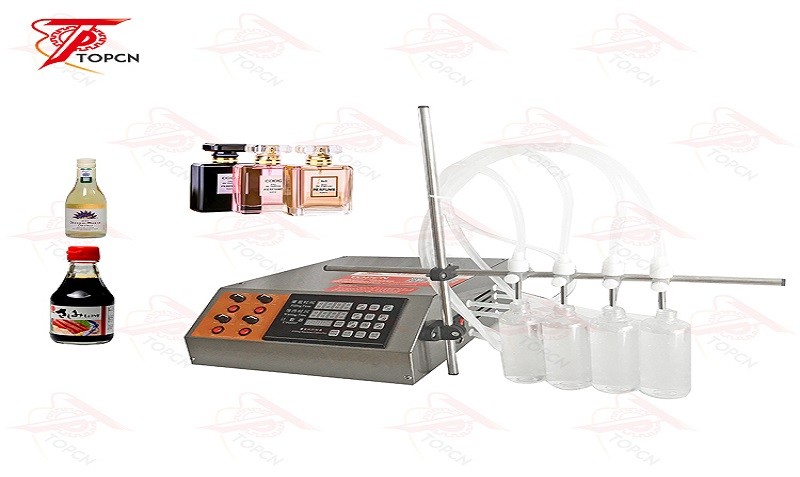

This liquid filling machine is suitable for:

Diaphragm pump for beverages,wines,vinegar,fruit juice,soy sauce,and other products.

Peristaltic pump for essence of liquid skin care products,essential oil,perfume.

Magnetic pump for corrosive liquids and highly viscous liquid.

If you need to know more, pls contact with customer service.

TSFM-1504 Electric Digital Control Pump Filling Machine

TSFM-1504 Electric Digital Control Pump Filling Machine

Specification
Compact Digital Control Pump Liquid Filling Machine.Controled by micro-computer, fill liquid by setting the filling time and speed.Filling Liquid From 3-4000ml very precisely per filling head.Digital Panel, very easy to operate.
Voltage
110/220V 50-60HZ
Power
60W
Filling Range
3ml-4000m/min for each filling head
Max Flow Rat
4L/min
Max Suck Distance
2meter
Anti-dripping Function
Available
Memory Function out of power
Available

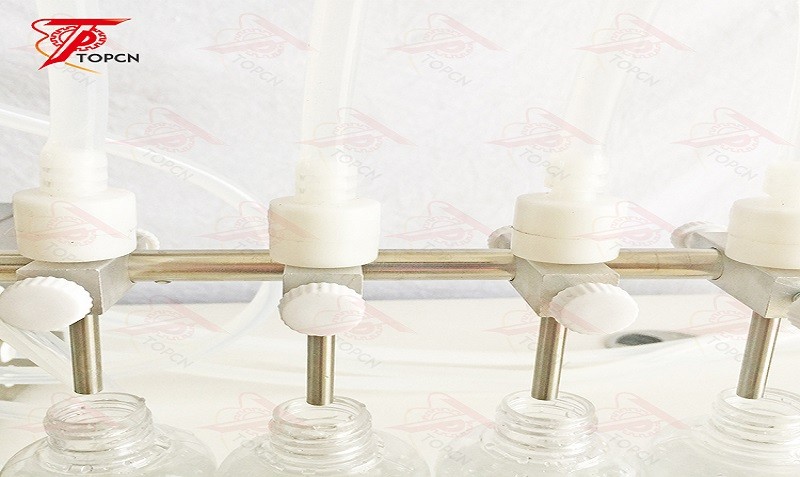

Filling nozzle
OD4/6mm

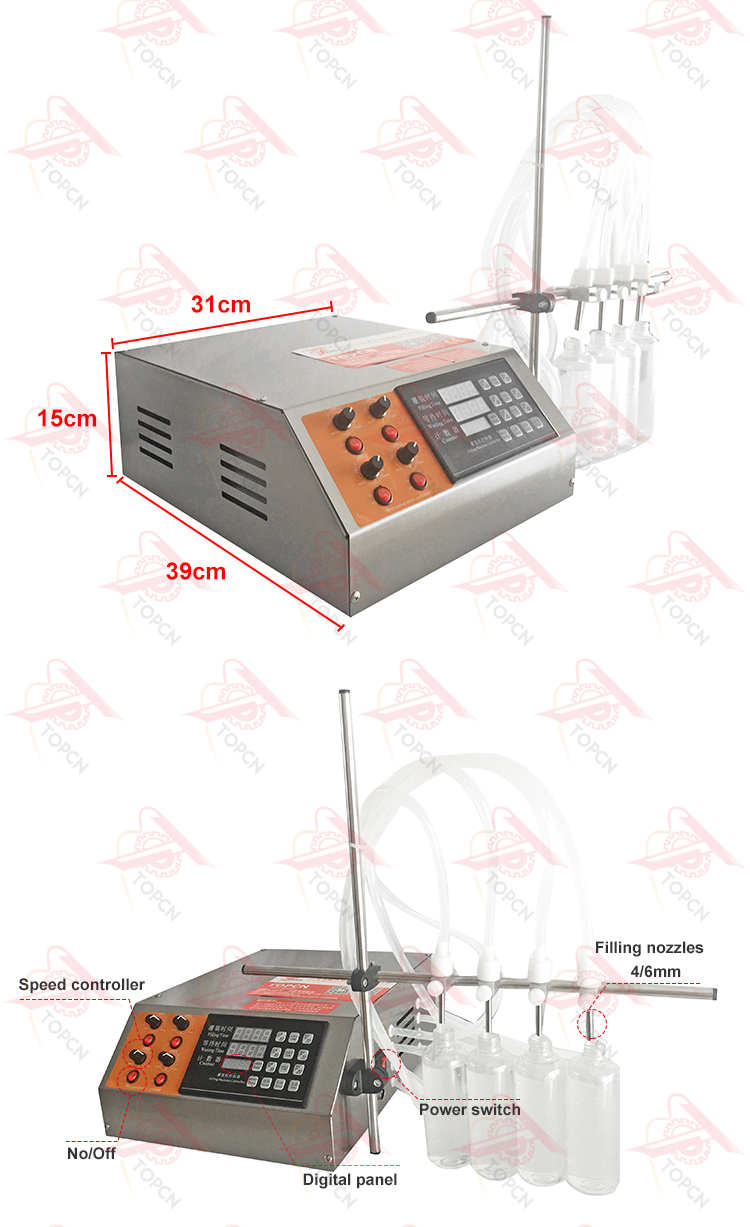

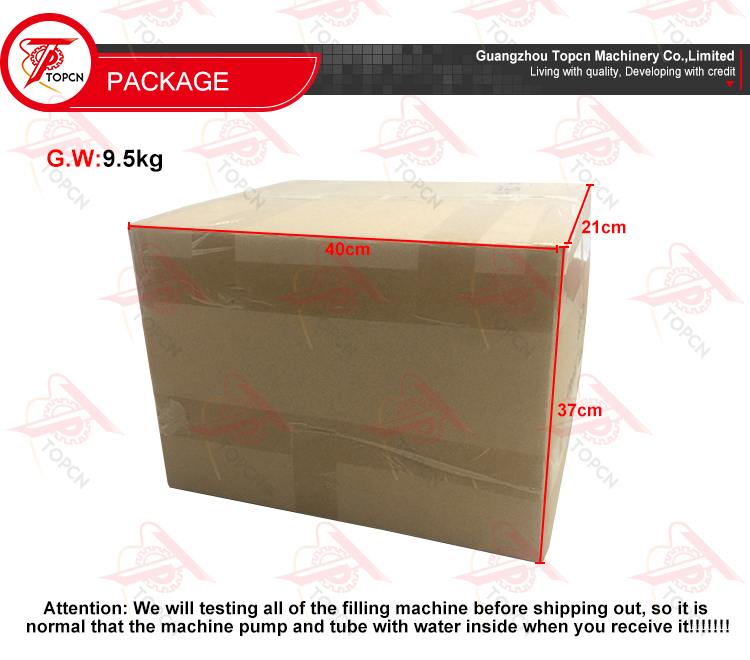

Package Size
400X370X210 mm
Net weight
8kg
Gross weight
9.35kg

TSFM-1504 Electric Digital Control Pump Filling Machine

TSFM-1504 Electric Digital Control Pump Filling Machine

TSFM-1504 Electric Digital Control Pump Filling Machine

FAQ
Q1: Are you a machine manufacturer or trading company?A1: We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory!
Q2: How do you guarantee this machine normally operating?A2: Every machine is tested by our factory and other client before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.
Q3: How can I install this machine when it arrives?A3: We will send the engineers overseas to help client installing, commissioning and training.
Q4: Could I choose the language on touch screen?A4: It's no problem. You can choose Spanish, French, Italian, Arabic, Korean, etc,.
Q5: What should I do to choose the best machine for us?A5: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider. 2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine. 3) At last tell me the inner diameter of your container to help us choose the best diameter of the filling head for you.
Q6: Do you have manual or operation video for us to know more about the machine?A6: Yes, we will send you the manual and operation video after you ask for us.
Q7: If there's some spare parts that broke, how to solve the problem?A7: Yes, we will send you the manual and operation video after you ask for us.
Q8: If there's some spare parts that broke, how to solve the problem?A8: First of all, please take the pic or make a video to show the problem parts. After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
Q9: Do you have manual or operation video for us to know more about the machine?A9: Yes, we will send you the manual and operation video after you ask for us.
Q10: If there's some spare parts that broke, how to solve the problem?A10: Yes, we will send you the manual and operation video after you ask for us.
Q11: If there's some spare parts that broke, how to solve the problem?
A11: First of all, please take the pic or make a video to show the problem parts. After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
