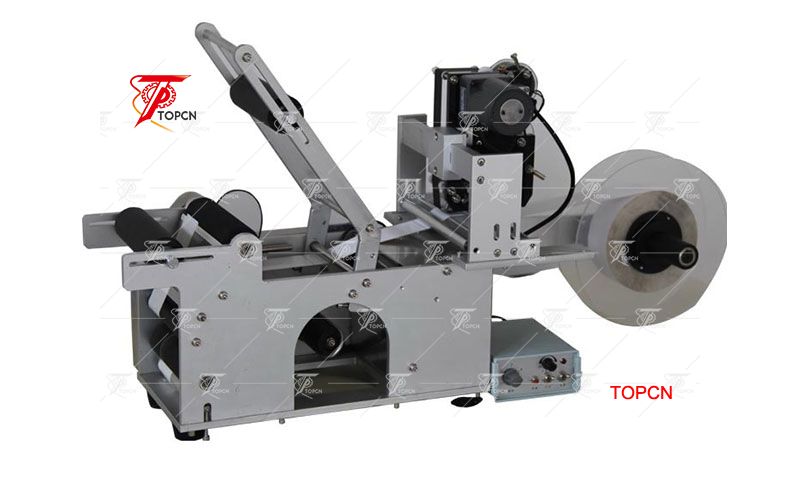

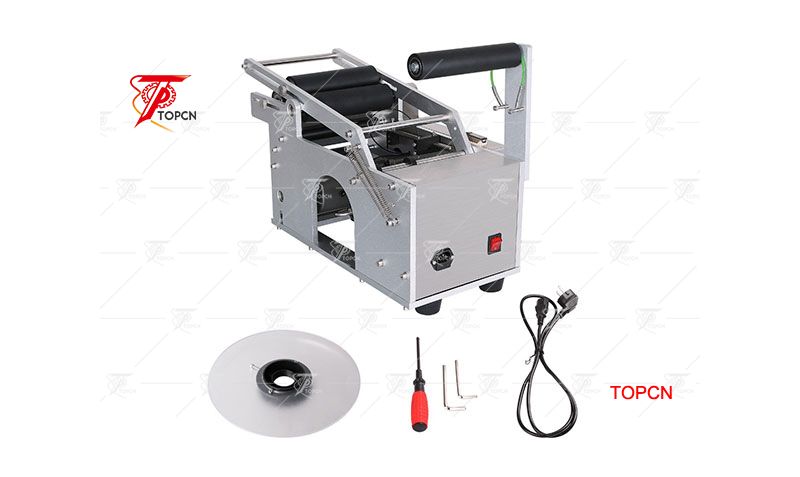

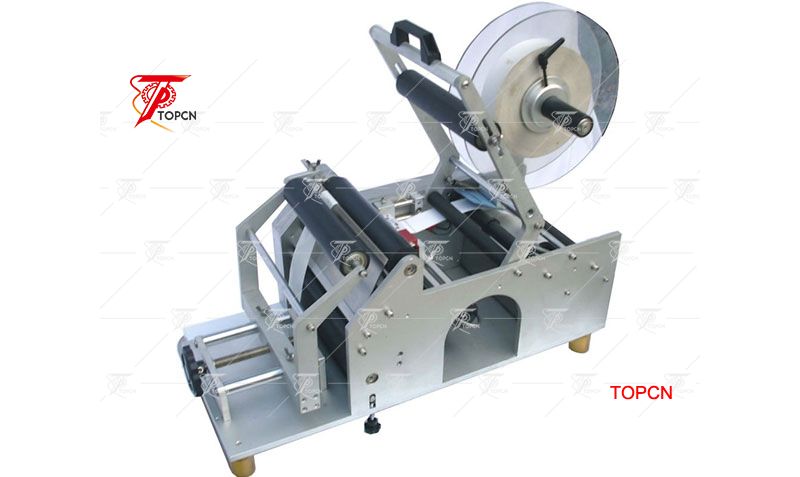

Semi Automatic Labeling Machine
- Application
- Description
- Products Parameters
- Video
- Package&Shipping
- FAQ
Automatic sticker machine, vial labeling machine, bottle labeling machine widely used for different sizes of round products such as round bottles, cans, jars, cylinder in daily chemicals, food, beverages, medicine and other industries
1, Small structure takes up less space and easy to move and load.
2, Good labeling precision and stability; Neat, no wrinkle, no bubble.
3, It has powerful function. It can achieve circumferential position labeling and non-position labeling easily.
4, It satisfy the circumferential position labeling and non-position labeling on diameter between 15-120mm bottles.
5, It is easy to use and adjust. The new workers can use or adjust it easily after simple training.
6, Conveyer parts are completely covered to avoid the abnormal conditions which make the use safer.
7, The clever design which allow user to mechanically adjust some structure combination and label winding, makes it easy to adjust the labeling position freely. All these make it easy to change products and wind labels.
8, Has 2 control methods: automatic and semi-automatic. Workers can choose either sensor control or feet step control for labeling according to reality.
9, Whole equipment is mainly made of stainless steel and high level aluminum alloy. The whole structure is strong and harmonious.
10, Has fault stop function, production counting function.
| MODEL | LPLM-R3 |
| Voltage | 220V or 110 V (Optional) |
| Motor Power | 120 W |
| Applicable Bottles of Diameter | 15-120 mm |
| Label Roll External Diameter | 275 mm |
| Label Roll Inner Diameter | 75 mm |
| Min. Label Size | 26(W) x 25(L) mm |
| Max. Label Size | 150(W) x 240(L) mm |
| Labeling Speed | 20-40 pcs/min |
| 20-40 pcs/min | ±0.5 mm |
| Weight | 25 kg |
1. DELIVERY LEAD TIME:
35-50 WORKING DAYS FOR THE SEMI AUTOMATIC MACHINE AFTER RECEIVED DEPOSIT
2. TERMS OF PAYMENT
BY 40% IN ANVANCED, THE BALANCE 60% BY T/T BEFORE SHIPMENT
3. PRICE VALID UNTIL
30 DAYS.
4. PACKING: WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT
5. PORT OF SHIPMENT
GUANGZHOU or SHENZHEN PORT
Q: What kind of labeling machine do you have?
A: Dear Customer, we have automatic and semi-automatic labeling machine for round containers and flat surface.
Some model for one label and others for two labels or even more. And we can design the machine according to your specific labeling situation.
Thus, pls fell free to send us your labeling requirements, we'll provide you satisfying labeling solution.
Q: Could we add coding machine to print date and lot No.?
A: Yes, you can chose to add coding machine to print the letters and No. you want.
It's hot stamp and can print at most three lines.
Q: What information should we supply to check the suitable model ?
A: Pls send us picture of your container and label, as well as the container and label size.
Pls also tell us what kind of label you use, if possible. (For exampe, self-adhesive, could glue, hot glue, etc.whether the label are in roll or pieces.)Then, we'll let you check the suitable model.
Q: Do you have manual or operation video for us to know more about the machine?
A: Yes,we will send you the manual and operation video after you ask for us.
Q: If there's some spare parts that broke,how to solve the problem?
A: Yes,we will send you the manual and operation video after you ask for us.
Q: If there's some spare parts that broke,how to solve the problem?
A: First of all,please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
