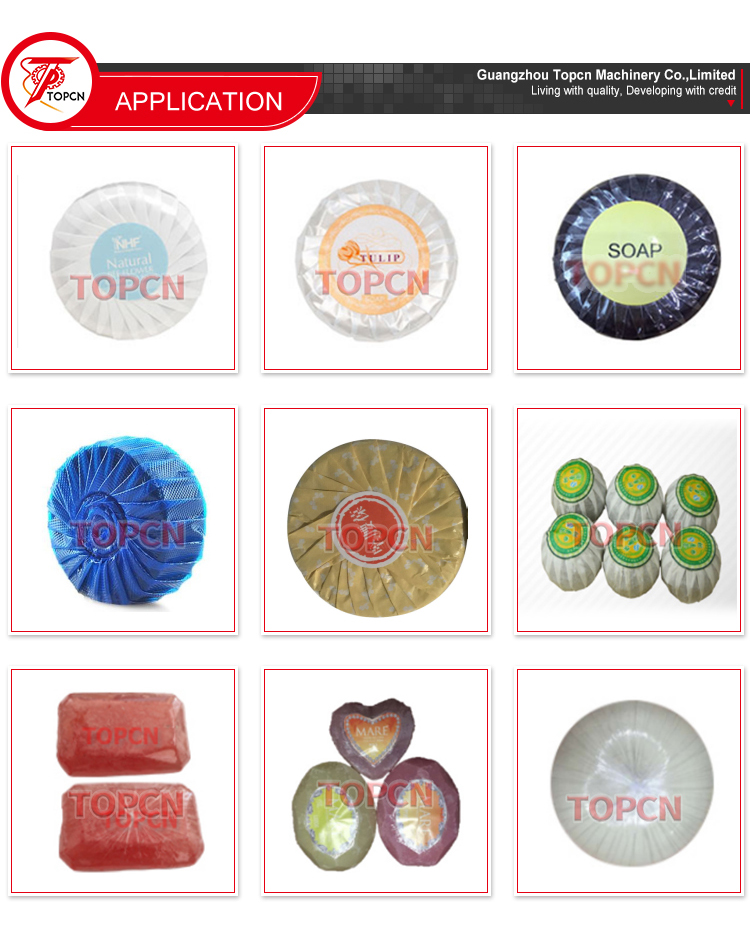

- Application
- Description
- Products Parameters
- Video
- Package&Shipping
- FAQ

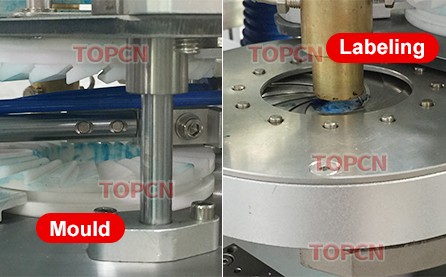

Specification:Automatic wrapping machine for round soap pleated wrapping, with automatic labeling function. Each different diameter will need one mould. Machine standard can wrap the diameter from 40mm-55mm. We also can customer built to meet special requirements. TPSW-06 equipped with one free mould.

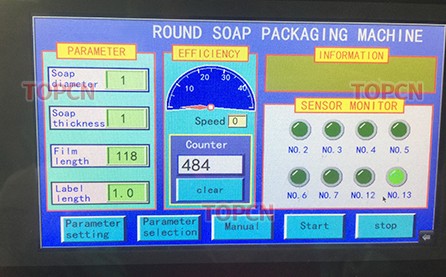

With touch screen control panel,it is more convenient to set parameter.The visual working data can help you monitor the working status easily. Improve the production accuracy.

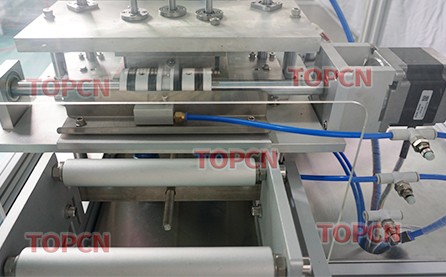

Made of high quality material,the film cutting structure can cut packaging film accurately,improves packaging accuracy

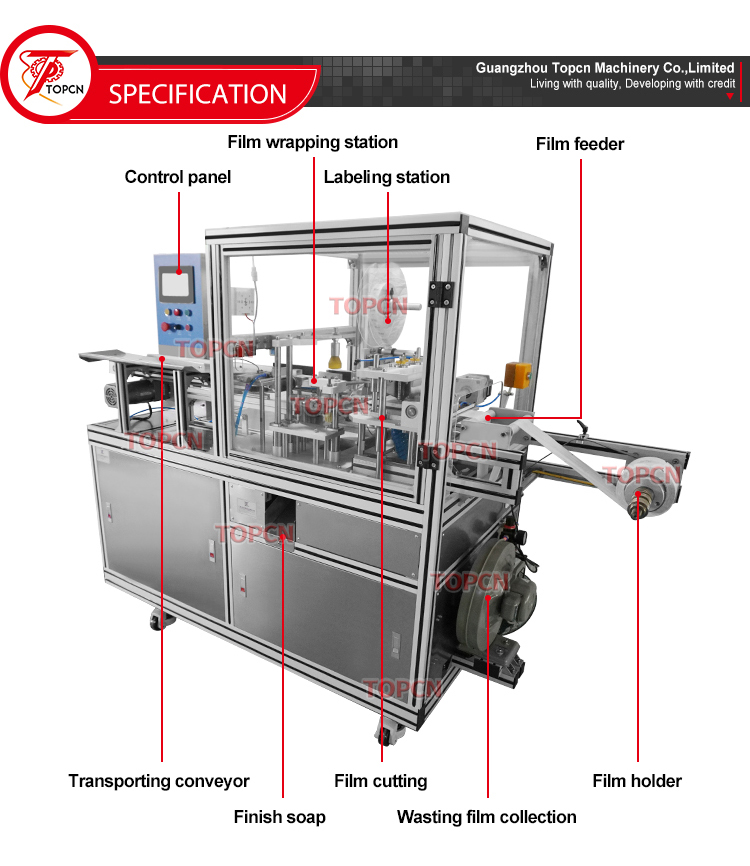

This machine can finished soap conveying,film pleating,sticker labeling, finished product conveying at one workbench,the packaging mold in the middle can be customized according to material size,it has high working speed and high accuracy.

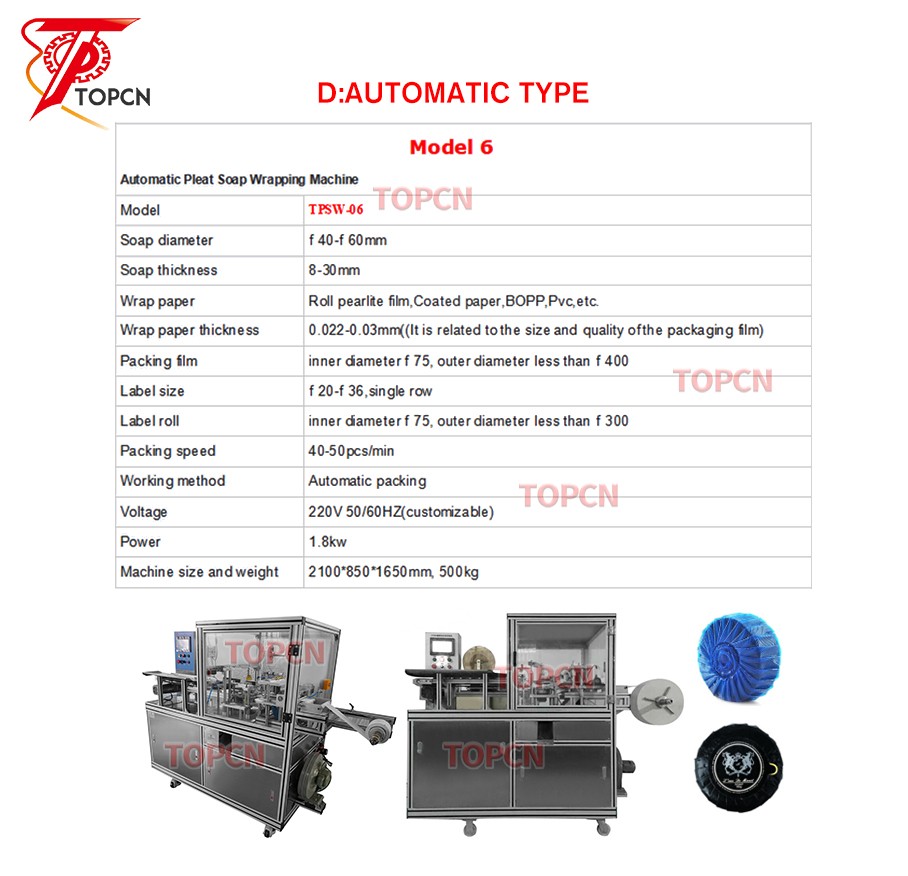

Automatic Pleat Soap Wrapping Machine | |
Model | TPSW-06 |
Soap diameter | φ40-φ60mm |
Soap thickness | 8-30mm |
Wrap paper | Roll pearlite film,Coated paper,BOPP,Pvc,etc. |
Wrap paper thickness | 0.022-0.03mm((It is related to the size and quality of the packaging film) |
Packing film | inner diameter φ75, outer diameter less than φ400 |

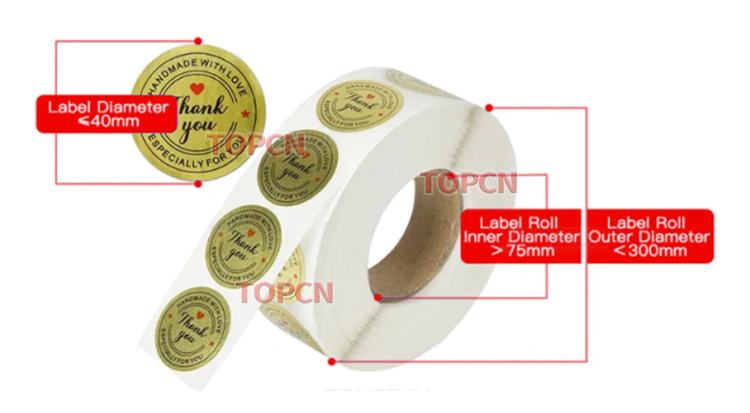

Label size | φ20-φ36,single row |
Label roll | inner diameter φ75, outer diameter less than φ300 |
Packing speed | 40-50pcs/min |
Working method | Automatic packing |
Voltage | 220V 50/60HZ(customizable) |
Power | 1.8kw |
Machine size and weight | 2100*850*1650mm, 500kg |
Machine Component | Brand | Origin |
Programmable Controller | Mitsubishi | Japan |
Step Motor | Leisai | China |
Conveyor Brake Motors | Zhongda | China |
Main Shaft Motor | Xinling | China |
Touch Screen | Weiluntong | Taiwan |
Frequency | Hailipu | China |
Contactor | Schneider | France |
Fiber Sensor | Boyi | Shanghai |
Metal Sensor | Naierqi | China |
Air Switch | Schneider | France |
Power Switch | Schneider | France |
Dc Power | Mingwei | China |
Electromagnetic Valve | Airtac | Taiwan |
Double Shaft Air Cylinder (For Pushing Soap) | SMC | Japan |
Air Cylinder (For Sucking Waste Film) | Airtac | Taiwan |
Blower (For Suckingwaste Film ) | Yongqiang | China |
Safety Door | 6mm(Thickness) Organic Glass Thickness 6mm | China |
Body Frame | Heavy Duty Aluminum Alloy | China |
Stainless Steel Door Plate | S201 | China |
