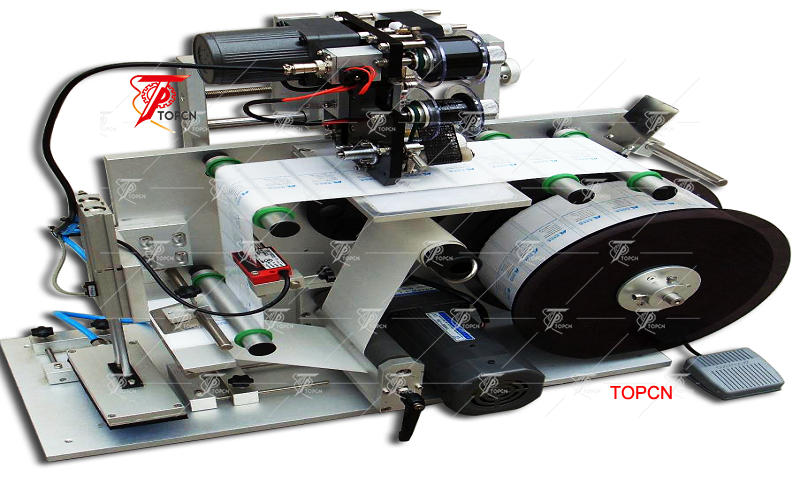

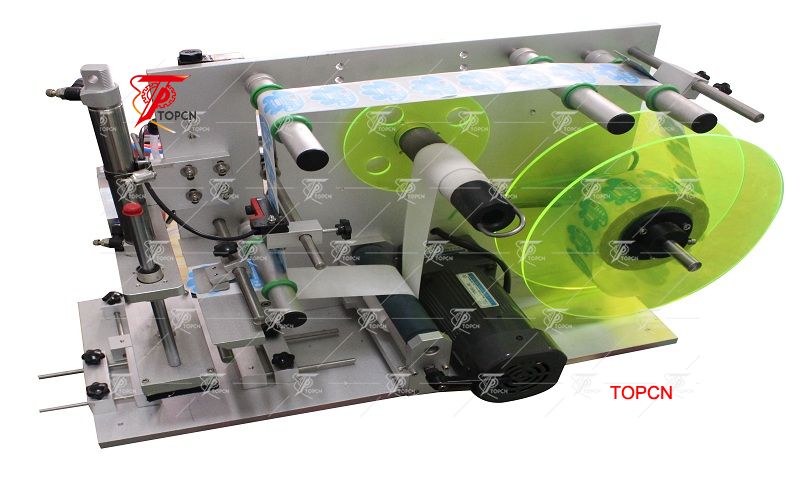

Semi automatic flat bottle labeling machine for flat surface
- Application
- Description
- Products Parameters
- Video
- Package&Shipping
- FAQ

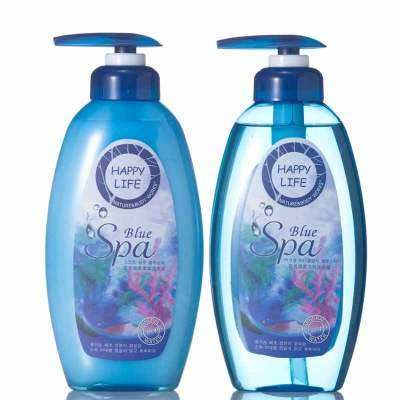

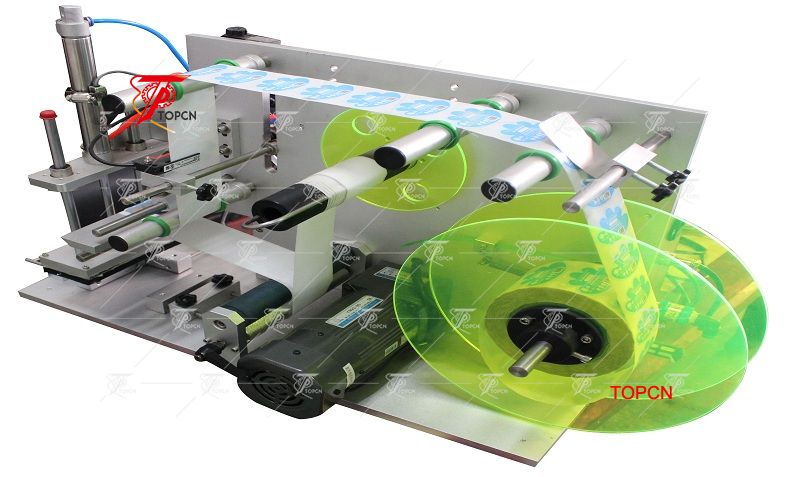

Semi automatic flat bottle labeling machine is mainly used to label bottles with flat surface,It boasts high labeling accuracy and compact structure, saving manpower and fitting into a large range of labels. Pneumatic cylinder is controlled by introducing imported sensors and program controller.
►Wide range of applications to meet the different cylinder labeling; special bottle machine need to be modified to order.
►High precision labeling, labels, end to end local deviation ≤ ±1mm
►The ingenious device extrusion material, just put the parts, auto-complete labeling
► Using card-position adjustment, different parts labeling simple switch
► Using the belt traction, mechanical stability is greatly improved.
►Tablet top design, lean, compact and powerful
►Using anodized aluminum fame and advanced computer white box, nice
►The use of advanced electric eye, objects, high tag detection sensitivity
►with coding as customer to choose

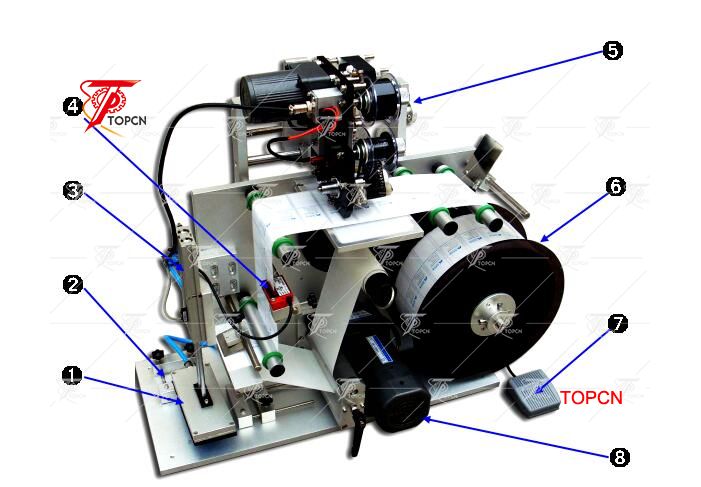

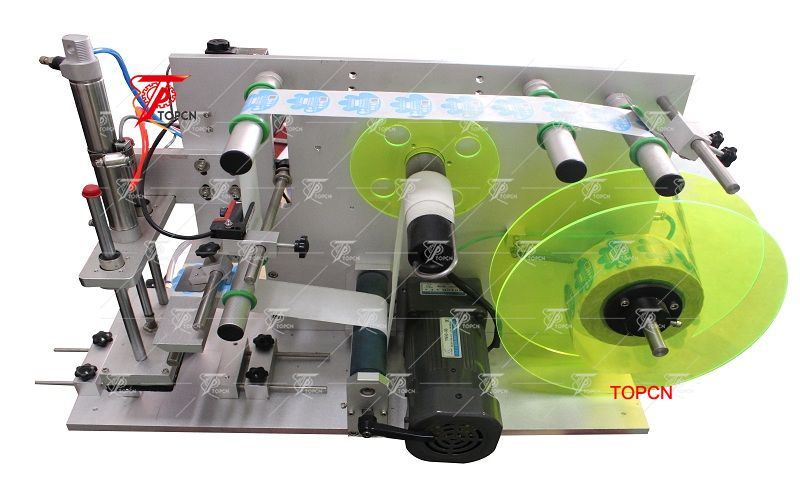

Machine structure description
1 labeling plate 2position clip 3labeling piston 4labeling sensor
5coding（option） 6label roll 7foot pedal 8 motor
Model | TPFL-S flat bottle labeling, flat labeling machine labeling machine for flat surface semi automatic flat bottle labeling machine |
Machine Size | L650xW850xH900mm |
Output Speed | Max 50 pcs/min |
Suitable Bottle Diameter | Φ10-150mm |
Label Width | max 120mm |
Label Length | 15-315mm |
Pastes the sign precision | ±1mm(except for the error of the label and bottle) |
Label Roll Inner Diameter | 76mm |
Label Roll Outer Diameter | 300mm |
Power Supply | Singe-phase electricity 220V 120W 50/60HZ |
Weight | 30 kgs |
labeling machine for flat surface The main configuration
Machine body material：SUS304 stainless steel which after a high-strength aluminum alloy and anodized
PLC）：PLC(YongHong)
Sensor：Mi Te
Labeling Motor：Domestic AC motor
Pneumatic：Taiwai AIRTAC
File guide tube material:Galvanized steel
Label disk:plexiglass
Position apron material：PE plast

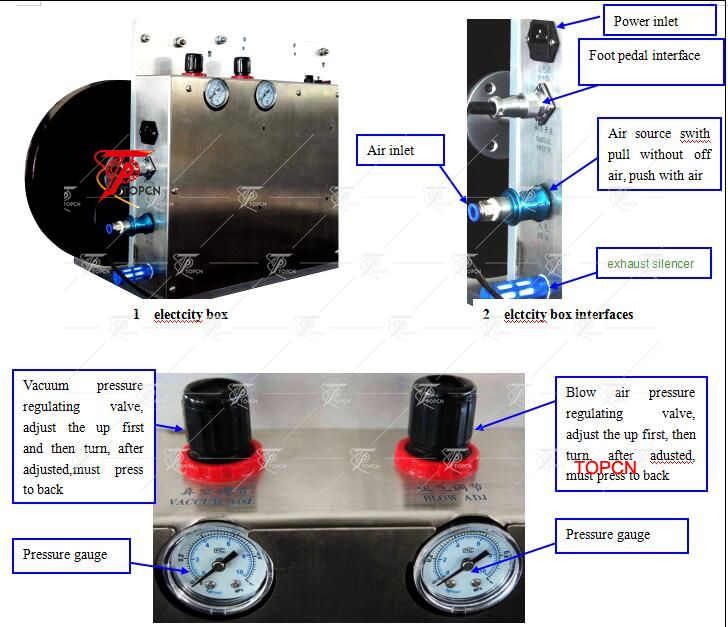

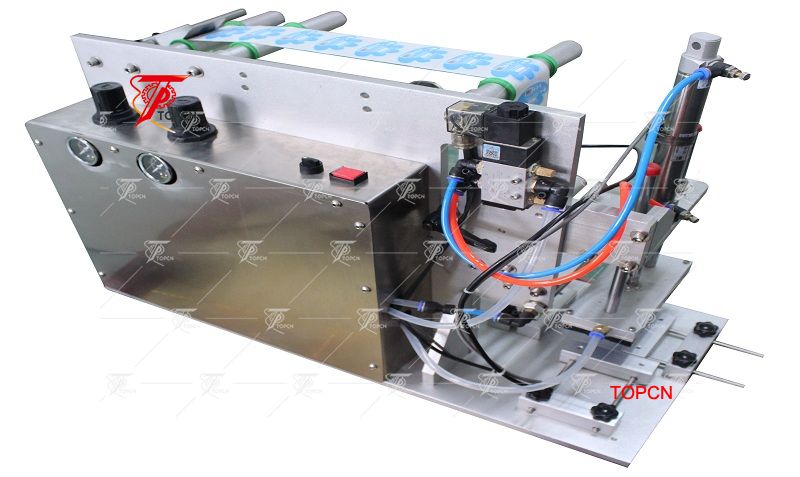

Component of flat labeling machine:
Semi automatic flat bottle labeling machine for flat surface working video
How to install label for semi automatic flat bottle labeling machine
Manual glass plastic round bottle labeling machine with coding function
semi automatic labeler equipment with PLC controlling system red wine bottle labeling machine manual
Semi Automatic Round Bottle Sticker Labeling Machine for Wine Bottle Oil Bottle

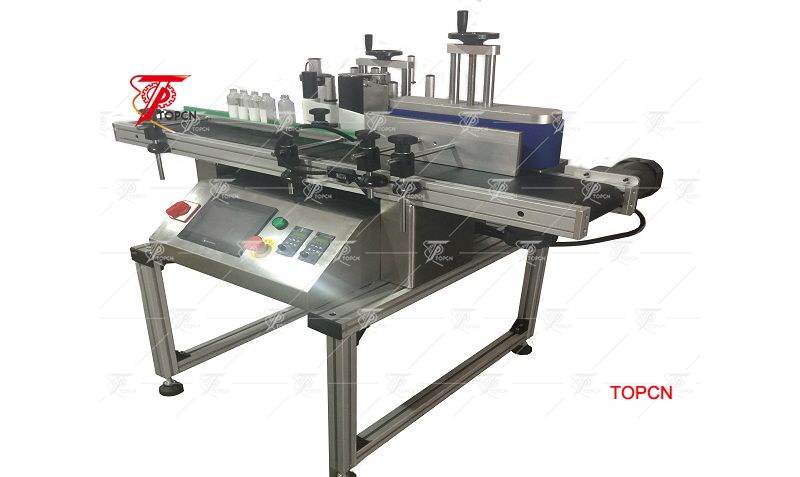

HOT SELLING SMALL DESKTOP STICKER DRINK BOTTLE LABELING MACHINE FOR TIN CANS BOTTLES
1. DELIVERY LEAD TIME:
5-7 WORKING DAYS FOR THE SEMI AUTOMATIC MACHINE AFTER RECEIVED DEPOSIT
2. TERMS OF PAYMENT
BY 40% IN ANVANCED, THE BALANCE 60% BY T/T BEFORE SHIPMENT
3. PRICE VALID UNTIL
30 DAYS.
4. PACKING: WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT
5. PORT OF SHIPMENT
GUANGZHOU or SHENZHEN PORT
Q: What kind of labeling machine do you have?
A: Dear Customer, we have automatic and semi-automatic labeling machine for round containers and flat surface.
Some model for one label and others for two labels or even more. And we can design the machine according to your specific labeling situation.
Thus, pls fell free to send us your labeling requirements, we'll provide you satisfying labeling solution.
Q: Could we add coding machine to print date and lot No.?
A: Yes, you can chose to add coding machine to print the letters and No. you want.
It's hot stamp and can print at most three lines.
Q: What information should we supply to check the suitable model ?
A: Pls send us picture of your container and label, as well as the container and label size.
Pls also tell us what kind of label you use, if possible. (For exampe, self-adhesive, could glue, hot glue, etc.whether the label are in roll or pieces.)Then, we'll let you check the suitable model.
Q: Do you have manual or operation video for us to know more about the machine?
A: Yes,we will send you the manual and operation video after you ask for us.
Q: If there's some spare parts that broke,how to solve the problem?
A: Yes,we will send you the manual and operation video after you ask for us.
Q: If there's some spare parts that broke,how to solve the problem?
A: First of all,please take the pic or make a video to show the problem parts.
After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
