300L 500L Stainless Steel Heated Mixing Tank Liquid Shampoo Lotion Blender Beverage Fruit Juice Mixer Machine Price
- Application
- Description
- Products Parameters
- Video
- Package&Shipping
- FAQ

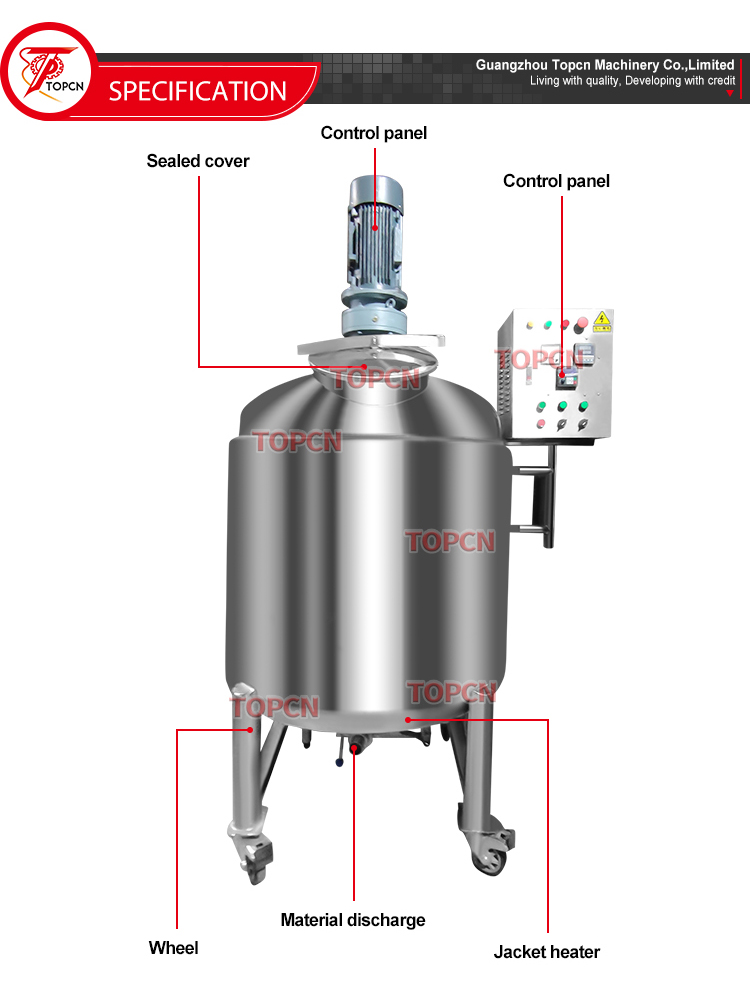

Specification

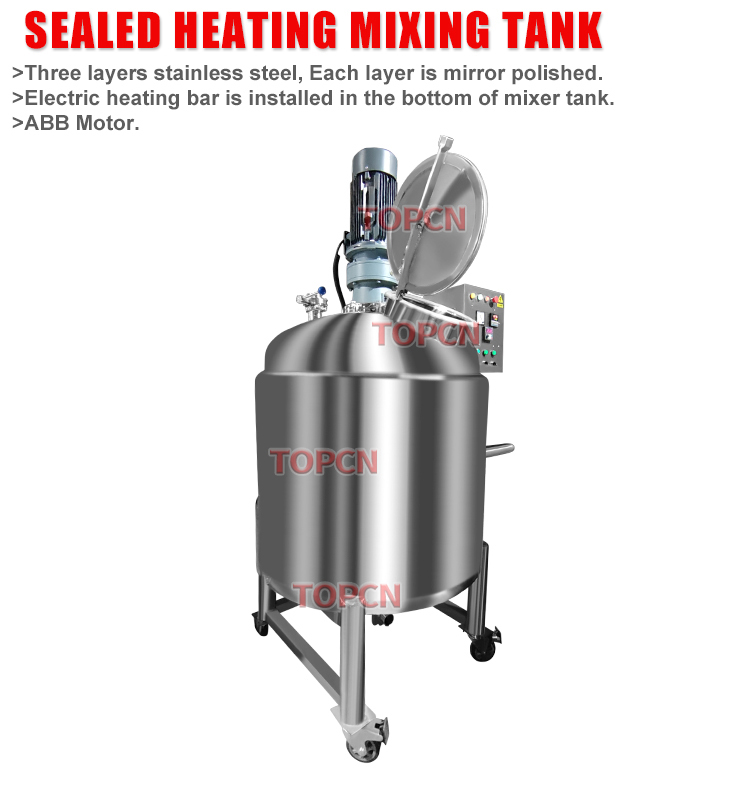

Blending reacting boiler is mainly suitable for preparation of liquid detergents (such as cleanser essence,shampoo,shower gel and liquid soap etc.). Integrating blending ,dispersing ,heating and cooling etc. functions.The reacting machine is and ideal device for liquid preparation in various factories.
CHARACTOR OF OUR MACHINE
High speed disperser can powerfully mix and disperse viscous solid and liquid materials,and rapidly dissolve many indissoluble materials such as AES,AESA and LSA during the production of liquid washing products,and thus,saving energy Consumption and shortening production period.
The main blending adopts step less speed variation device which can reduce the formation of bubbles when the temperature is low and the viscosity is high.
The gear pump circulating discharging device can accelerate the forming of products and realize rapid discharging.

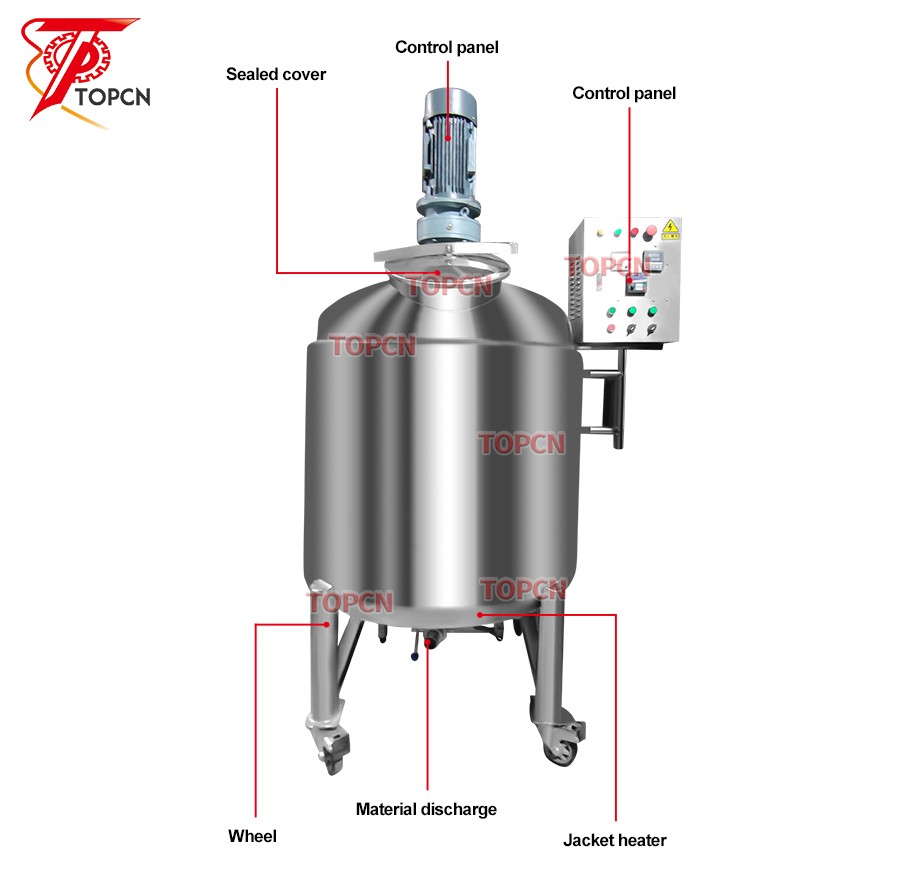

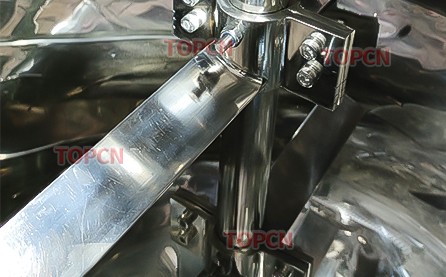

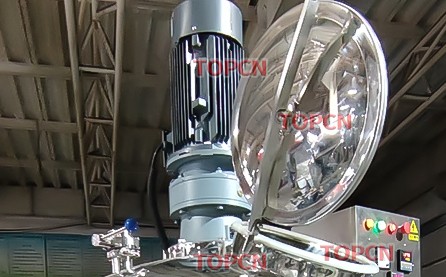

Blending Paddle
SUS 316L material paddle with scraper
Speed 0-63rpm

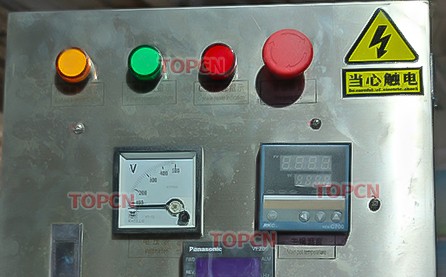

Operation Panel
Equipped with frequency conversion, temperature setting, and heating function.

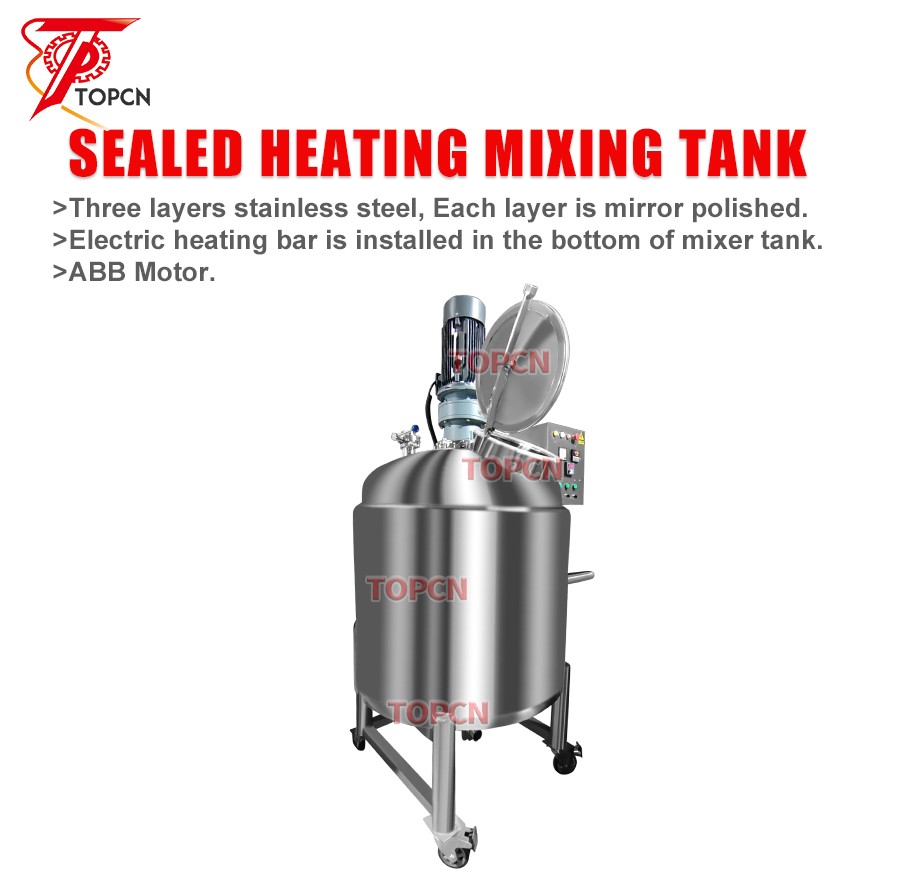

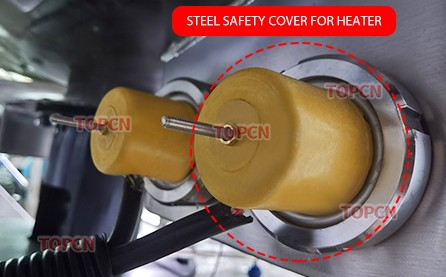

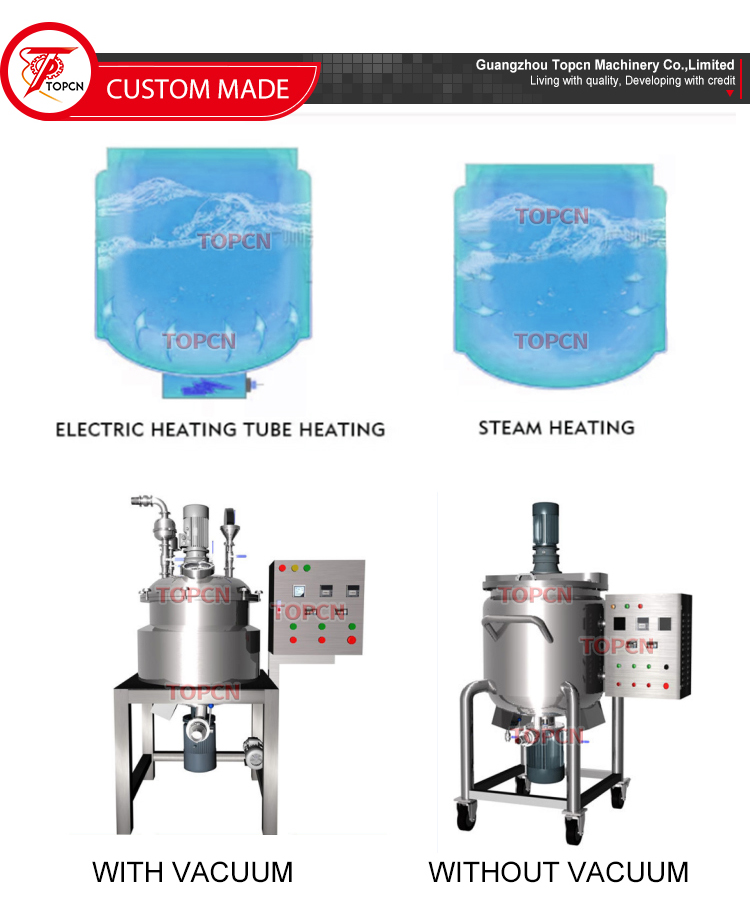

Heater
The jacket is electrically heated, and the jacket equipped with a
thermal insulation layer.

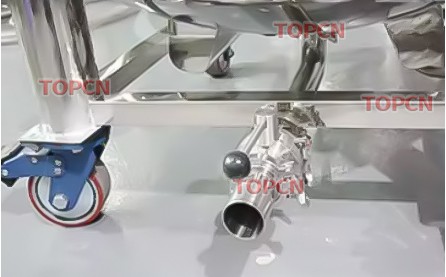

Material Discharge
It is equipped with a 50mm discharge port and is also designed with movable wheels.
Seal cover
With locks to keep the tank sealed.

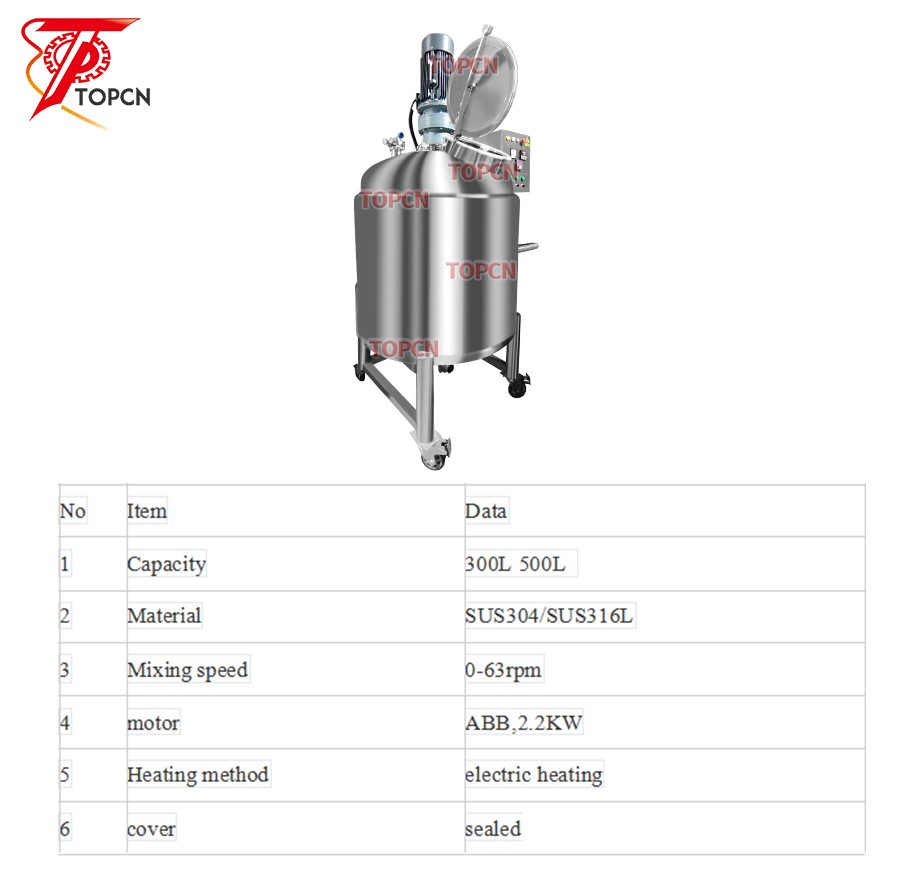

Model | Working | Mixing | Homogenizing | Heating way | Remark | ||
capacity | Power | Speed | Power | Speed | Suggestion | ||
TPMT-100 | 100L | 0.55KW |
0.63RPM | 1.5KW |
0-2880RPM | Electric heating |
The heating method can be selected. |
TPMT-200 | 200L | 1.5KW | 2.2KW | ||||
TPMT-300 | 300L | 1.5KW | 3KW | ||||
TPMT-500 | 500L | 2.2KW | 4KW | Electric or steam heating
| |||
TPMT-1000 | 1000L | 4KW | 7.5KW | ||||
TPMT-2000 | 2000L | 5.5KW | 11KW | ||||
TPMT-3000 | 3000L | 7.5KW | 15KW | ||||
Motor brand | Motor power | Jacket temperature | Heating way | Polish |
Siemens Joint venture | Top Blending power : 0.75 KW 0-63R/MIN Top stirred power : 2.2 KW 0-1440R/MIN Bottom Homogenizer power : 2.2KW 0-2880 R/MIN |
≤100℃ | Electronic heating Power :9kw running water cooling |
300MESH(sanitary level) |
Electric Box | Sealing form of homogenizer | Temperature sensor | Pot body stents | welding form |
SUS304-2B | mechanical seal | Pt100 thermometer | Stainless steel | Automatic welding , no dead ends |
Remark: 1.For electronic heating ,you can add water or conduct oil inside jeckets.However if you heating with conduct oil ,there is no cooling. 2.Normally the products can be poured out from bottom outlet,but if you want it not cost too much time,you can connect a rotor pump to pump it out. 3.We provide some spare parts based on experience,and one year warranty for this machine,and provide service for the whole life of the machine in 24 hours.Working video and manual operating will be provided with machine also. | ||||
