Automatic wrapping machine for toilet block pleated wrapping
- Application
- Description
- Products Parameters
- Video
- Package&Shipping
- FAQ

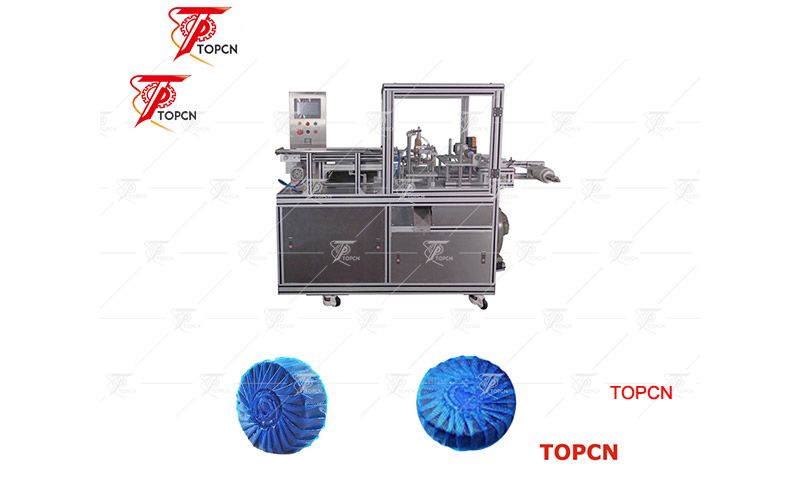

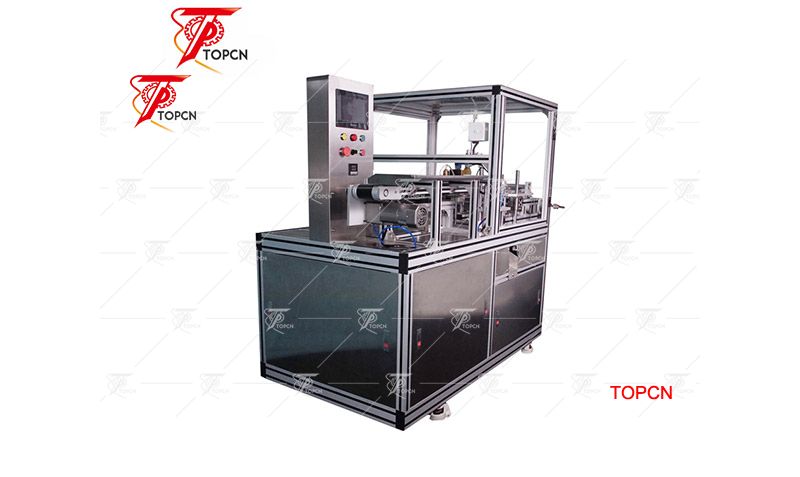

Automatic wrapping machine for toilet block pleated wrapping. Each different diameter will need one mould. Machine standard can wrap the diameter from 40mm-60mm. We also can customer built to meet special requirements. TPSW-P800 equipped with one free mould.

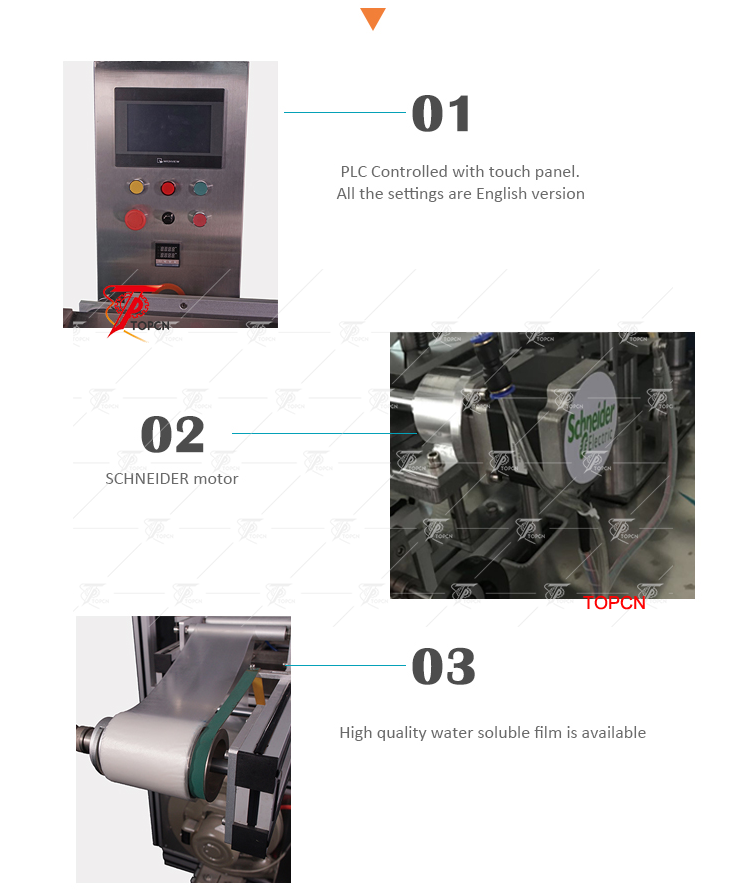

PLC with man-machine interface touch screen, can intelligent control, convenient to setting parameter.
2. Check the breakdown by itself, and the fault display is clear.
3. Convenient to replace the mould, easy to debug.
4. The transmission system is concise, made the work more reliable, the maintenance more convenient.
5. All control work by the software implementation, convenient to adjust its function and upgrade its technology, will never be backward.
Model Name | Automatic toilet block pleated wrapping |
Model No. | TPSW-P800 |
Packing Speed | 10-50 pcs/min |
Suitable Toilet Block Diameter | Block dia.40-60mm Block thickness:10-50mm Note: different soap dia. need different mould. SW-P800 equipped with one free mould |
Applicable Packaging Film | Water-soluble packaging film |
Film Thickness | 0.025-0.05mm |
Packaging Film Width | 95-150mm |
Packaging Film Roll Inner Diameter | less than or equal to 75mm |
Packaging Film Roll Outer Diameter | less than or equal to 500mm |
Voltage | 220V 50Hz (it can be customized) |
Power | 2000W |
Machine Net Dimensions | L2200*W950*H1600mm |
Machine Net Weight | 550kg |
Package Dimensions | L2310*W1070*H1640mm |
Machine Gross Weight | 620kg |
1. DELIVERY LEAD TIME:
25-30 WORKING DAYS FOR THE SEMI AUTOMATIC MACHINE AFTER RECEIVED DEPOSIT
2. TERMS OF PAYMENT
BY 40% IN ANVANCED, THE BALANCE 60% BY T/T BEFORE SHIPMENT
3. PRICE VALID UNTIL
30 DAYS.
4. PACKING:WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT
5. PORT OF SHIPMENT
GUANGZHOU or SHENZHEN PORT
1, Q: Soap industry production process?
A, Basically, the soap production need 2steps:
a, using all kinds of oil&fast as material to produce semi-finished soap noodle;
b, using seme-product soap noodle to produce end bar soap.
2, Q: What are the kinds of the soaps?
A: For convenience, we separate the soap into two kinds, toilet soap for washing hand&taking bath, herbal soap, hotel soap, antiseptic soap are included;
The second kind is laundry soap for washing clothes, etc.
3, Q: What kind of oil is suitable for soap production?
A: All kinds of vegetable oil and animal fats are usable, palm oil, cottonseed oil, tallow oil, coconut oil, sunflower oil, etc.
4, Q: What is the floor of the workshop size?
A: For oil line: 35*7m with height 7m;
For soap noodle line: 25*3m with height 4m.
5, Q: What is the formula?
A: Raw material is oil, caustic soda and salt; semi-product is soap noodle, perfume, and color.
Accurate formula based on your local market's request is available after confirmation of order.
6, Q: How about the Engineer and technique support?
A: 1, We would send engineer overseas for machine installation, staff training, and production test running, till your own staff can operate the machine well and product out qualified soaps.
2, During the lifespan of our machines, we should give consistent technique support and service, and we are the pleasure to be in service of you.(24hours online)
