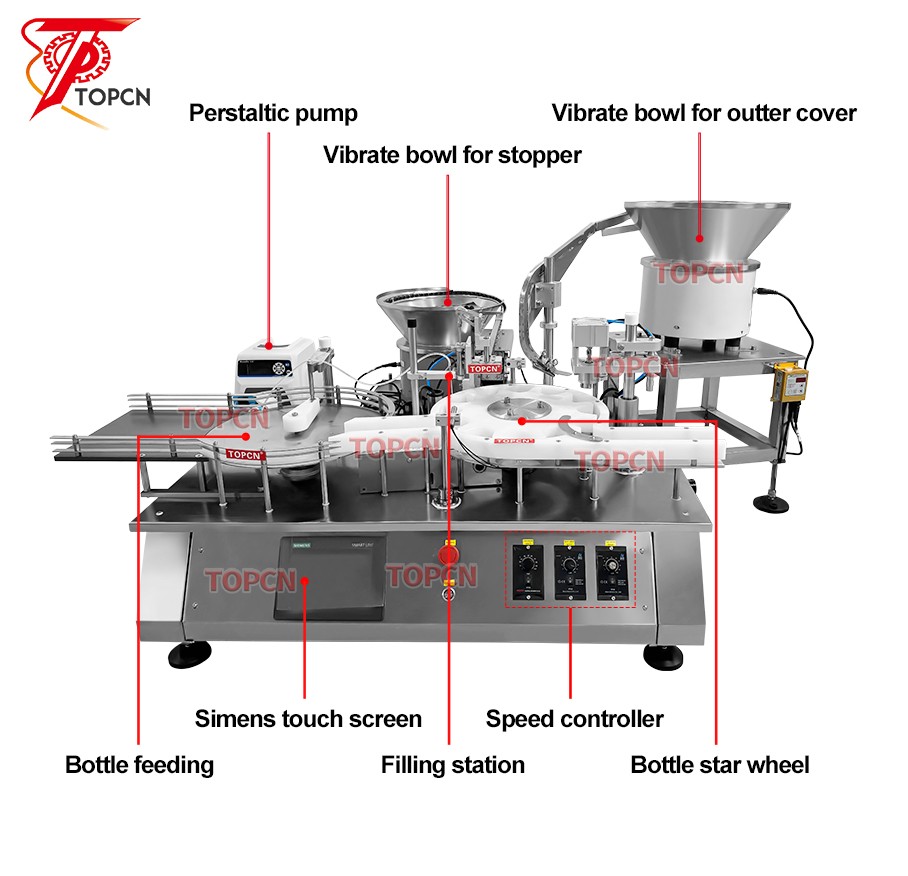

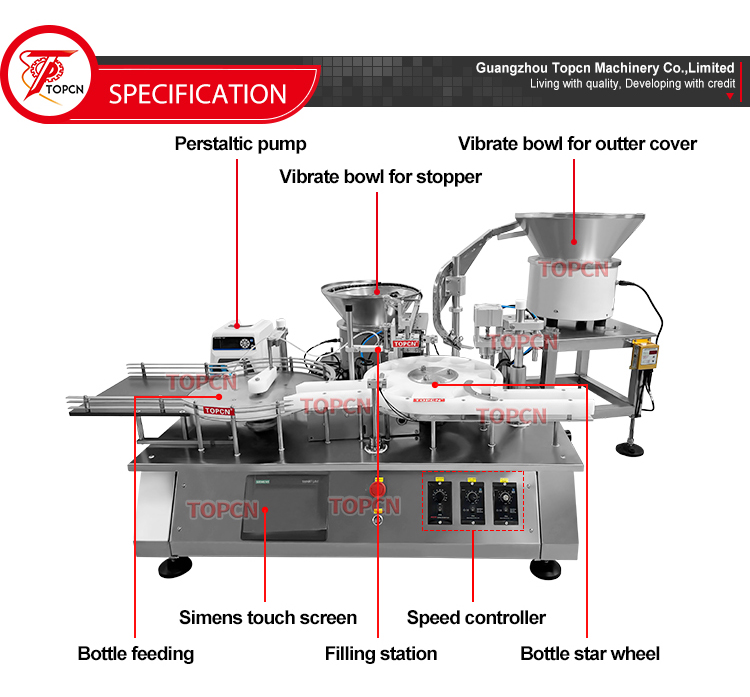

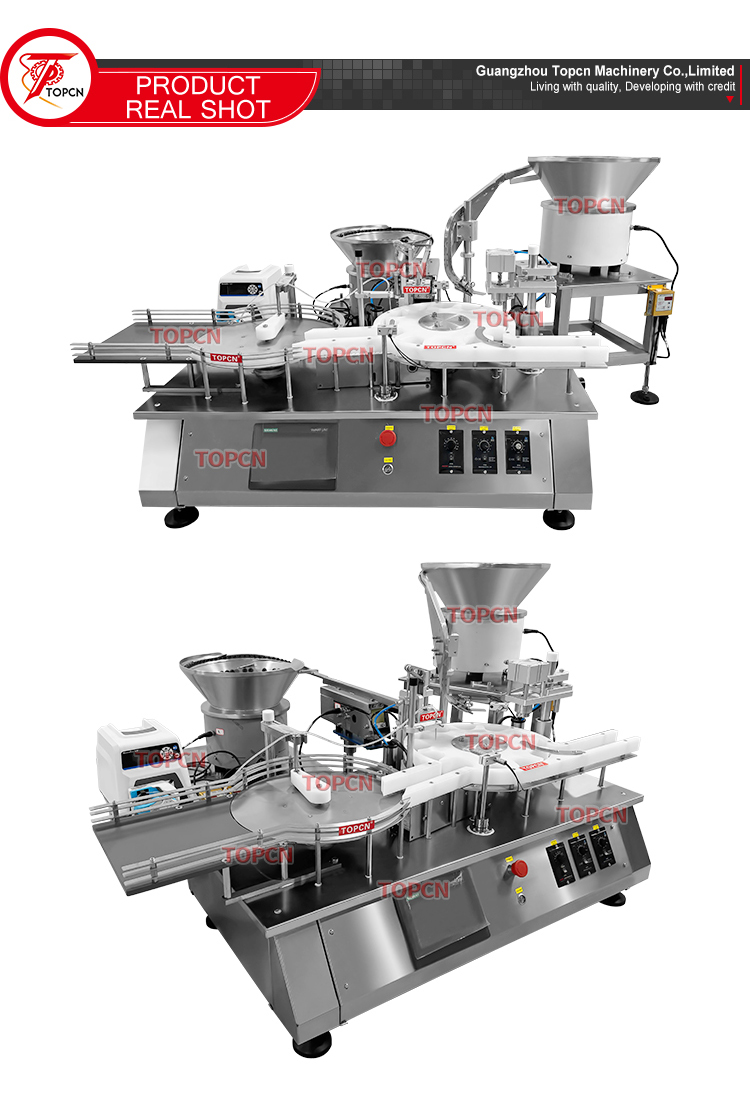

Full Automatic Desktop Peristaltic Pump Small Volume Liquid Glass Vial Filling Stopper Crimping Capping Machine
- Application
- Description
- Products Parameters
- Video
- Package&Shipping

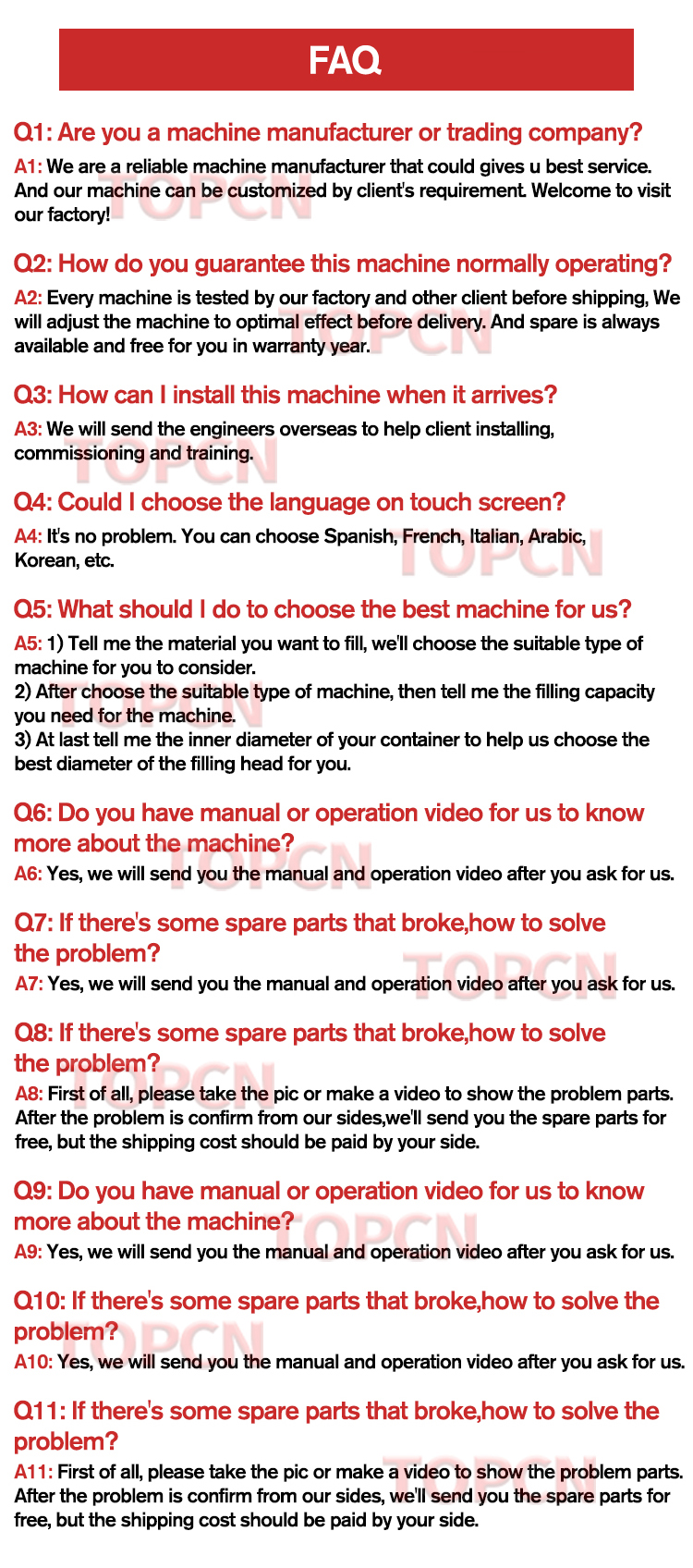

- FAQ
Filling system

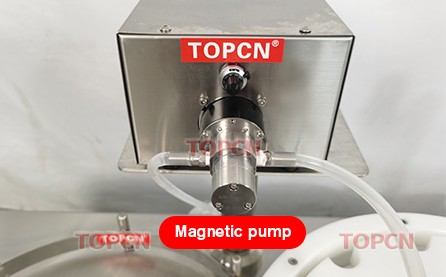

Magnetic pump,peristaltic pump, plunger pump, piston pump, ceramic pump metering filling machine.
simple filling volume adjustment, wide range of application.
High filling accuracy, stable filling.

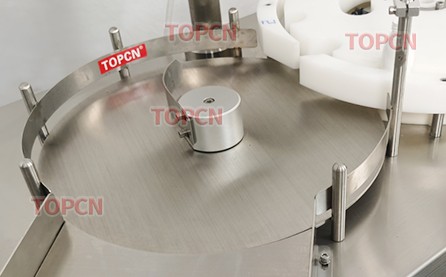

bottle unscrambler, Feeding bottle automaticly to filling and capping, it will save labor of production.
Different volume will be memoried in the PLC, it will be easier to adjust and control the machine for customer

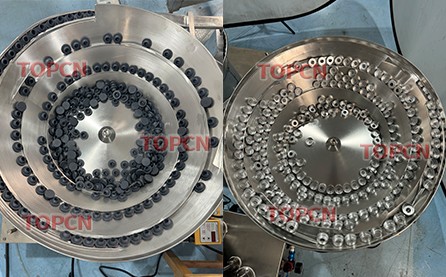

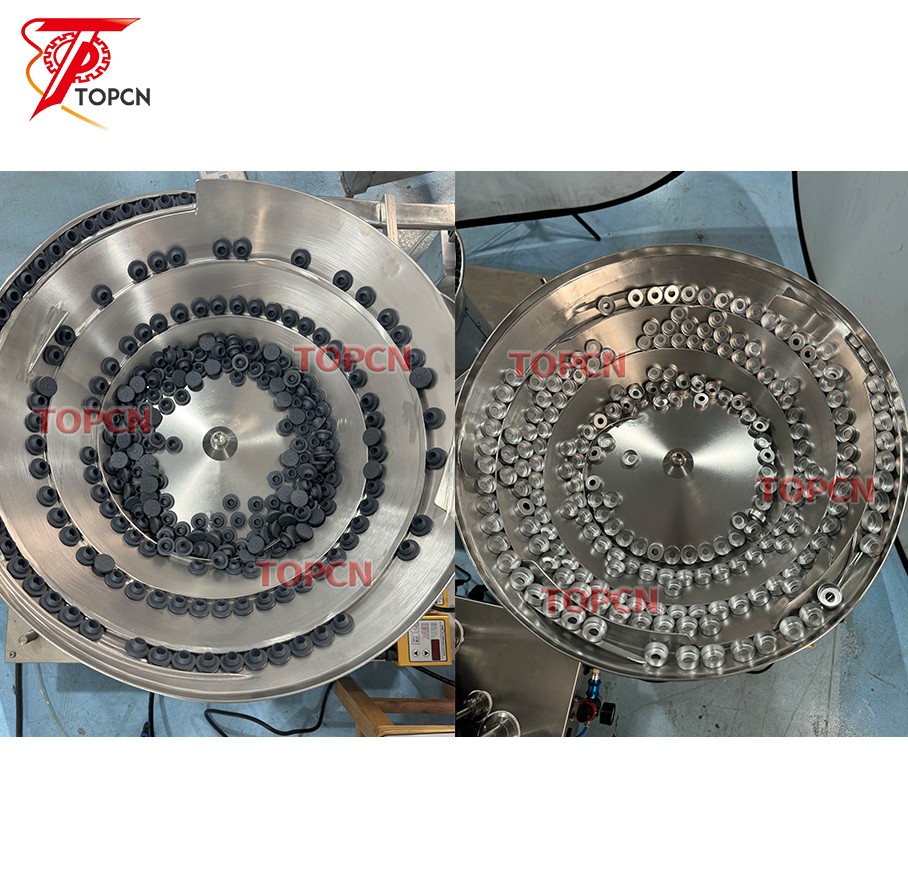

Feeding cap stations
Inner cap and outer cap two automatic feeding stations, the detection switch sends a signal and send the cap on the bottle. Cap vibratory customize as cap size.

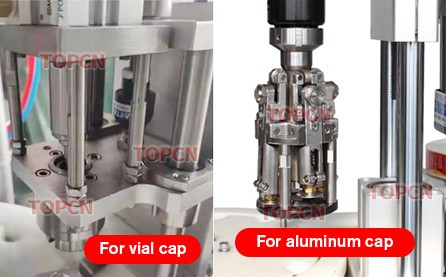

Capping system
Servo motor control, fast and stable.
The torque can be adjusted according to the demand. The overall height is adjustable, applicable to bottles of different specifications, easy to adjust.

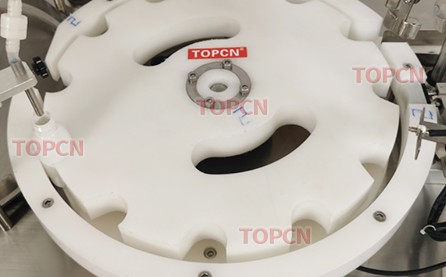

Bottle Star Wheel
Different sizes of bottles can be customize and compatible in one machine by changing the star wheel

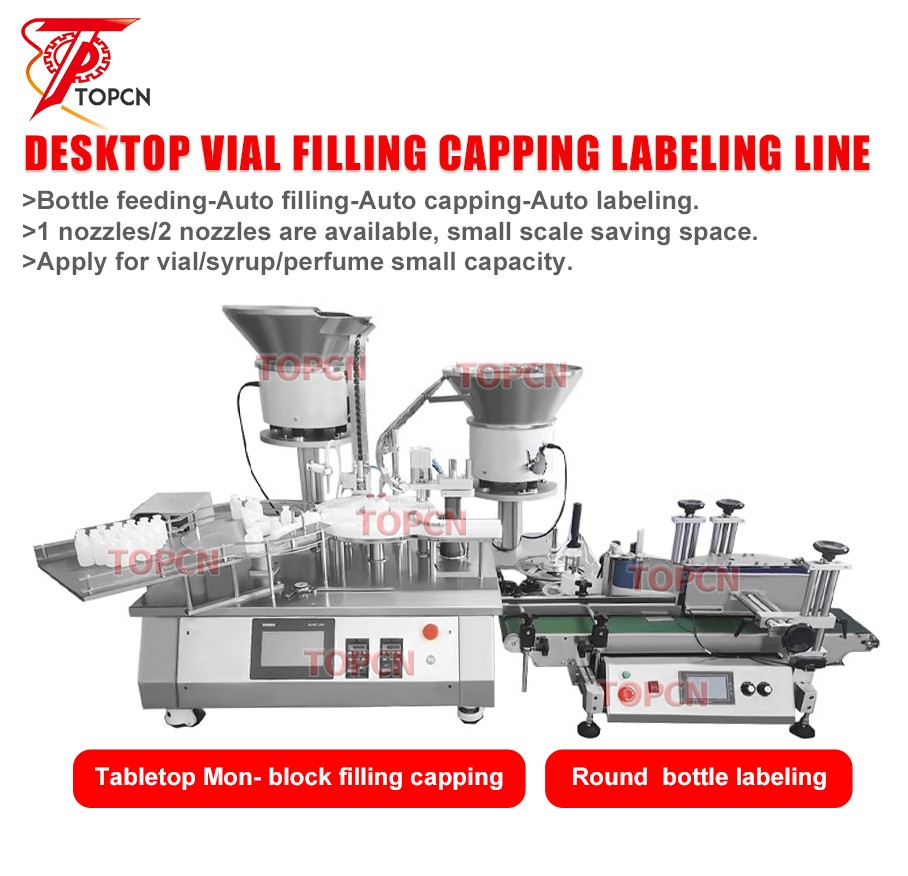

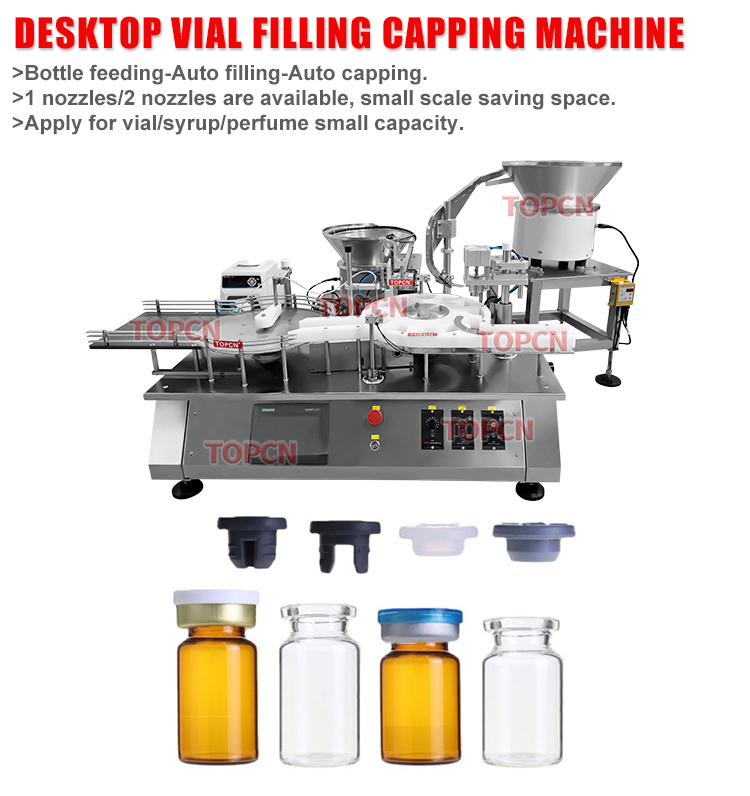

Series small size desktop automatic bottle liquid filling capping machine is a digital magnetic pump and peristaltic pump dosing filling
machine which specially for small vial liquid production.It is widely used for essential oil, liquid,perfume, liquid,juice, ink,water,syrup and other liquid filling.
All the parts are from world famous brands with stable and durable performance.
Filling volume and filling speed can be adjusted easily according to different products. 1 nozzles/2 nozzles are available.
Name | Vail filling capping machine |
Machine power | 110/220V 50-60HZ 1kW |
Filling pump | Magnetic/Peristaltic Pump |
Max flow rate | 2.5L/min |
Recommend Filling Volume | 20-50ml(Customized) |
Working capacity | 20-30bottles/min |
Suitable bottle height | About 45mm-60mm(Customized) |
Suitable bottle diameter | About 22mm(Customized) |
Suitable bottle mouth | About 19.5mm(Customized) |
Suitable cap size | H=10mm*φ=22mm(Customized) |
Machine size | About 1450*850*1050mm(L*W*H) |
Machine weight | About 195kg |
Package size | About 1190*990*1120mm(Main Machine) About 880*500*570mm(Vibratory Sorter) |
Package weight | About 196kg(Main Machine) About 124kg(Vibratory Sorter) |
