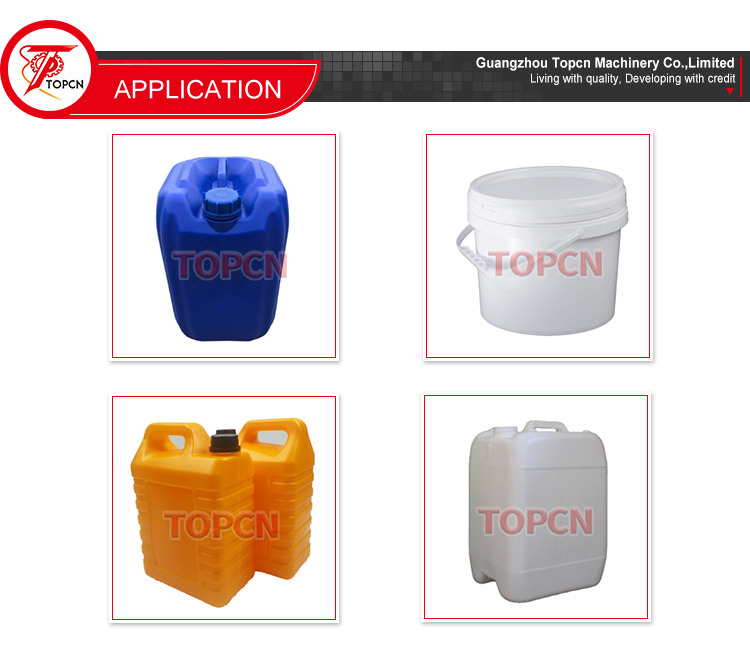

Application:

The machine is widely used in coating, ink, coating, asphalt, glue, lubricant, petrochemical, fine chemical and other industries.




Automatic Linear 5L 20L HDPE Bottle Jerry Can Lubricating Motor Lubricant Lube Oil Weighing Filling Line

Automatic Linear 5L 20L HDPE Bottle Jerry Can Lubricating Motor Lubricant Lube Oil Weighing Filling Line

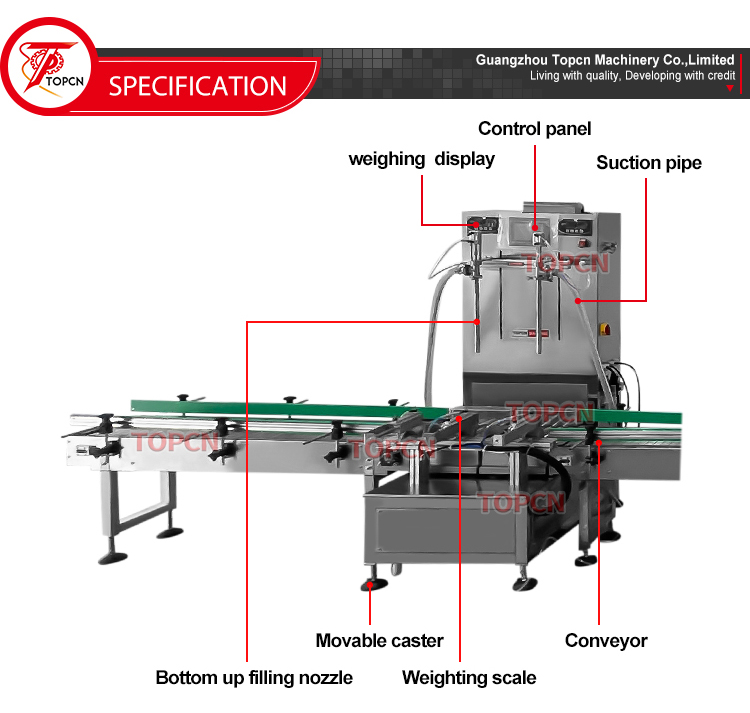

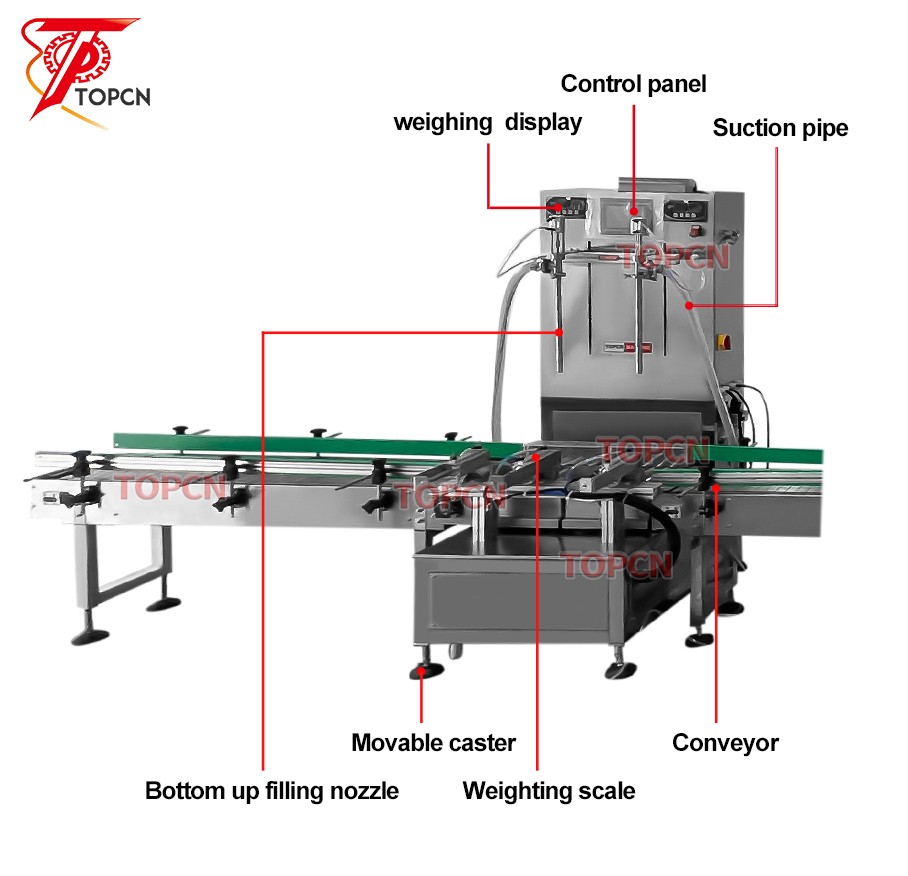

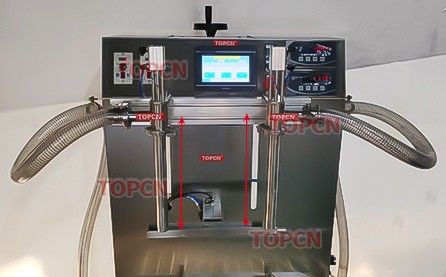

Bottom Up Filling Heads

Stainless steel filling head has anti-drop design, It promise do not waste the material. And diameter of filling head basis on the diameter of customer’s barrel’s mouth.

Automatic Linear 5L 20L HDPE Bottle Jerry Can Lubricating Motor Lubricant Lube Oil Weighing Filling Line

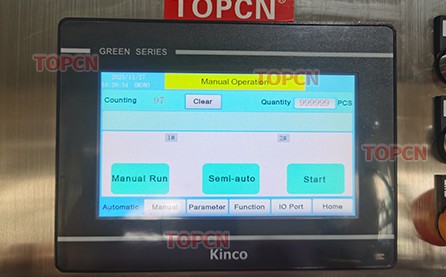

English Control Panel

Equipped with touch screen control panel,this makes working parameter visual and more convenient to operate. The operation language can be customized into different kinds of language according to your need,please contact us if you need this.

Automatic Linear 5L 20L HDPE Bottle Jerry Can Lubricating Motor Lubricant Lube Oil Weighing Filling Line

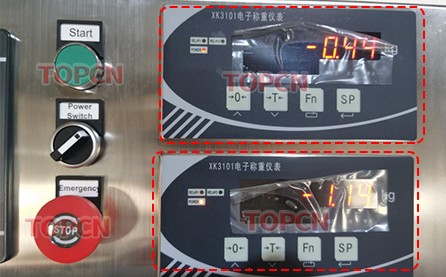

Weighting dosing

Weighting dosing with good precision.

Weighting dosing with large scale volume adjustable and compatible.

Can fill from 1 litres to 10 litres.

1 litres to 25 litres customized.

Automatic Linear 5L 20L HDPE Bottle Jerry Can Lubricating Motor Lubricant Lube Oil Weighing Filling Line

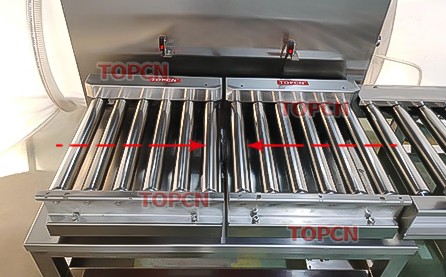

Each filling head has a weighing and feedback system that can fill each head. Filling for filling setup, adjustment and monitoring.

Automatic Linear 5L 20L HDPE Bottle Jerry Can Lubricating Motor Lubricant Lube Oil Weighing Filling Line

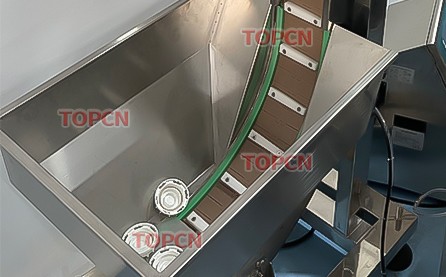

Cap vibrator sorter, hopper lifting elevator available.

Linear type,can be adjusted for different sizes of bottles easily.

Automatic Linear 5L 20L HDPE Bottle Jerry Can Lubricating Motor Lubricant Lube Oil Weighing Filling Line

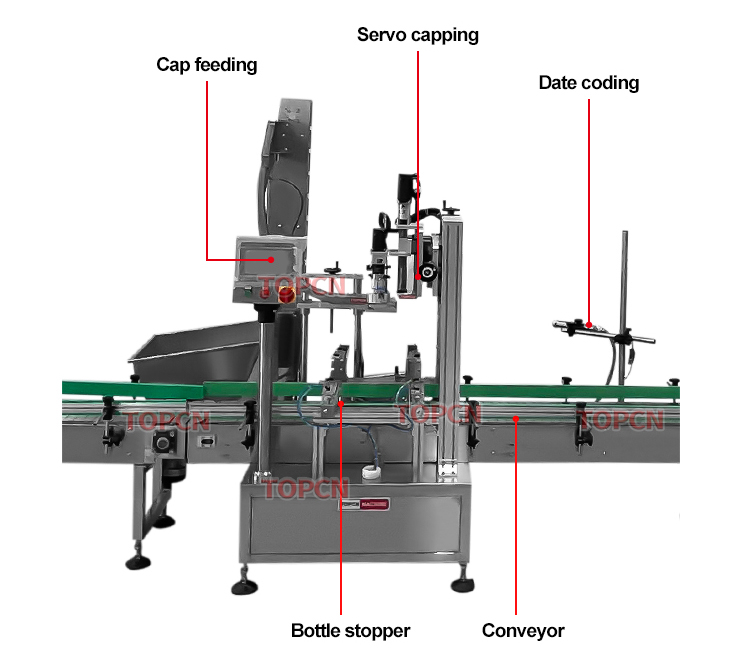

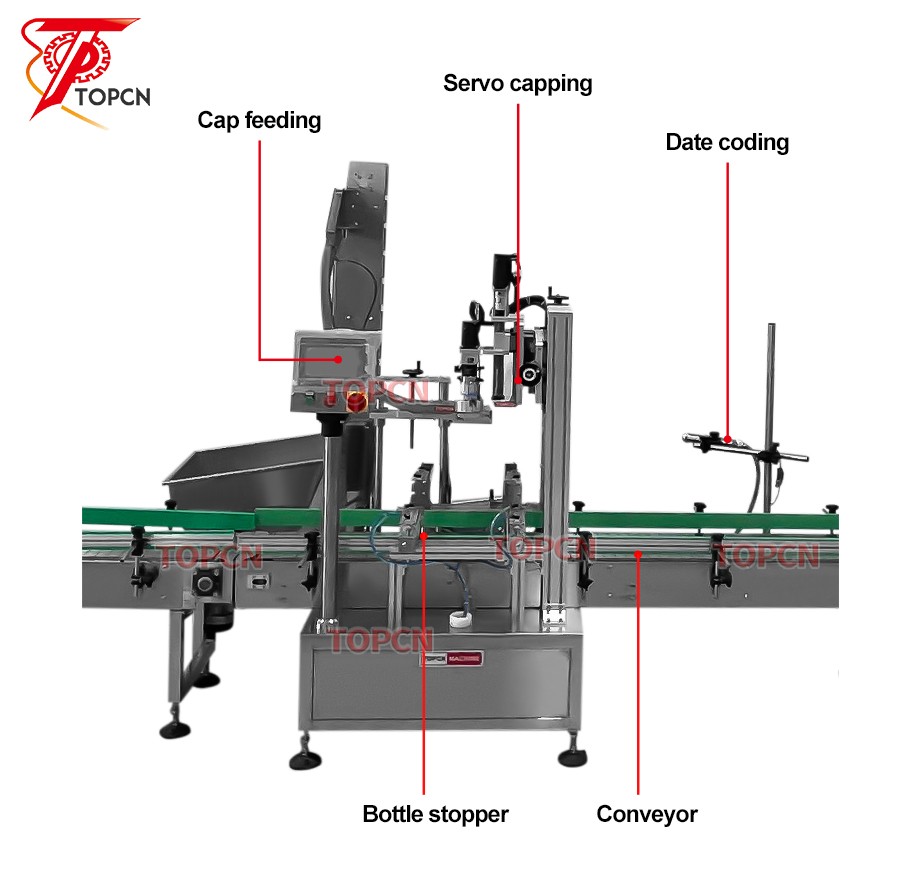

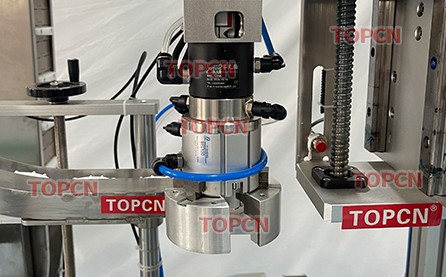

Automatic capping machine is suitable for plastic bottle jerry can with screw caps,with automatic placing cap full automatic.

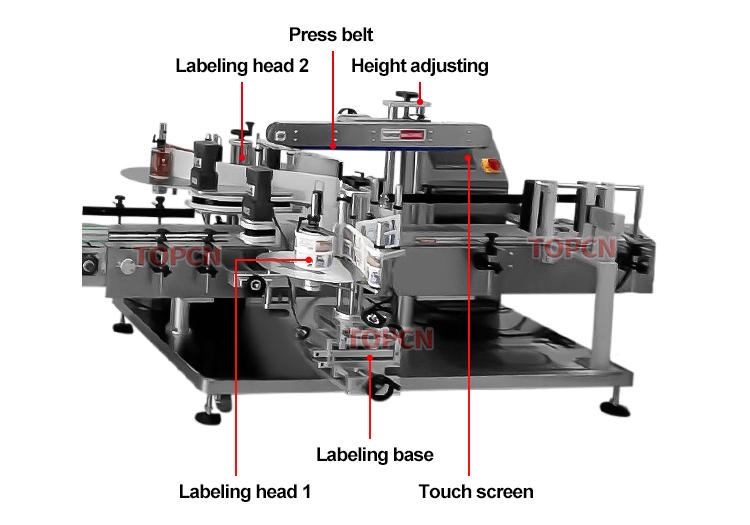

Automatic Linear 5L 20L HDPE Bottle Jerry Can Lubricating Motor Lubricant Lube Oil Weighing Filling Line

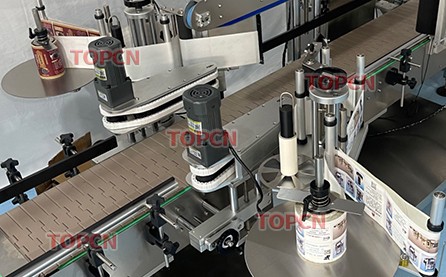

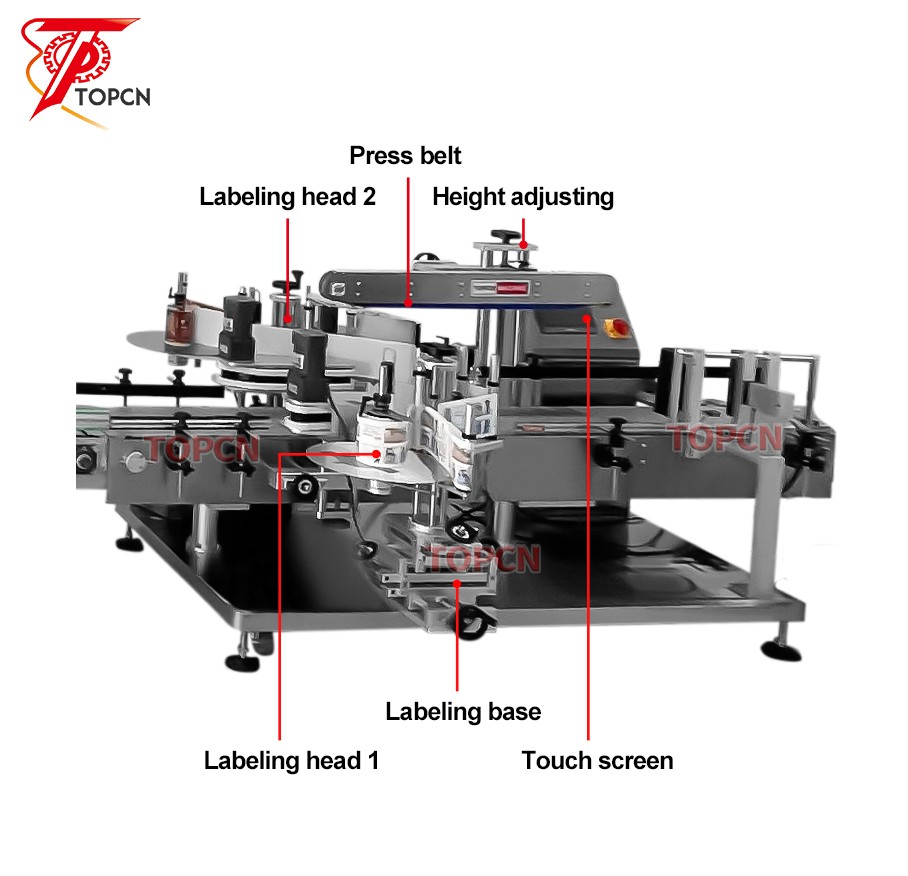

Designed for double sides labeling on larger flat bottle,one side of labeling structure can work separately,so it is also suitable for single side on the flat bottles.

Automatic Linear 5L 20L HDPE Bottle Jerry Can Lubricating Motor Lubricant Lube Oil Weighing Filling Line

Automatic Linear 5L 20L HDPE Bottle Jerry Can Lubricating Motor Lubricant Lube Oil Weighing Filling Line

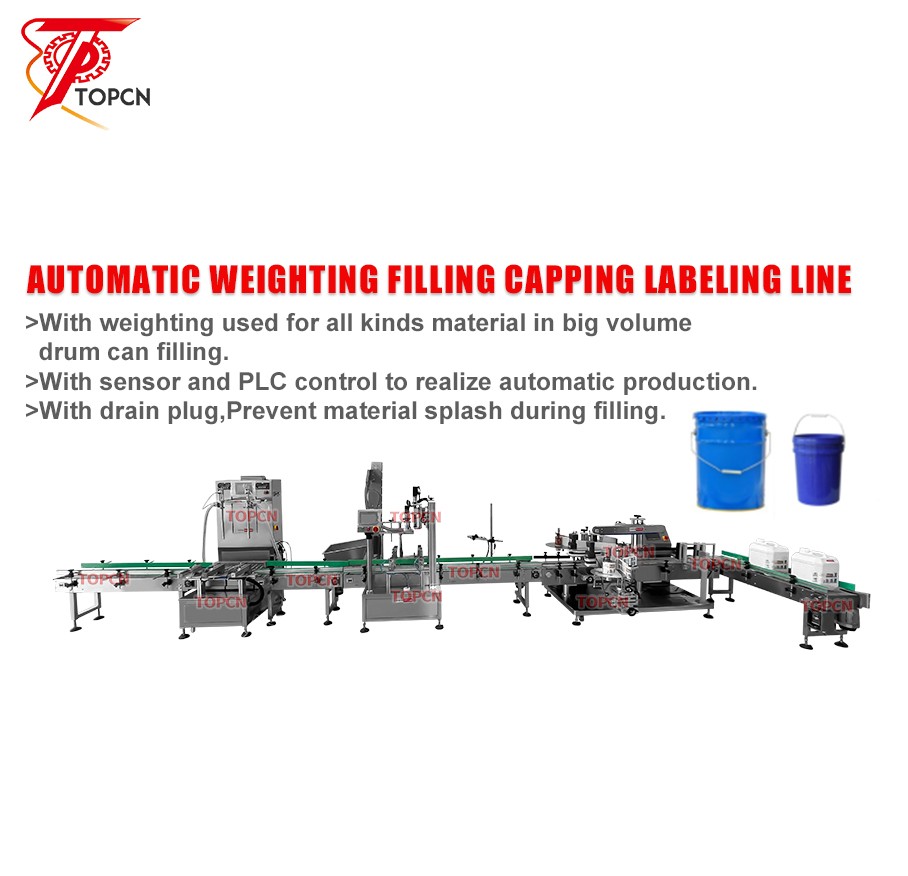

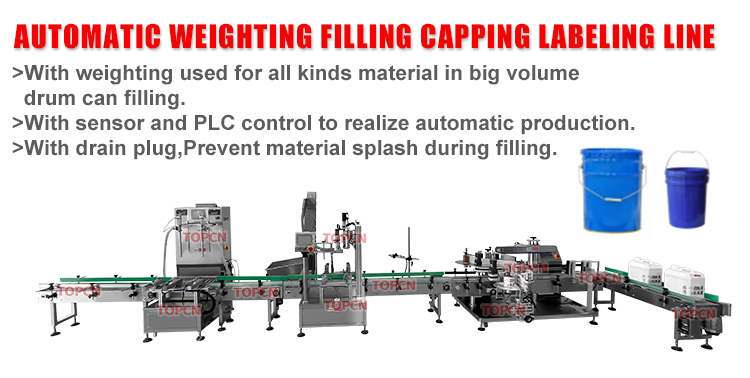

Series automatic weighing filling machines are the PLC control system machines. It,s specially designed for bottles/jars/jerry cans/buckets/drums filling of different products like liquid fertilizer, bleach, engine cleansers, floor cleanser, acid alkaline liquid,lubricant oil,chemical liquid,milk,condensed soup,juice,thick paste and viscosity liquid etc.

Packaging type

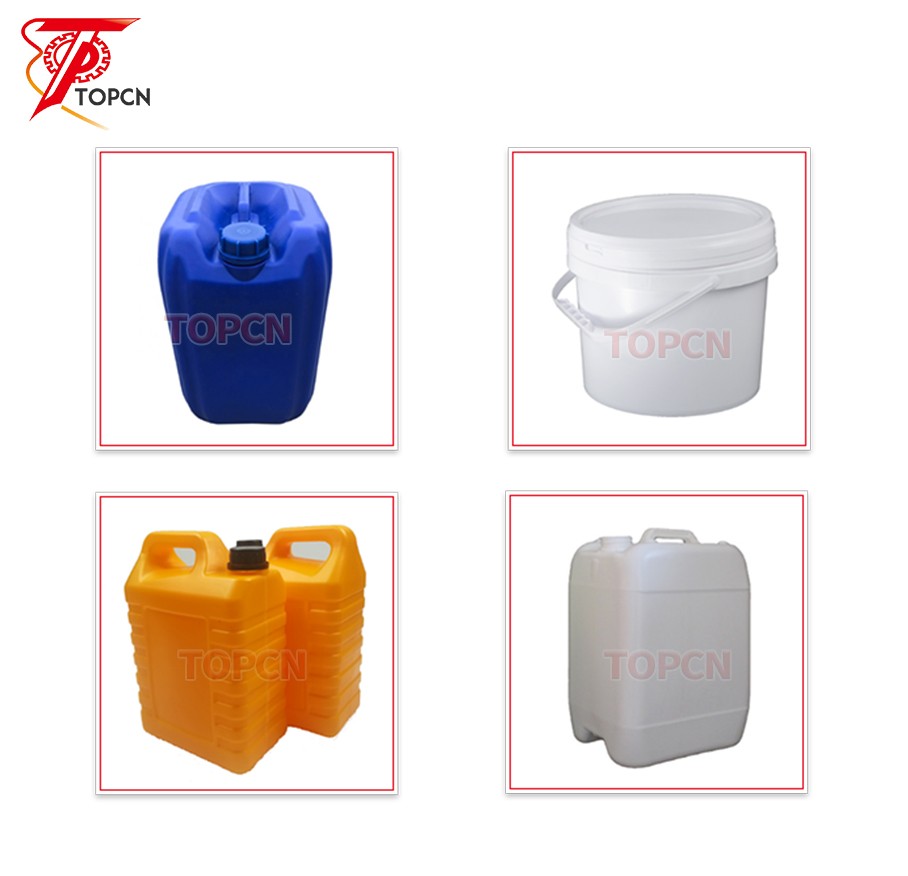

bottles/jars/jerry cans/buckets/drums

Package material

Plastic

Filling products

liquid fertilizer, bleach, engine cleansers, floor cleanser, acid alkaline liquid,lubricant oil,chemical liquid,milk,condensed soup,juice,thick paste and viscosity liquid

Application

It is applied in fields such as food, beverages, chemicals and daily chemicals.

degree of automation

Automatic

N.W(kg)


Filling precision(%)

±1%

Voltage

380V 220V other voltages can be customized

Type of power

Electric & Pump

L*W*高(cm*cm*cm)


Core components

Control system

Filling nozzles

customizable (2.4, 6, 8, etc.)

Filling volume (xxml-xxml)

5-30L

Speed(BPH)

100-300BPH

Powder(KW)

3Kw

Item NO

TAFM-WF-2

Automatic Linear 5L 20L HDPE Bottle Jerry Can Lubricating Motor Lubricant Lube Oil Weighing Filling Line

The label applicator performs the application of labels onto the front or front & back of large industrial buckets, pails, jugs,tubs, drums, barrels and cartons in all industries such as food, chemicals, lubricating oils, paints, and varnishes. This labeling machine may be simply integrated into an existing production line.

Machine modelTPLM-R-BD(Big Drum)

Voltage

220V/110V 50-60Hz

Power

About 2500W

Labeling Speed

About 10-60 bottles/min

(depending on bottle and label size)

Suitable Product Size

About 150-310mm(H)*150-250(W)

Label Size

15-300mm(W)*15-200mm(H)

Label Roll Inner Diameter

Φ75mm

Label Roll Outer Diameter

Φ350mm

Machine Size

About 3000*1400*1750mm

Machine Weight

About 320kg

Package Size

About 2060*1110*1410mm

Package Weight

About 393kg


Automatic Linear 5L 20L HDPE Bottle Jerry Can Lubricating Motor Lubricant Lube Oil Weighing Filling Line

Product Name

Jerry can capping machine

Style

Automatic

Brand

Maiton

Voltage

220V

Power source

electricity and compressed air

Air pressure

0.6-0.8Mpa

Bottle height

100mm-450mm

Cap diameter

28mm-50mm

Machine dimensions

2000*1000*1800CM

Machine weight

300KG
