Automatic Tomato Ketchup Jam Jar Paste Chili Sauce Bottle Filler Tabletop Filling Capping and Labeling Machine Production Line

  • Application
  • Description
  • Products Parameters
  • Video
  • Package&Shipping

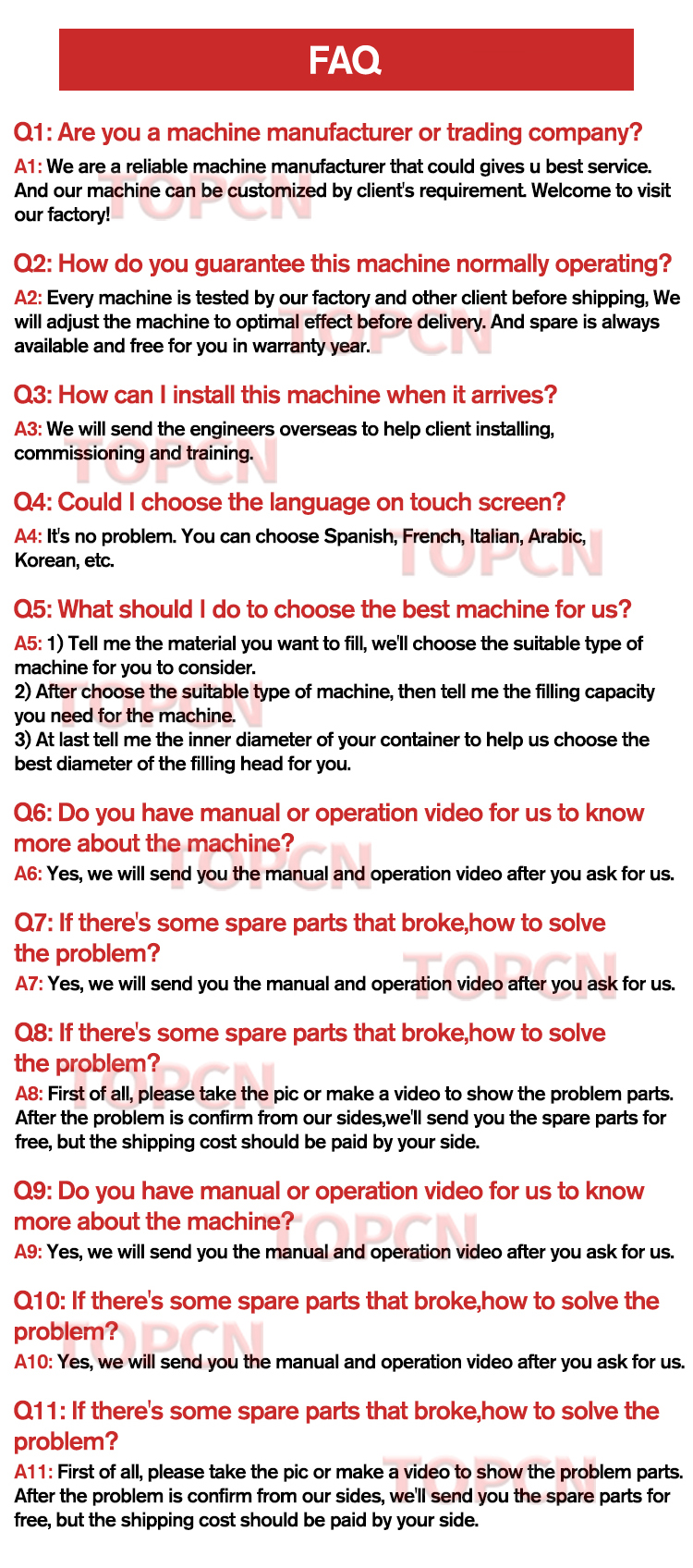

  • FAQ

Automatic Tomato Ketchup Jam Jar Paste Chili Sauce Bottle Filler Tabletop Filling Capping and Labeling Machine Production Line

Packaging type

bottles/jars

Package material

Plastic/Glass

Filling products

filling thick liquid or
paste like pepper sauce,tomato paste,curry paste,jam.etc

Application

It is applied in food and Daily chemical products industry

degree of automation

Automatic

N.W(kg)

150

Filling precision(%)

±1%

Voltage

220V other voltages can be customized

Type of power

Electric & pump

L*W*Hcm*cm*cm

156*81*115cm

Core components

pump

Filling nozzles

customizable (2.4, 6, etc.)

Filling volume xxml-xxml

30-5000ml

SpeedBPH

30-40BPM

PowderKW

2Kw

Item NO

TAFM-1RP

Automatic Tomato Ketchup Jam Jar Paste Chili Sauce Bottle Filler Tabletop Filling Capping and Labeling Machine Production Line

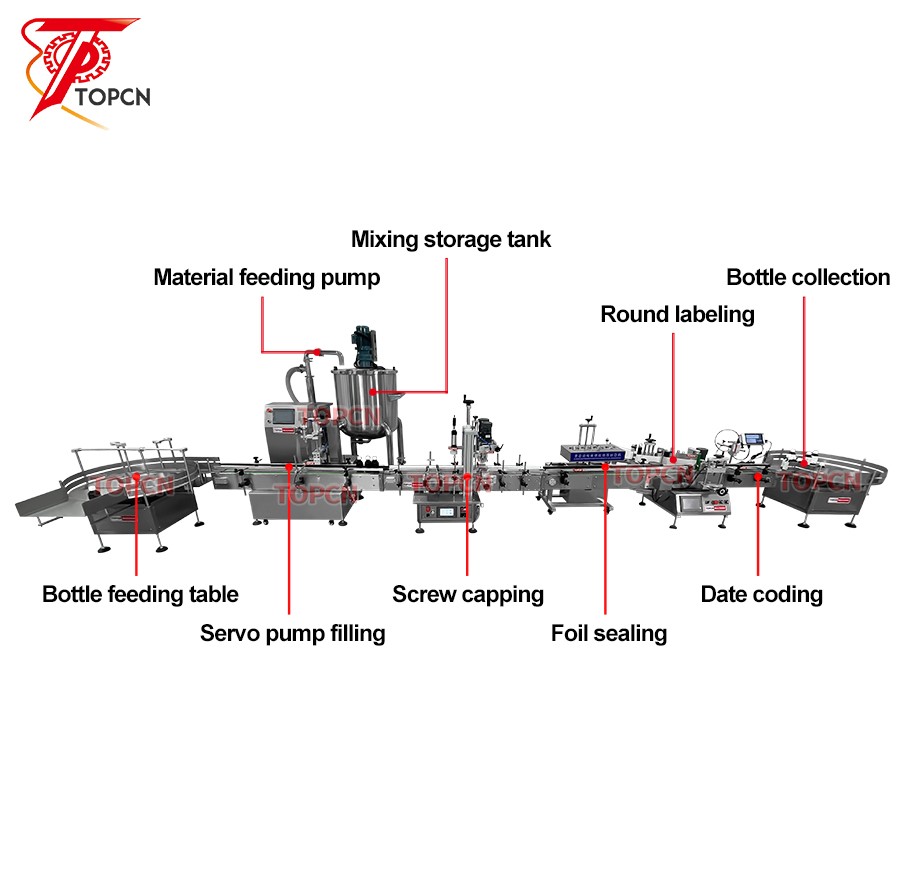

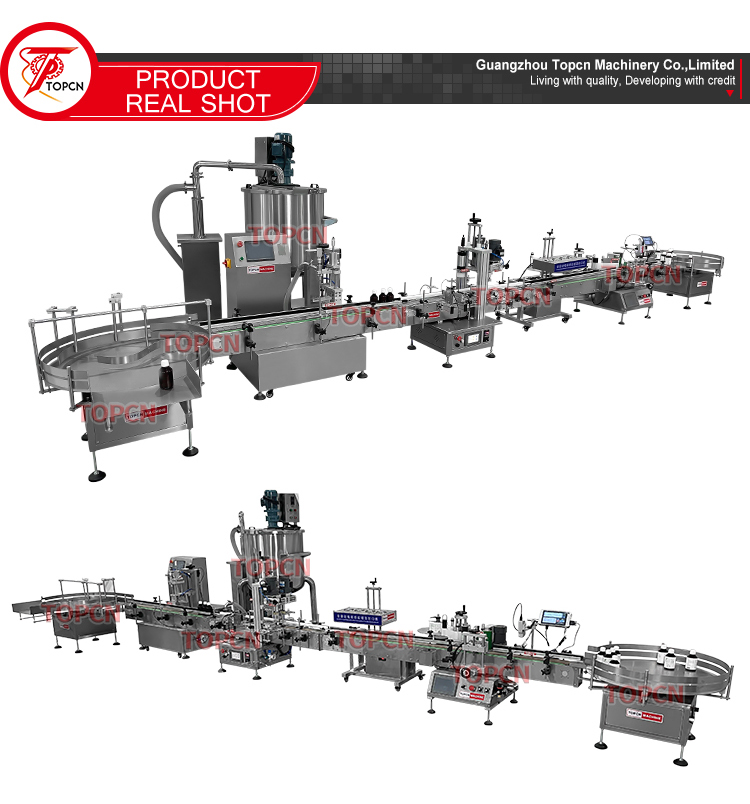

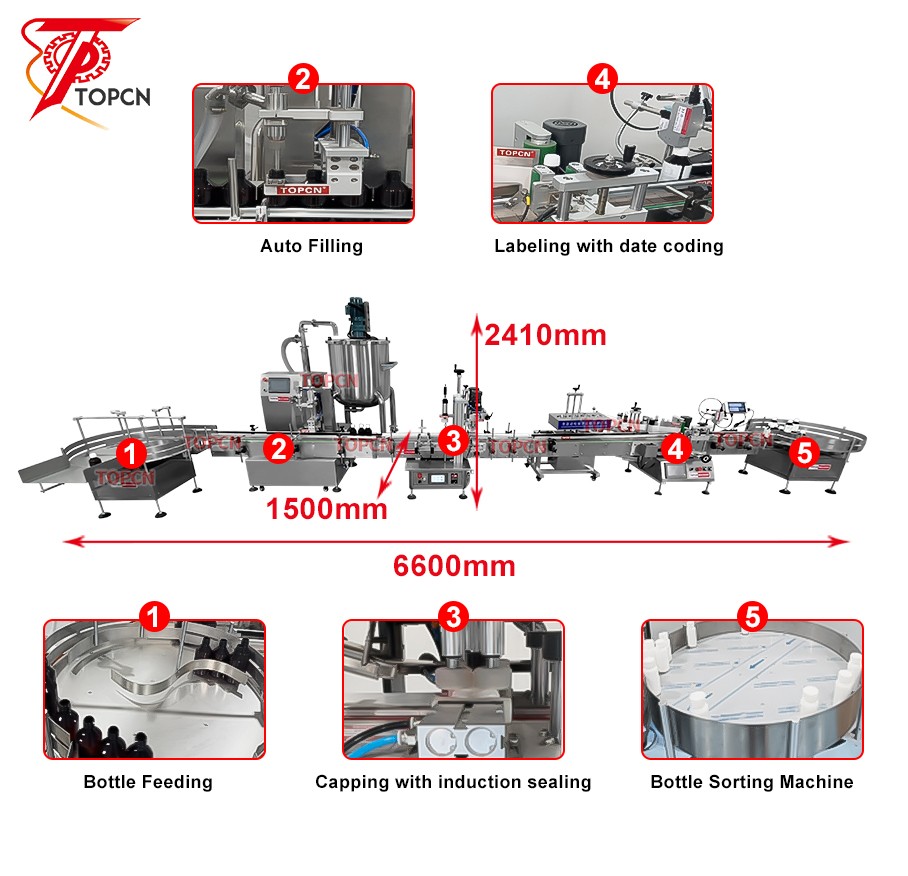

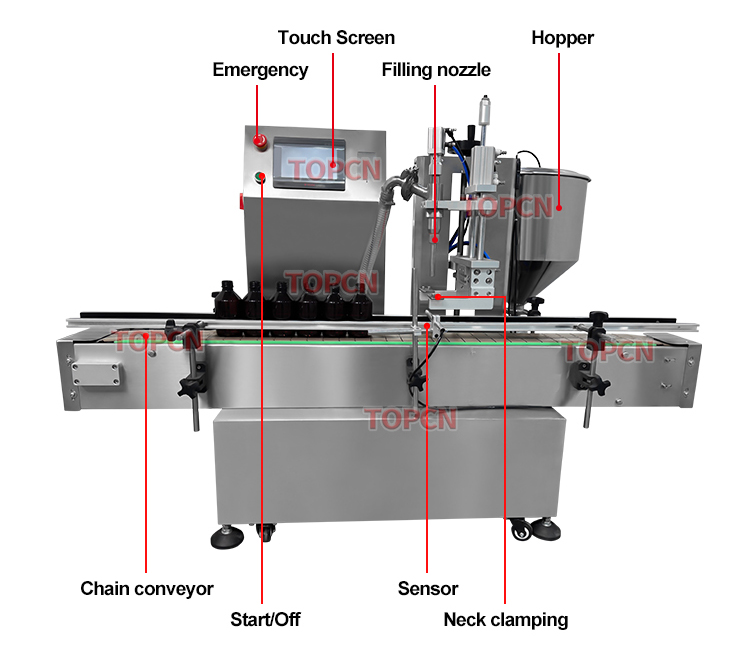

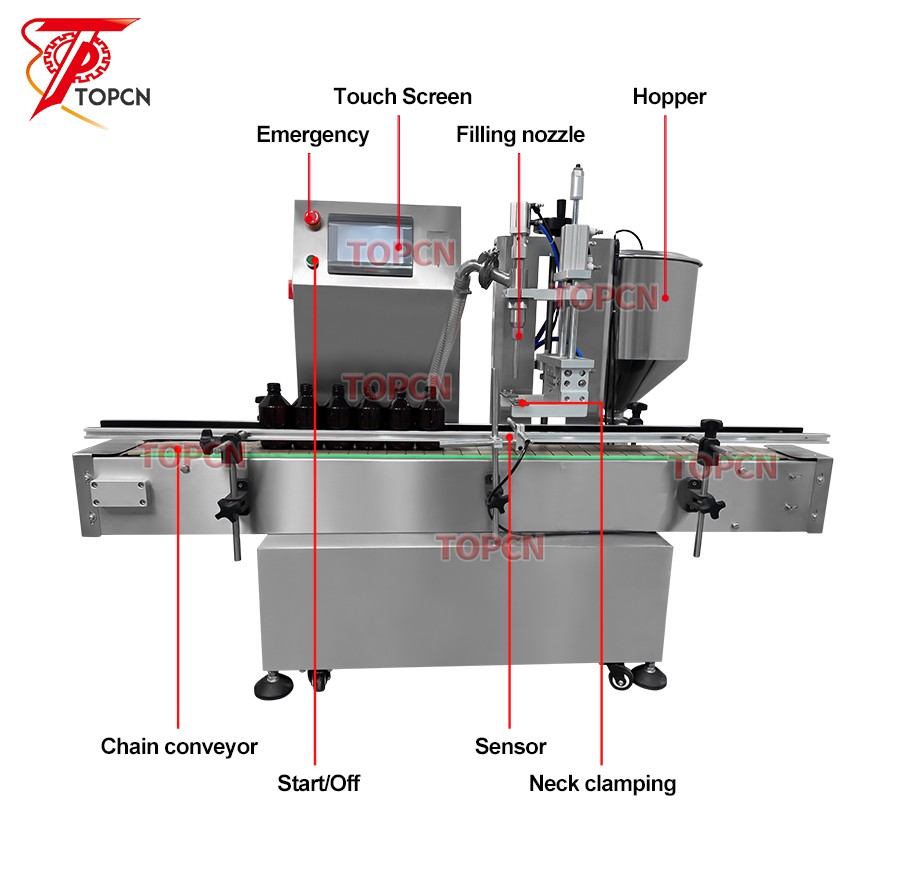

Machine Details

This filling line adopts a Gear pump filling head, which can control the filling capacity very accurately and is stable and not easy to leak. The thin or thick materials are not a problem for it. Suitable for water, fruit juice, cream, jam, lotion and other liquids with or particles viscosity products. This line is widely used in food, beverage, cosmetic and daily chemical small capacity automatic production.

Automatic Tomato Ketchup Jam Jar Paste Chili Sauce Bottle Filler Tabletop Filling Capping and Labeling Machine Production Line

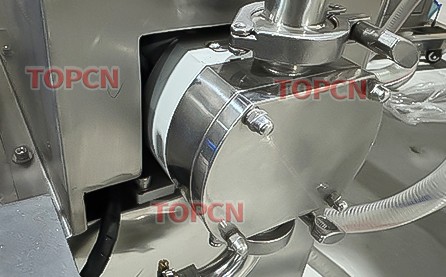

Lobe Pump

High quality rotor pump,this filling machine is a filling equipment composed of a servo motor and a cam rotor pump. The pump head is a metering pump with a positive displacement structure. The displacement per revolution is a fixed value. The servo motor can accurately control the speed for metering and filling.

Automatic Tomato Ketchup Jam Jar Paste Chili Sauce Bottle Filler Tabletop Filling Capping and Labeling Machine Production Line

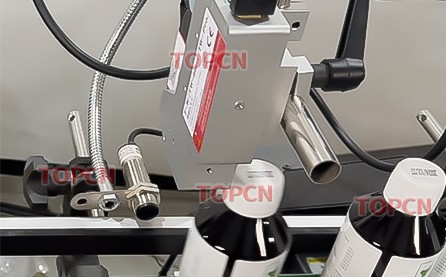

Top  quick-drying ink jet date coding

Supporting black, red, blue, green yellow, orange, white  on bottle side or cap top

Automatic Tomato Ketchup Jam Jar Paste Chili Sauce Bottle Filler Tabletop Filling Capping and Labeling Machine Production Line

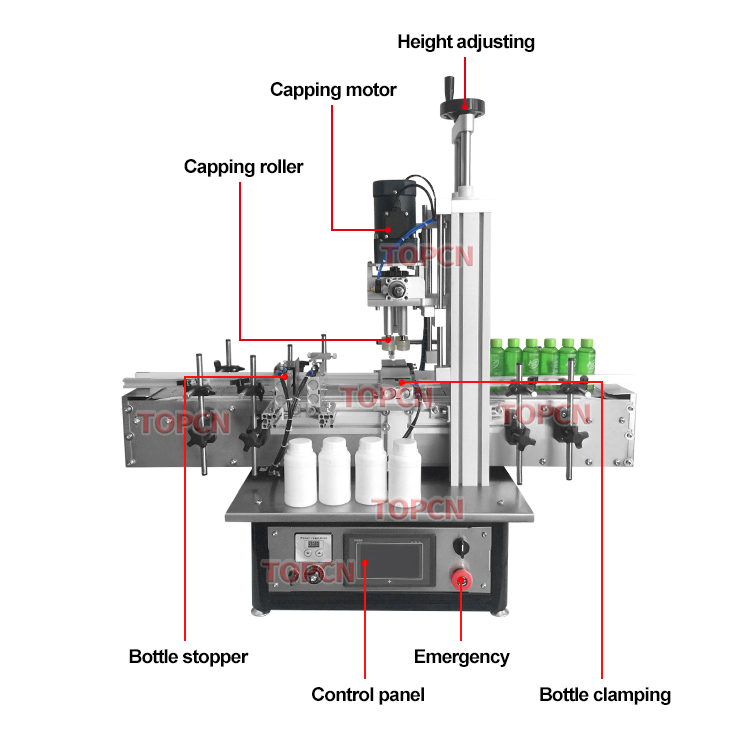

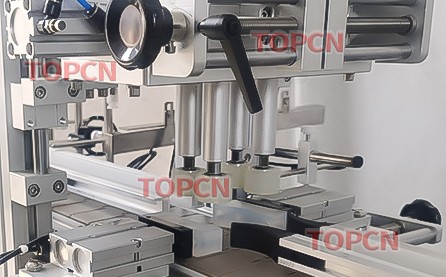

The capping structure is consist of 4 rubber wheels,this kind of capping method makes it is suitable for various bottles like trigger pump bottles,dropper bottles,spray bottles,widen the application range.

Automatic Tomato Ketchup Jam Jar Paste Chili Sauce Bottle Filler Tabletop Filling Capping and Labeling Machine Production Line


Automatic Tomato Ketchup Jam Jar Paste Chili Sauce Bottle Filler Tabletop Filling Capping and Labeling Machine Production Line

Name

Desktop Automatic Gear Pump Filling Machine

TAFM-1RP(Desktop)

Voltage

220V/110V 50-60HZ

Rated power

Conveyor servo power:750W                                                  Pump servo motor power:750W

Whole machine power:2Kw

Pump volume

60L

Filling range

30-5000ml

Working speed

20-30 bottles/min

Program control

PLC+Touch screen

Maximum suction distance

1.5M

Repetitive error smaller than

1% (depending on the density of product)

Overall dimension

156*81*115cm(L×W×H)

Package size

161*86*130cm(L×W×H)

G.W

194Kg

Automatic Tomato Ketchup Jam Jar Paste Chili Sauce Bottle Filler Tabletop Filling Capping and Labeling Machine Production Line

Product Name

Desktop Automatic Capping Machine

Cap Feeder(custom made as bottle can cap)

Bottle height

30-300mm

Cap Diameter

Standard:20mm-68mm; Customize:15mm-70mm;20mm-115mm

Bottle Size

Bottle height:80mm-300mm;
Can be customized 15mm-100mm; (other sizes can be customized)

Working speed

20-30 bottles / minute (depending on bottle and cap size and shape)

Dimension

150*70*116

N.W

95Kg

Packing size

155*75*121cm

G.W

1355KG(Machine)

Note

If your caps is used by pressing instead of screwing, please contact us and we will send the suitable machine for you.

Automatic Tomato Ketchup Jam Jar Paste Chili Sauce Bottle Filler Tabletop Filling Capping and Labeling Machine Production Line

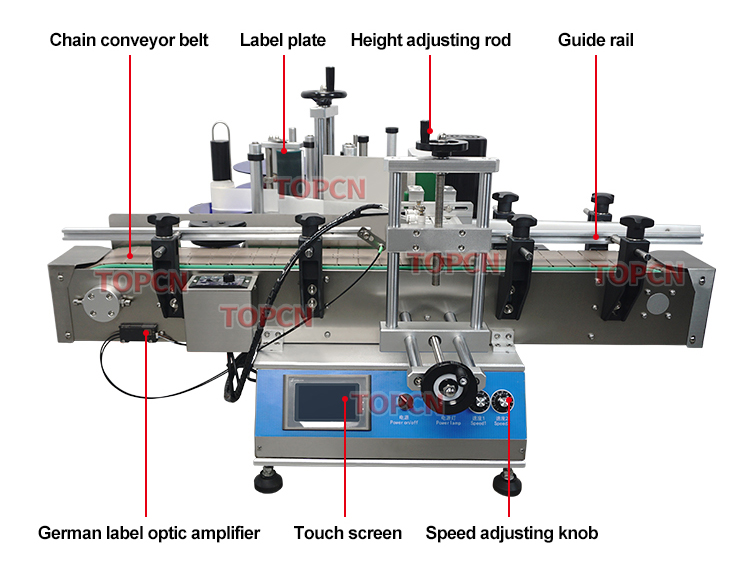

Name

Desktop Automatic Round Bottle Labeling Machine

Voltage

AC 110V or AC 220V 50/60Hz 100w

Speed

20-100pcs/min

Bottle Height

25mm-380mm

Lable size

Length:25-350mm; Width:25-150mm

Precision

±1mm(depends on bottle shape)

Label roll

φ76.2-φ350mm

Objects

Bottles, jars, cans, boxes, cartons, juice bottles, beer wine bottles, shampoo detergent bottles, etc.

N.W.

120Kg.

G.W

148Kg

Dimension

150×85×80cm

Package size

146*91*95cm

Function

This machine can stick lables on various objects, Bottles, jars, cans, boxes, cartons, beer bottles, wine bottles, juice bottles,
shampoo detergent bottles, hardwares, etc.

Automatic Tomato Ketchup Jam Jar Paste Chili Sauce Bottle Filler Tabletop Filling Capping and Labeling Machine Production Line

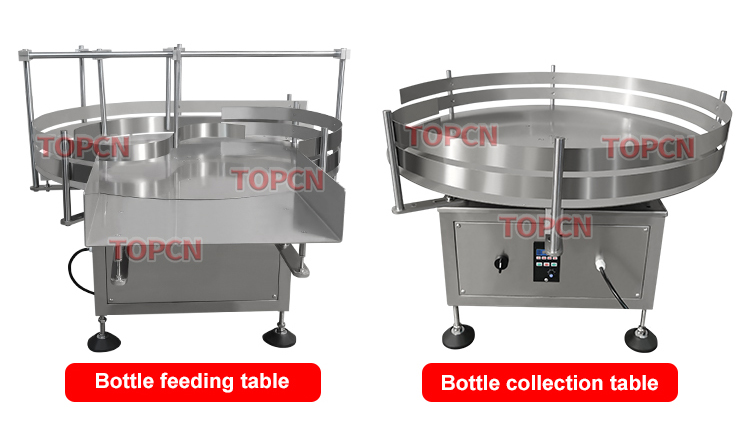

Bottle feeding machine turning and automatic bottle feeding of the front process of the filling machine.collection table is used to collect bottle at the end of the filling line. Widely used in food, medicine, daily chemical, hardware, plastic, cosmetics and other industries.

Model No.

TP-LP-800Z


Turntable Diameter

800mm


Suitable Bottle Diameter

30-80mm


Suitable Bottle Height

≤2500mm


Working Speed

40-60 bottles/min(depends on bottle size)


Motor Power

120W


Power Supply

220V/50-60HZ


Machine size

108*86*68cm


Package size

116*93*86


Net weight/Gross weight

About 63kg/103kg


Model No.

TP-SP-800Z


Turntable Diameter

800mm


Suitable Bottle Diameter

30-80mm


Suitable Bottle Height

≤2500mm


Working Speed

40-60 bottles/min(depends on bottle size)


Motor Power

120W


Power Supply

220V/50-60HZ


Machine size

95*86*49cm


Package size

100*94*67cm


Net weight/Gross weight

About 53kg/87kg
