Fully Automatic Glass Bottle Ketchup Jam Peanut Butter Chili Sauce Filling Machine Line

  • Application
  • Description
  • Products Parameters
  • Video
  • Package&Shipping
  • FAQ

Fully Automatic Glass Bottle Ketchup Jam Peanut Butter Chili Sauce Filling Machine Line

Fully Automatic Glass Bottle Ketchup Jam Peanut Butter Chili Sauce Filling Machine Line

Fully Automatic Glass Bottle Ketchup Jam Peanut Butter Chili Sauce Filling Machine Line

Fully Automatic Glass Bottle Ketchup Jam Peanut Butter Chili Sauce Filling Machine Line

Fully Automatic Glass Bottle Ketchup Jam Peanut Butter Chili Sauce Filling Machine Line

Fully Automatic Glass Bottle Ketchup Jam Peanut Butter Chili Sauce Filling Machine Line

Fully Automatic Glass Bottle Ketchup Jam Peanut Butter Chili Sauce Filling Machine Line

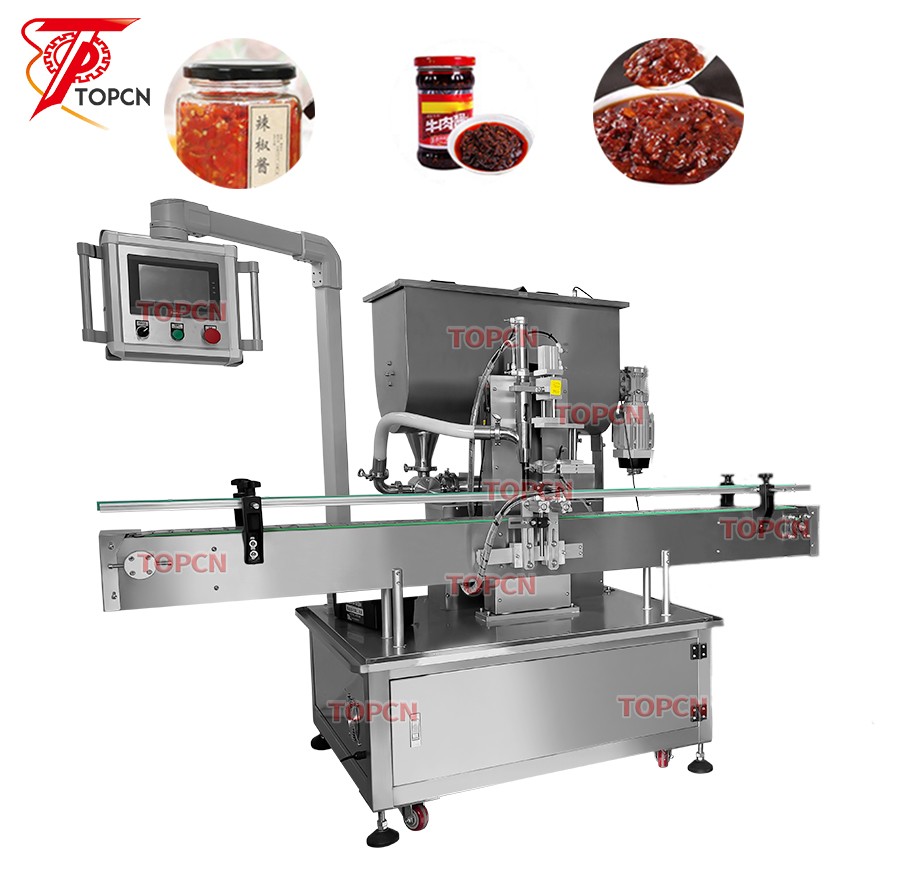

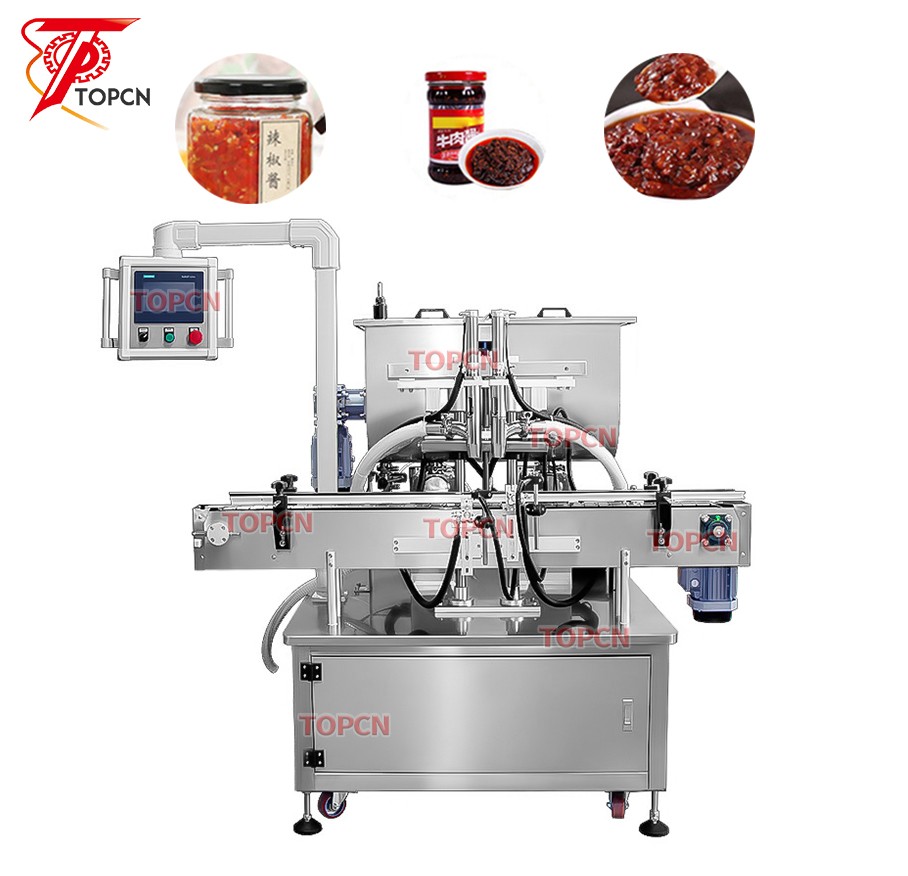

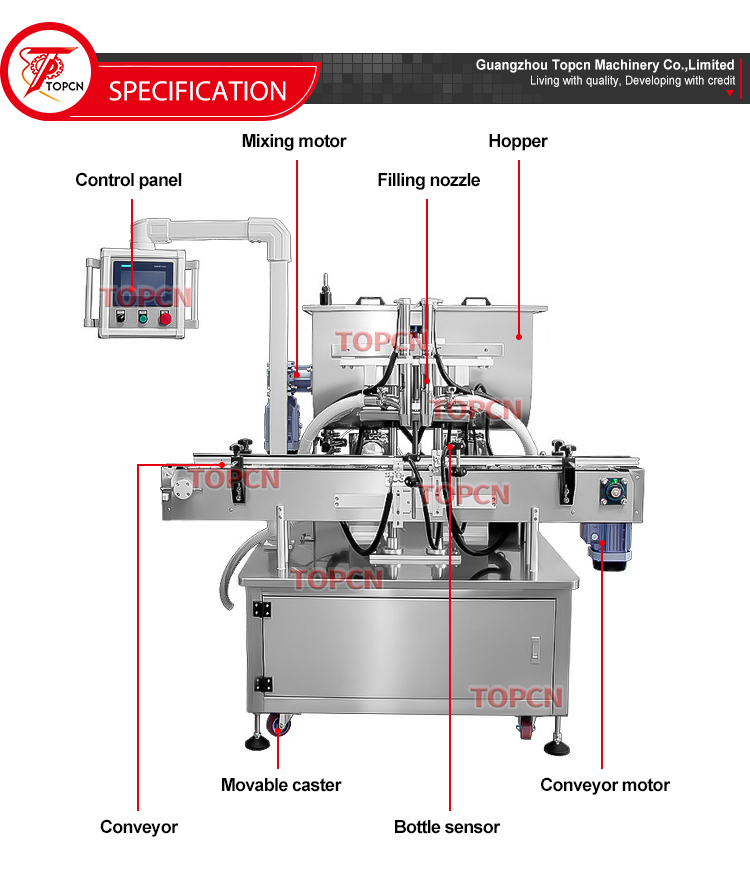

Item NO.

TAFM-PM

Filling products

Chili,Douban,sesame paste honey,sauce and other granular material

Packaging type

Bottles/Jars

Package material

Plastic/Glass

Application

It is applied in food industry

Voltage

220V or other voltages can be customized

Powder(KW)

2.5Kw

Filling precision(%)

±1%

Type of power

Electric & pump

Filling nozzles

customizable (2.4, 6, etc.)

Filling volume(xxml-xxml)

10-150g 25-250g

Core components

pump

Speed(BPH)

1 head:15-20bpm

2 head :20-25bpm

N.W(kg)

150KG

L*W*H(cm*cm*cm)

200*100*160cm

Fully Automatic Glass Bottle Ketchup Jam Peanut Butter Chili Sauce Filling Machine Line

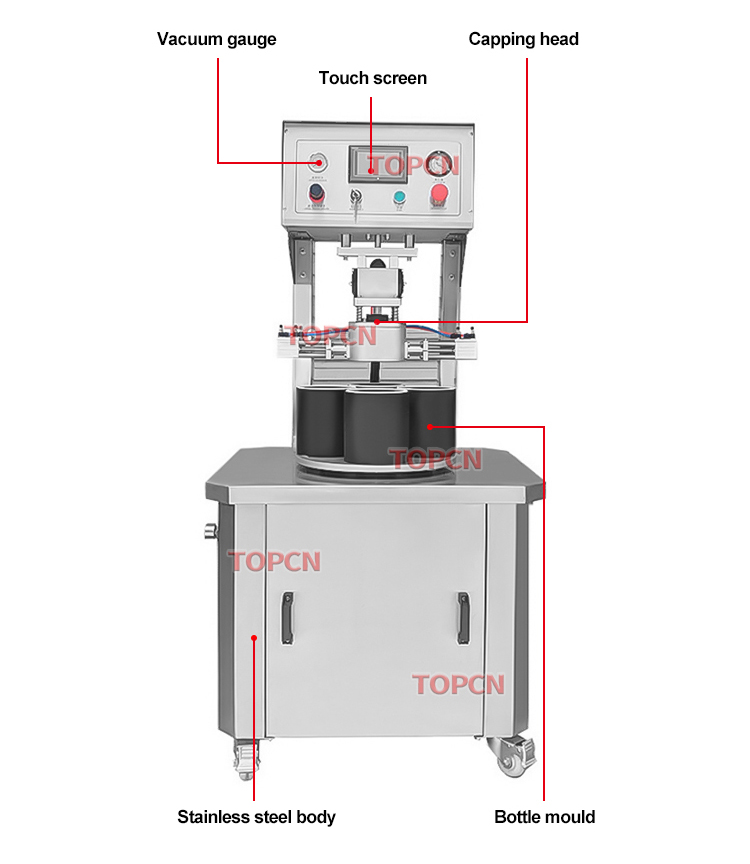

Model

TPSC-V

Suitable bottle cap diameter

30-85mm

Production capacity

15~20 bottles

Suitable bottle diameter

30-80mm/80-150mm

Suitable bottle height

50-180mm

Screw Torque

5-20N.M

Dimensions

700mm*750mm*1650mm

Weight

190k

Fully Automatic Glass Bottle Ketchup Jam Peanut Butter Chili Sauce Filling Machine Line


Labeling Precision

±1mm (excluding product and label error);

Power Supply

AC220V 50/60Hz 700W

Conveyor Speed

5~25 meters/minute;

Model No

TPLM-R

Labeling Speed

10~35pcs/min(Related to product, label size);

Sticker Out-Come Speed

Stepping Motor: 5~19 meters/minute

Servo Motor: 5~25 meters/minute

Application Bottle Size

External diameter: Φ25-100mm;

Height: 25mm~300mm;

Applicable label size

Label Length: 20mm~290mm;

Label Width(body paper width): 20mm~120mm; 180mm (option)

Inner dia.of paper roll

Φ76mm

External dia.of paper roll

Max. Φ300mm

Size(L*W*H)

2000mm×1150mm×1600mm

Weight

185kgs

Attention:Non-standard Labeling System
All final quotation based on your exact products details and requirements.
