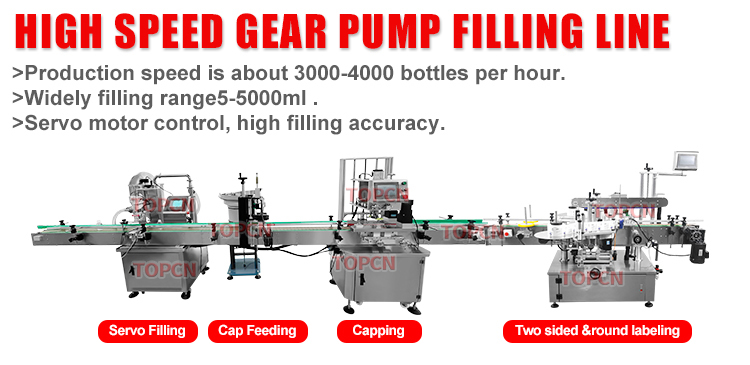

Laundry Detergent Dish Soap Dish washing Liquid Paste Gel Bottles Gear Pump Filling Capping Laeling Machine Production Line
- Application
- Description
- Products Parameters
- Video
- Package&Shipping
- FAQ

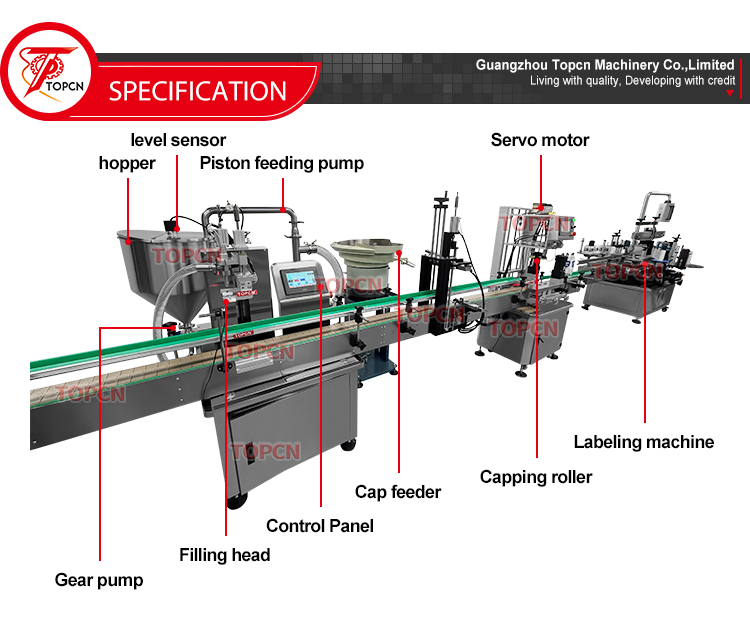

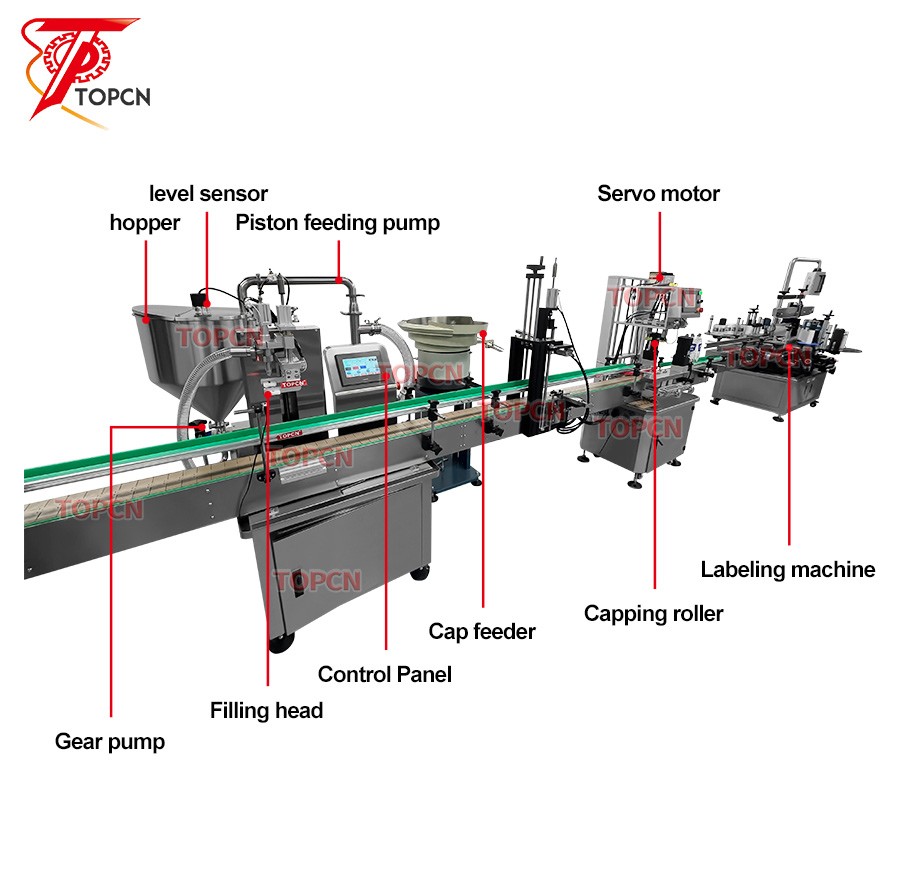

Automatic gear pump filling machine is composed of PLC controller,servo motor,rotor pump, hopper, filling nozzle,foot switch and an elbow. Products contact part use stainless steel 304 material.It is very suitable cream paste products with high viscosity. Also can be used to filling liquid products.
Advantages
1. Wide filling range: 5ml-5000ml depends on different models and filling time
2. Fast filling speed: 100pcs/min (depends on the filling volume and working mode)
3. High filling accuracy: filling error ±1g
4. Multiple filling modes: automatic,manual,feet pedal,fixed point
5. One key reversal and water cleaning system
6. Suitable for cream liquid and high viscosity products
7. Food grade.
Daily chemicals: Shampoo,liquid soap, toothpaste,oil
Coatings: Paint, ink, resin
Food: Chocolate, syrup, cream, mayonnaise,fruit jam
Cosmetics: Face cream,lotion,essential oil, hair spray
Pha: Syrups, extracts, emulsions, drug slurries et
Filling range | 5-5000ml |
Filling accuracy | ≤±1% |
Hopper size | 40L |
Working speed | 10-60bottles/min(based on 250ml jam) |
Suitable bottle diameter | 10-180mm(customized) |
Suitable bottle height | 30-220mm(customized) |
Machine size | About 220*80*120CM |
Machine weight | About 150kg |

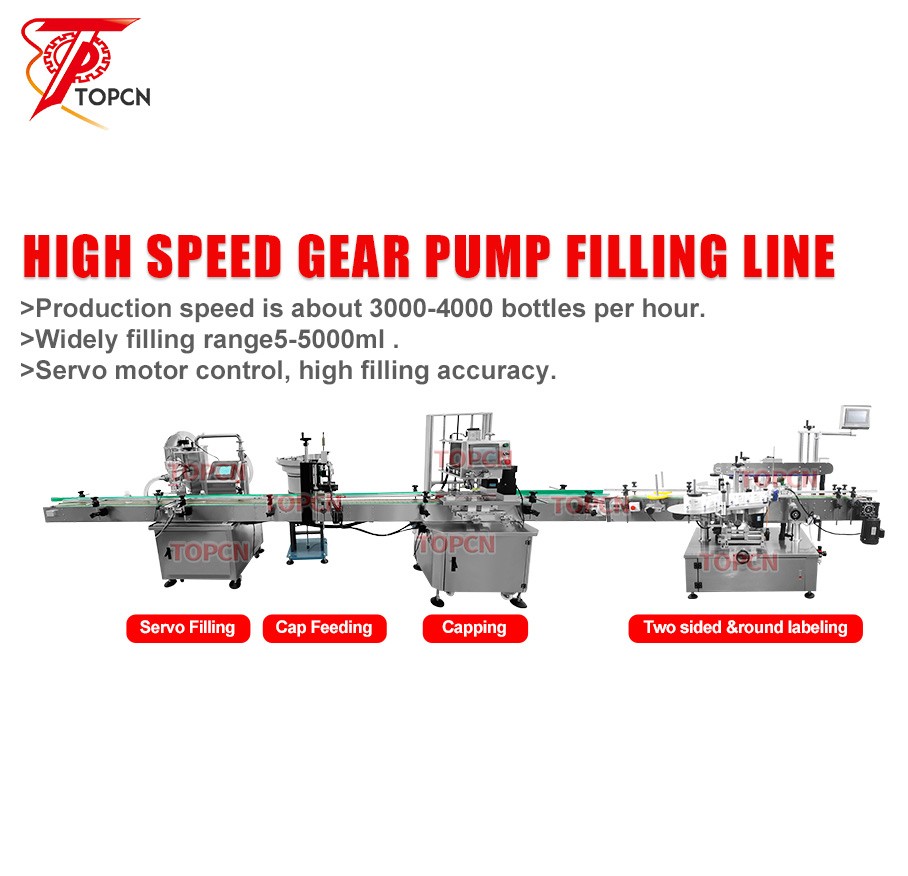

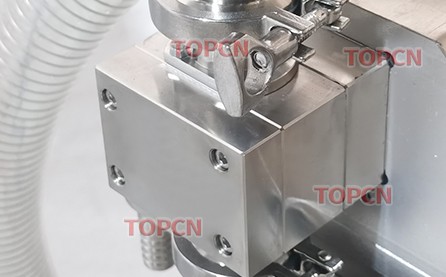

Gear pump type filling machine, suitable for viscosity products, such as cosmetic cream, paste, mayonnaise, dressing, chocolate sauce,glue etc.

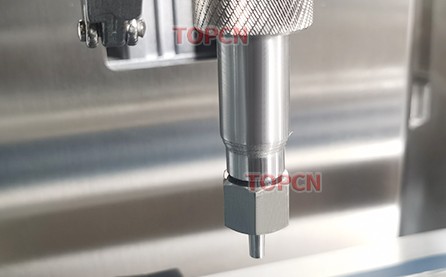

With pneumatic anti-proof filling nozzles, which size according to your product and filling range

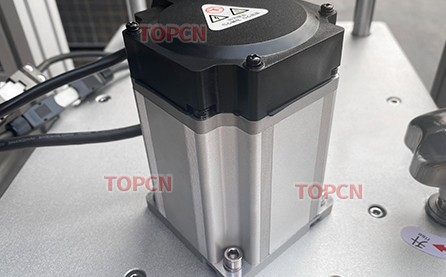

Capping machine optional, which is drived by servo motor. Capping speed reach 50-60 bottles per min.

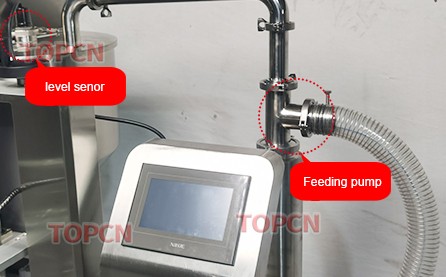

Level sensor auto detected level,when there is not enough material in the hopper, feeding pump will automatic feeding material into hopper.

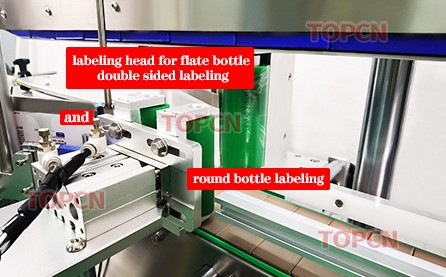

Labeling machine is not only suitable for flat bottles,it is also suitable for round bottles.It can realize single side or double side labeling by replacing the round bottle labeling structure. 1 and 2 labeling head for flat bottle double sided labeling 3 round bottle labeling
Upgrade machine frame

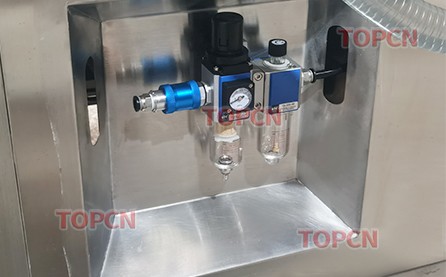

Special design machine structure, protect air filter not easy broken during transportation
