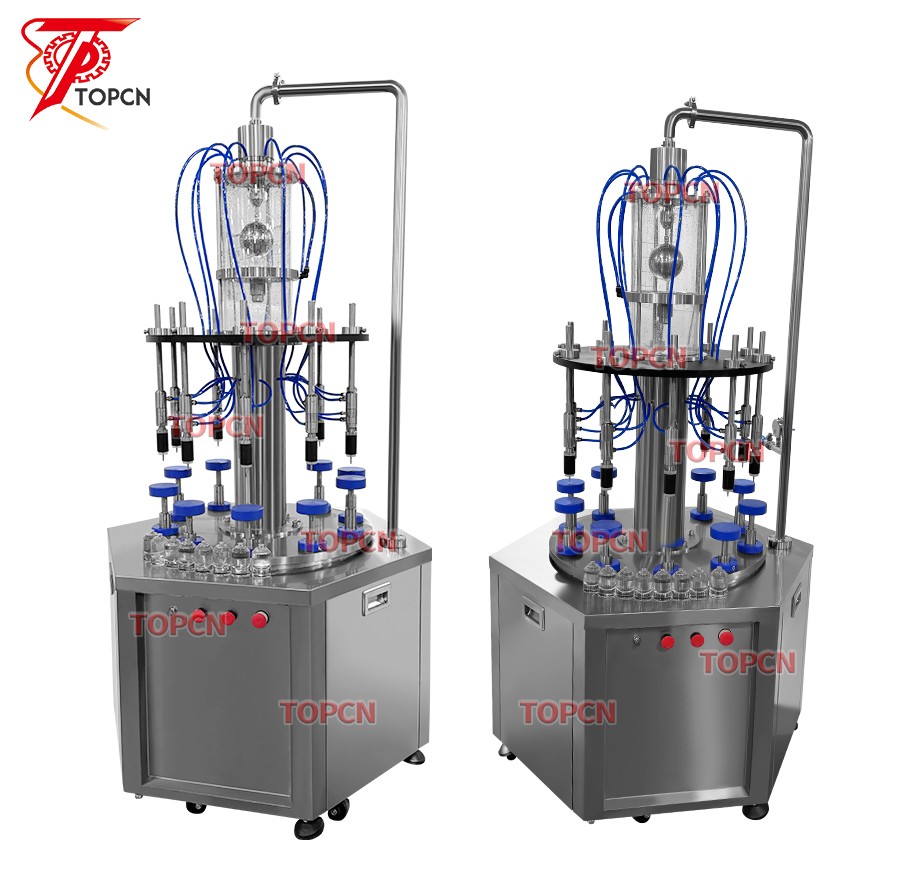

1. Perfume Filling Machine is used for filling floral water, perfume and other water-based materials.

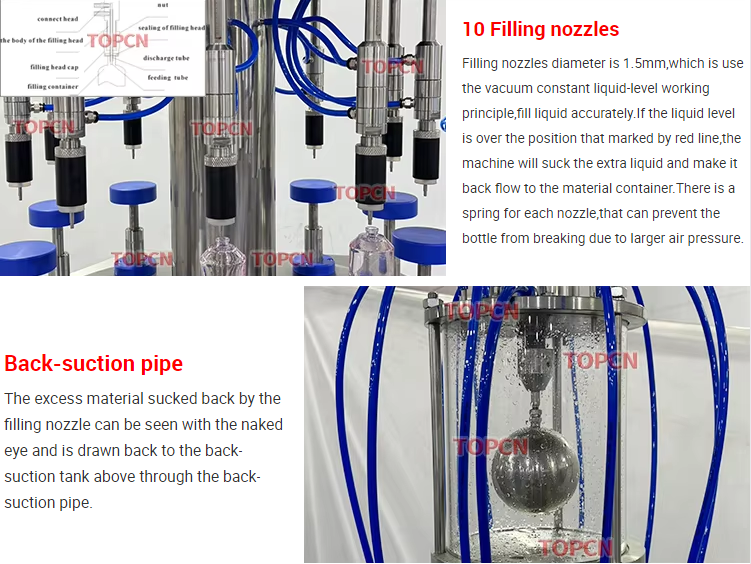

2. This machine adopts vacuum type filling and fixed liquid level type filling, thus avoiding the different levels caused by the thickness of each container bottom.

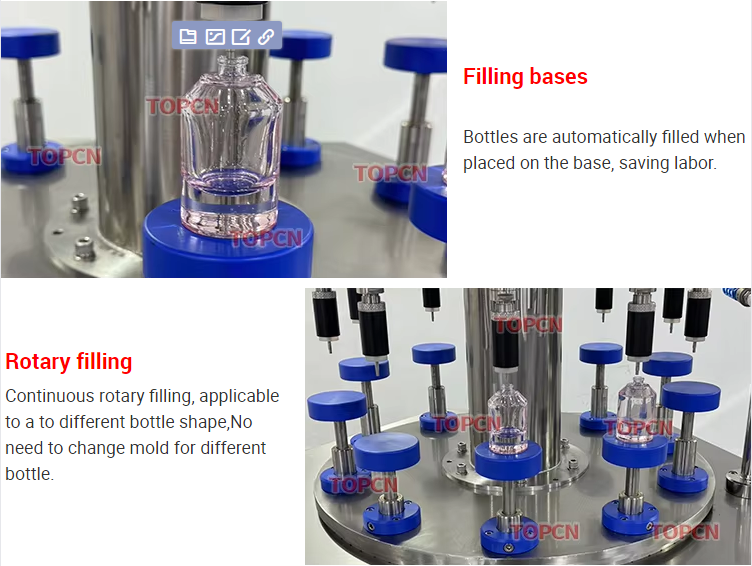

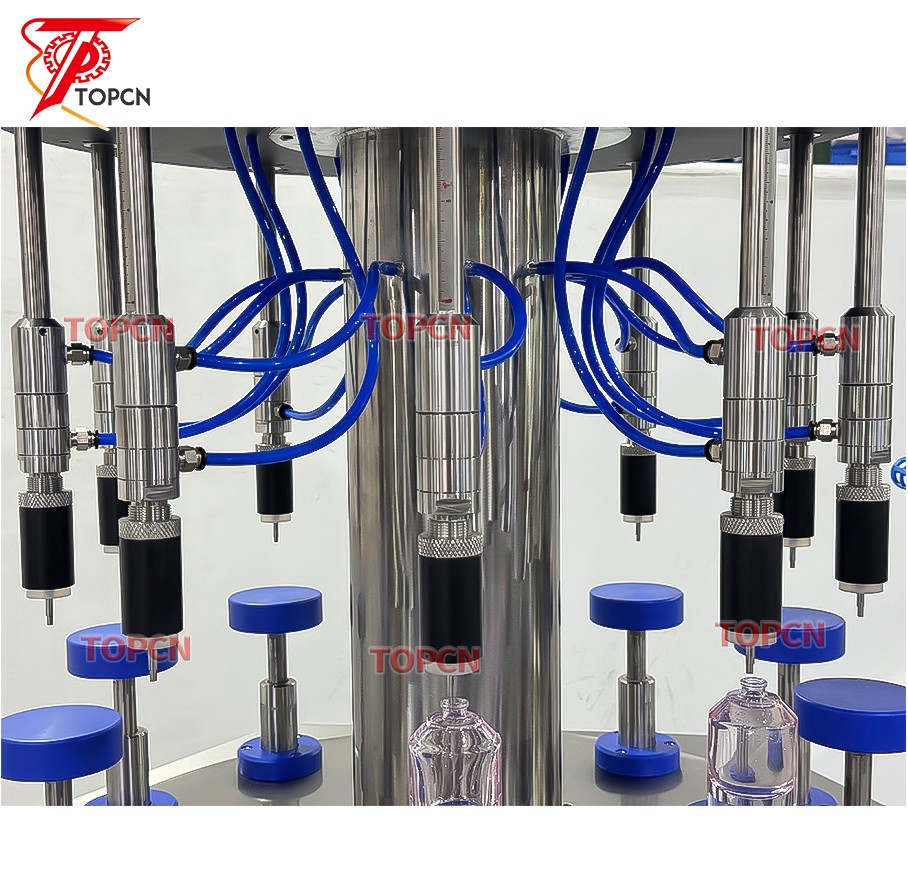

3. The machine is with 10 heads filling, and rotary type filling, which has speeded up and meanwhile saved a lot of spaces.

4. The vacuum perfume filling machine also is equipped with a recycle system, which saves a lot of time and labor tensity.

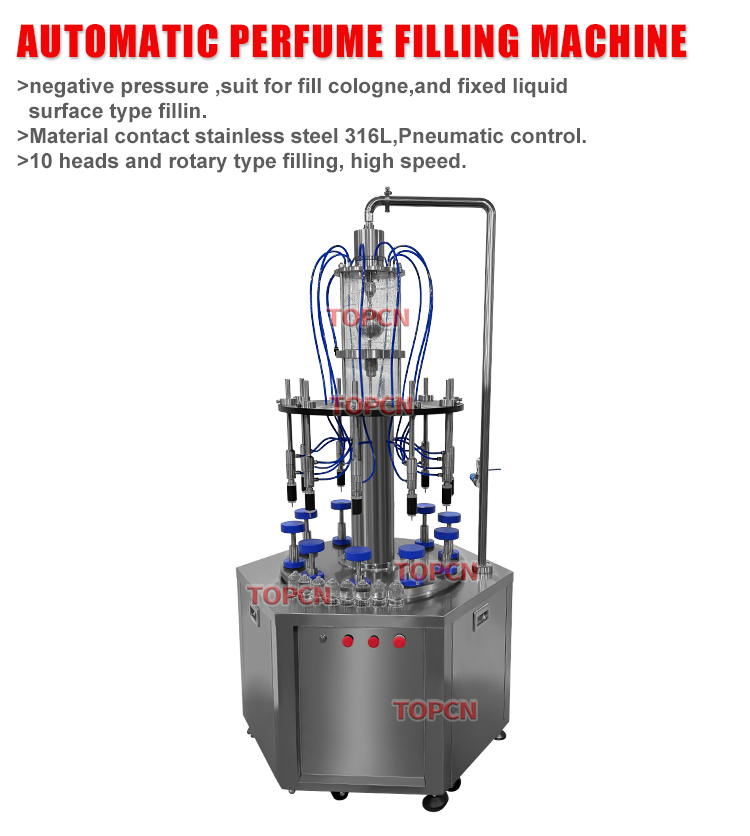

5. Negative pressure suction fluid filling,product filling quantity to liquid level height is the metering method Equipment with casters,convenient to move

6. The contact part adopt 316L stainless steel,table with SS 304.

7. Suitable for glass bottle and the plastic bottle which will not easy out of shape after vacuum.


Capacity

40-50 bpm

Filling accuracy

±1%

Filling nozzle

10pcs

Control

Fully pneumatic

Bottle height

≤200mm

Applicable bottle mouth diameter

10mm≤25mm

Adapt to ambient temperature

0∽30℃

Air source

0.4-0.7Mpa

Machine size

90*106*200cm

N.W

200Kg
